EGO BC3800E - Brushcutter (Version B) Main Assy Diagram

Name: EGO BC3800E - Brushcutter (Version B) Main Assy Diagram
SKU: bc3800e_brushcutter_version_b_est14181200001x_jan_2022_mai-group
Price: 0.28 GBP
Availability: InStock

Part No. bc3800e_brushcutter_version_b_est14181200001x_jan_2022_mai-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO BC3800E - Brushcutter (Version B) Main Assy Diagram

Description

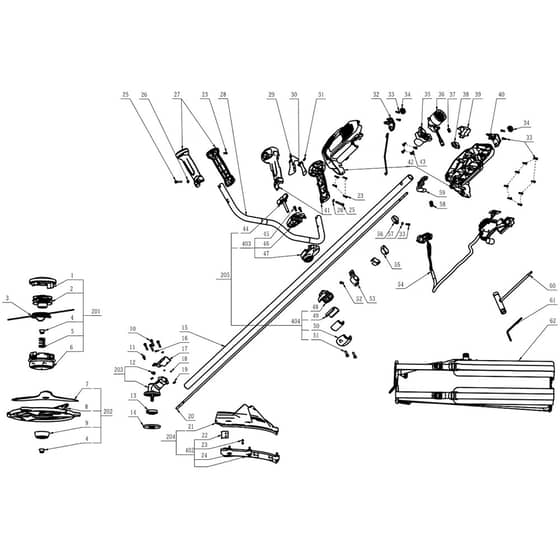

EGO BC3800E Brushcutter (Version B) (EST14181200001X- ) (Jan 2022) Brushcutter Main Assy Parts Diagram

	Part No.	Details
1	EG3130090001 Available to backorder	Upper Housing	£7.43 £6.19
2	EG2826376002 Available to backorder	Spool Assembly	£14.42 £12.02
4	EG5630292001 Available to backorder	Nut	£2.20 £1.83
5	EG3660582001 In stock	Compression Spring	£1.46 £1.22
6	EG2826637001 Available to backorder	Lower Housing Assy	£35.09 £29.24
8	EG2824948002 Available to backorder	Blade Cover	£13.60 £11.33
9	EG3421864001 Available to backorder	Outer Flange	£10.82 £9.02
10	EG5620216003 Available to backorder	Hexagon Socket Screw	£0.34 £0.28
11	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
12	EG5620546001 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
13	EG3552509001 Available to backorder	Inner Flange	£7.22 £6.02
14	EG3706103001 Available to backorder	Shield	£3.00 £2.50
15	EG2825232002 Available to backorder	Tube Assembly	£56.06 £46.72
16	EG5650015012 Available to backorder	Spring Washer	£0.48 £0.40
17	EG3705417001 Available to backorder	Fixing Board	£1.91 £1.59
18	EG5690203001 Available to backorder	O Ring	£0.48 £0.40
19	EG5650598001 Available to backorder	Washer	£0.48 £0.40
20	EG3552666001 Available to backorder	Shaft	£13.50 £11.25
21	EG2824703001 Available to backorder	Guard Assy	£12.86 £10.72
22	EG3706106001 Available to backorder	Blade	£2.53 £2.11
23	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
24	EG5620548001 Available to backorder	Screw With Washer	£0.54 £0.45
25	EG5620584001 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
26	EG5650013006 Available to backorder	Plain Washer	£0.48 £0.40
27	EG2825296001 Available to backorder	Left Handle Assy	£8.23 £6.86
28	EG3706039001 Available to backorder	Connecting Tube	£17.34 £14.45
29	EG3128373001 Available to backorder	Switch Trigger	£1.39 £1.16
30	EG3128372001 Available to backorder	Lock-Off Trigger	£0.82 £0.68
31	EG3660030005 Available to backorder	Spring	£0.48 £0.40
32	EG3128566001 Available to backorder	Left Rear Cover	£1.00 £0.83
33	EG5620479001 Available to backorder	Screw	£0.48 £0.40
34	EG3127738001 Available to backorder	Rubber Gasket	£0.82 £0.68
35	EG2824761002 Available to backorder	Gear Case Assy	£56.21 £46.84
36	EG2824757004 Available to backorder	Motor & Gear Assy	£89.04 £74.20
37	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
38	EG3127202001 Available to backorder	Power Pack Button	£0.62 £0.52
39	EG3127201001 Available to backorder	Release Button	£1.10 £0.92
40	EG3128567001 Available to backorder	Right Rear Cover	£1.00 £0.83
41	EG2825297001 Available to backorder	Right Handle Assy	£14.42 £12.02
42	EG2824785001 Available to backorder	L R Housing Set	£32.22 £26.85
43	EG5620050007 Available to backorder	Screw	£0.48 £0.40
44	EG5640237001 Available to backorder	Wing Bolt	£1.63 £1.36
45	EG5620019004 Available to backorder	Hexagon Socket Screw	£0.34 £0.28
46	EG3421812001 Available to backorder	Upper Handle Cover	£9.05 £7.54
47	EG3421811001 Available to backorder	Lower Handle Cover	£10.20 £8.50
48	EG3421813001 Available to backorder	Mounting	£7.61 £6.34
49	EG3128392001 Available to backorder	Rubber Gasket	£1.81 £1.51
50	EG3421810001 Available to backorder	Mounting Cover	£3.26 £2.72
51	EG5620334004 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
52	EG5620018003 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
53	EG2824475001 Available to backorder	Tubing Clip Set	£2.68 £2.23
54	EG2830218001 Available to backorder	Electric Assembly	£98.40 £82.00
55	EG3128375001 Available to backorder	Wire Holder	£0.43 £0.36
56	EG3705178001 Available to backorder	Fixed Ring	£0.58 £0.48
57	EG5650005001 Available to backorder	Plain Washer	£0.48 £0.40
58	EG3660614001 Available to backorder	Compression Spring	£0.54 £0.45
59	EG3128266001 Available to backorder	Lever	£0.85 £0.71
60	EG5680217001 Available to backorder	Wrench	£4.79 £3.99
61	EG5680164001 Available to backorder	Inner Hexagon Spanner	£0.54 £0.45
62	EGAP1500D Available to backorder	Backpack Subassembly	£33.79 £28.16
202	EG2824941002 Available to backorder	Blade Set	£60.12 £50.10
203	EG2824954004 Available to backorder	Gear Case Assy	£51.48 £42.90
204	EG2824957002 Available to backorder	Guard Assy	£26.04 £21.70
205	EG2824573001 Available to backorder	Mounting Assy	£30.04 £25.03
402	EG2824586002 Available to backorder	Lower Guard Assy	£11.65 £9.71
403	EG2824574001 Available to backorder	Handle Cover Assy	£19.96 £16.63
404	EG2824572001 Available to backorder	Mounting Assy	£13.24 £11.03
