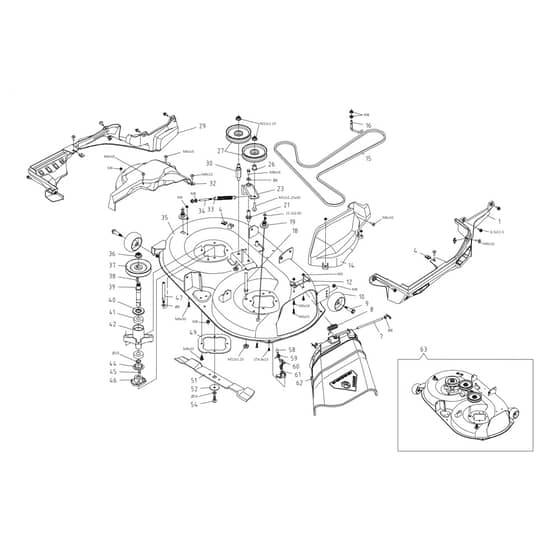

EF 99L/12.5 K M - 2025 - Efco Ride On Mower Mowing Deck Diagram

Name: EF 99L/12.5 K M - 2025 - Efco Ride On Mower Mowing Deck Diagram
SKU: ef_99l_12_5_k_m_2025_mowing_deck-group
Price: 0.62 GBP
Availability: InStock

Part No. ef_99l_12_5_k_m_2025_mowing_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EF 99L/12.5 K M - 2025 - Efco Ride On Mower Mowing Deck Diagram

Description

Efco EF 99L/12.5 K M Parts Diagram

Model Year - 2025

	Part No.	Details
1	EFTS000115R Available to backorder	Right Guard	£9.48 £7.90
4	EFTS000066R Available to backorder	Clamp	£0.86 £0.72
7	EFTS000116R Available to backorder	Pin	£1.15 £0.96
8	EFTS000117R Available to backorder	Spring	£1.32 £1.10
9	EFTS000071R Available to backorder	Screw	£1.61 £1.34
10	EFTS000074R Available to backorder	Wheel	£3.24 £2.70
12	EFTS000118R Available to backorder	Mount	£1.76 £1.47
14	EFTS000119R Available to backorder	Belt Cover	£6.36 £5.30
15	EFTS000123R In stock	Belt	£54.44 £45.37
16	EFTS000420R Available to backorder	Bracket	£1.79 £1.49
18	EFTS000421R Available to backorder	Rod	£2.11 £1.76
19	EFTS000090R Available to backorder	Water Hose Connection	£1.15 £0.96
23	EFTS000423R Available to backorder	Lever	£3.60 £3.00
26	EFTS000122R Available to backorder	Bushing	£1.54 £1.28
27	EFTS000126R Available to backorder	Pulley	£6.96 £5.80
29	EFTS000125R Available to backorder	Guard Sx	£7.56 £6.30
30	EFTS000424R Available to backorder	Shaft	£2.88 £2.40
32	EFTS000128R Available to backorder	Belt Cover	£6.72 £5.60
33	EFTS000130R Available to backorder	Spring	£1.68 £1.40
34	EFTS000065R Available to backorder	Screw	£1.25 £1.04
35	EFTS000425R Available to backorder	Mowing Deck	£79.08 £65.90
36	EFTS000132R Available to backorder	Nut	£1.15 £0.96
37	EFTS000111R Available to backorder	Pulley	£8.04 £6.70
38	EFTS000082R Available to backorder	Key	£0.74 £0.62
39	EFTS000133R Available to backorder	Blade Shaft	£9.00 £7.50
40	EFTS000085R Available to backorder	Disc (Guard)	£1.42 £1.18
41	EFTS000086R Available to backorder	Thrust Bearing	£2.58 £2.15
42	EFTS000134R Available to backorder	Support	£8.64 £7.20
44	EFTS000135R Available to backorder	Guard	£1.15 £0.96
45	EFTS000099R Available to backorder	Key	£1.49 £1.24
46	EFTS000095R In stock	Blade Hub	£11.44 £9.53
47	EFTS000136R Available to backorder	Pin	£1.84 £1.53
49	EFTS000426R Available to backorder	Plate	£4.20 £3.50
51	EFTS000137R Available to backorder	Blade	£28.32 £23.60
52	EFTS000097R Available to backorder	Washer	£1.03 £0.86
54	EFTS000098R Available to backorder	Screw	£1.10 £0.92
58	EFTS000138R Available to backorder	Pin	£0.77 £0.64
59	EFTS000139R Available to backorder	Spring	£0.82 £0.68
60	EFTS000140R Available to backorder	Locking Lever	£1.39 £1.16
61	EFTS000141R Available to backorder	Lever Support	£1.42 £1.18
62	EFTS000142R Available to backorder	Deflector	£12.96 £10.80
63	EFTS000428R Available to backorder	Ts000428	£226.20 £188.50
