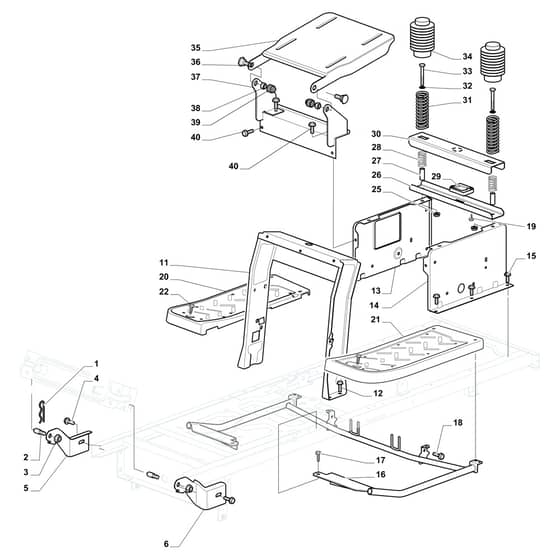

EF 98L/14.5 K H - 2019 - Efco Ride On Mower Frame assembly Diagram

Name: EF 98L/14.5 K H - 2019 - Efco Ride On Mower Frame assembly Diagram
SKU: ef_98l_14_5_k_h_2019_frame_assembly-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EF 98L/14.5 K H - 2019 - Efco Ride On Mower Frame assembly Diagram

Description

Efco EF 98L/14.5 K H Parts Diagram

Model Year - 2019

Be the first to review this product

0 product questions

	Part No.	Details
1	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
2	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
5	MO325547225/0 Available to backorder	Plate	£6.34 £5.28
6	MO325547227/0 Available to backorder	Plate	£6.76 £5.63
11	MO382785169/1 Available to backorder	Column Support	£57.71 £48.09
13	MO325785331/2 Available to backorder	Seat Support	£32.26 £26.88
14	MO325785333/2 Available to backorder	Seat Support	£32.26 £26.88
16	MO382785179/1 Available to backorder	Footboard Support	£63.35 £52.79
18	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
19	MO112728697/0 In stock	Screw	£1.55 £1.29
20	MO325500050/0 Available to backorder	Footrest Pad	£23.52 £19.60
21	MO325500051/1 Available to backorder	Footrest Pad	£24.44 £20.37
25	MO112293201/0 In stock	Nut	£1.69 £1.41
26	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
27	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
