EF 93/16 K - 2022 - Efco Ride On Mower Grassbag Diagram

Name: EF 93/16 K - 2022 - Efco Ride On Mower Grassbag Diagram
SKU: ef_93_16_k_2022_grassbag-group
Price: 1.16 GBP
Availability: InStock

Part No. ef_93_16_k_2022_grassbag-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

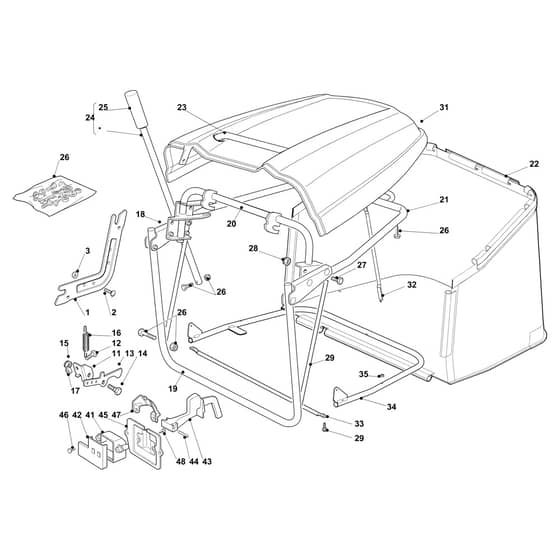

EF 93/16 K - 2022 - Efco Ride On Mower Grassbag Diagram

Description

Efco EF 93/16 K Parts Diagram

Model Year - 2022

	Part No.	Details
1	MO325785275/0 Available to backorder	Support	£11.95 £9.96
2	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
3	MO112293201/0 In stock	Nut	£1.70 £1.42
11	MO325755031/2 Available to backorder	Square	£5.06 £4.22
12	MO112727796/0 Available to backorder	Screw	£1.63 £1.36
13	MO325774315/1 Available to backorder	Bracket	£3.92 £3.27
14	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
16	MO122450432/0 Available to backorder	Spring	£1.97 £1.64
17	MO112154330/0 In stock	Nut	£1.55 £1.29
18	MO382774251/0 Available to backorder	Bracket	£8.00 £6.67
19	MO382800099/0 Available to backorder	Rear Bag Frame	£30.98 £25.82
20	MO382800103/0 Available to backorder	Frame	£78.85 £65.71
21	MO382800101/1 Available to backorder	Frame	£78.06 £65.05
22	MO182105921/0 Available to backorder	Grassbag	£168.91 £140.76
23	MO382394003/0 Available to backorder	Front Handle	£21.12 £17.60
24	MO382869023/0 Available to backorder	Tube	£33.79 £28.16
25	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
26	MO382180138/0 Available to backorder	Screws Kit	£17.60 £14.67
27	MO112815240/0 Available to backorder	Screw	£1.55 £1.29
29	MO325650115/0 Available to backorder	Bracket	£12.67 £10.56
32	MO325033049/1 Available to backorder	Rod	£17.23 £14.36
33	MO382650043/0 Available to backorder	Thickness	£20.77 £17.31
34	MO382800173/0 Available to backorder	Frame	£71.81 £59.84
35	MO112154510/0 In stock	Nut	£1.55 £1.29
41	MO125600041/0 Available to backorder	Guard	£3.90 £3.25
42	MO125600042/0 Available to backorder	Cover	£7.62 £6.35
43	MO125318124/0 Available to backorder	Lever	£1.97 £1.64
44	MO112400030/0 Available to backorder	Pin	£1.84 £1.53
45	MO325785272/1 Available to backorder	Micro Protection	£2.22 £1.85
46	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
47	MO125600048/0 Available to backorder	Protection Cover	£1.55 £1.29
48	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.63 £1.36
