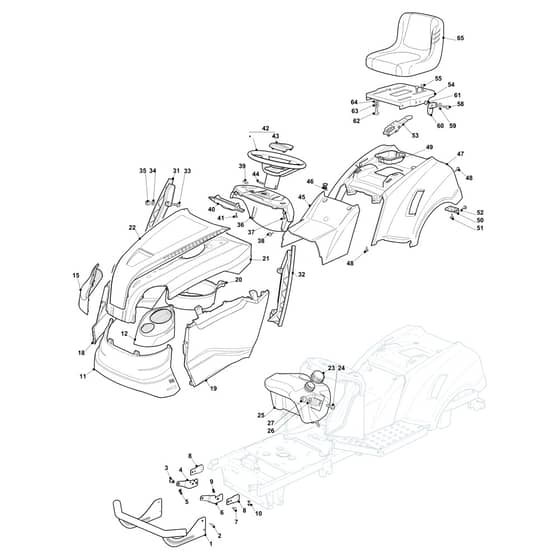

EF 93/16 K - 2021 - Efco Ride On Mower Body Diagram

Description

Efco EF 93/16 K Parts Diagram

Model Year - 2021

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382869027/0 Available to backorder	Muffler Protection	£101.35 £84.46
2	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
3	MO125510023/1 Available to backorder	Pin	£5.10 £4.25
4	MO382774309/0 Available to backorder	Plate Right	£39.04 £32.53
5	MO112436050/0 In stock	Plate	£1.82 £1.52
6	MO382774311/0 Available to backorder	Plate Left	£39.04 £32.53
7	MO112815202/0 Available to backorder	Screw	£1.37 £1.14
8	MO325774691/2 Available to backorder	Bracket	£4.66 £3.88
10	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
20	MO325108102/0 Available to backorder	Conveyor	£10.60 £8.83
23	MO125795000/1 In stock	Cap	£7.74 £6.45
24	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
25	MO325735128/0 Available to backorder	Tank	£67.87 £56.56
26	MO325160039/0 Available to backorder	Spacer	£1.55 £1.29
31	MO325599012/0 Available to backorder	Right Dashboard Support	£7.03 £5.86
32	MO325599013/0 Available to backorder	Left Dashboard Support	£6.90 £5.75
33	MO112815221/0 Available to backorder	Screw	£1.40 £1.17
34	MO112521340/0 Available to backorder	Washer	£1.40 £1.17
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO325120273/0 Available to backorder	Dashboard	£43.21 £36.01
37	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
39	MO125260000/0 Available to backorder	Buffer	£2.95 £2.46
40	MO325600074/0 Available to backorder	Card Protection	£9.16 £7.63
42	MO125961209/1 Available to backorder	Steering Wheel	£45.04 £37.53
43	MO325580501/0 Available to backorder	Cap	£7.62 £6.35
44	MO112620300/0 Available to backorder	Plug	£1.82 £1.52
46	MO125580020/2 In stock	Pin	£8.29 £6.91
48	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
49	MO325207176/0 Available to backorder	Tank	£8.29 £6.91
50	MO325755041/0 Available to backorder	Square	£1.69 £1.41
51	MO112728697/0 In stock	Screw	£1.55 £1.29
52	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
53	MO382318300/1 Available to backorder	Lever	£35.20 £29.33
54	MO325547033/2 Available to backorder	Seat Support	£39.42 £32.85
55	MO112735661/0 Available to backorder	Screw	£1.55 £1.29
58	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
59	MO112523020/0 In stock	Washer	£1.55 £1.29
60	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
61	MO112154330/0 In stock	Nut	£1.55 £1.29
62	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
63	MO112583500/0 Available to backorder	Washer	£1.55 £1.29
64	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
65	MO125722463/0 Available to backorder	Seat	£204.12 £170.10
