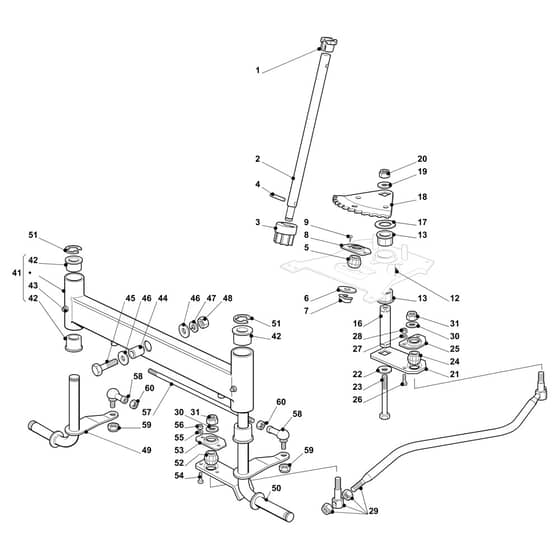

EF 93/16 K - 2019 - Efco Ride On Mower Steering Diagram

Description

Efco EF 93/16 K Parts Diagram

Model Year - 2019

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
2	MO125520006/1 Available to backorder	Steering Arm	£21.34 £17.78
3	MO127570050/0 Available to backorder	Sprocket	£11.12 £9.27
4	MO112622650/0 Available to backorder	Plug	£1.79 £1.49
6	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
7	MO112436030/0 In stock	Plate	£1.84 £1.53
9	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
13	MO325040624/0 In stock	Bushing	£1.70 £1.42
16	MO125510092/0 Available to backorder	Pin	£19.14 £15.95
17	MO125670019/0 Available to backorder	Washer	£3.38 £2.82
18	MO325735513/0 In stock	Sector	£14.22 £11.85
20	MO112155020/0 In stock	Nut	£1.70 £1.42
21	MO325318205/0 Available to backorder	Lever	£5.76 £4.80
22	MO112523080/0 In stock	Washer	£1.55 £1.29
23	MO112794985/0 Available to backorder	Screw	£4.08 £3.40
29	MO382000539/1 Available to backorder	Steering Rod 15	£57.71 £48.09
30	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
31	MO112155010/0 In stock	Nut	£2.11 £1.76
41	MO382034024/1 Available to backorder	Equalizer With Bush And Lubricator	£175.97 £146.64
42	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
43	MO112379511/0 Available to backorder	Nipple	£1.55 £1.29
44	MO125160016/1 Available to backorder	Spacer	£6.19 £5.16
45	MO112692695/0 Available to backorder	Screw	£1.55 £1.29
46	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
47	MO112587100/0 Available to backorder	Washer	£1.63 £1.36
48	MO112295300/0 Available to backorder	Nut	£1.63 £1.36
49	MO382230363/0 Available to backorder	Right Stub Axle	£77.44 £64.53
50	MO382230365/0 Available to backorder	Left Stub Axle	£78.85 £65.71
51	MO112001000/0 Available to backorder	Ring	£1.84 £1.53
52	MO325743000/0 In stock	Angle Joint	£2.69 £2.24
53	MO325785213/1 Available to backorder	Support	£2.40 £2.00
54	MO112791213/1 In stock	Screw	£1.55 £1.29
55	MO112521340/0 Available to backorder	Washer	£1.46 £1.22
56	MO112154510/0 In stock	Nut	£1.55 £1.29
57	MO125840023/0 Available to backorder	Tie Rod	£14.93 £12.44
58	MO122746609/0 Available to backorder	Angle Joint	£21.82 £18.18
59	MO112156602/0 In stock	Nut	£1.39 £1.16
60	MO112295200/0 In stock	Hexagon Nut M10	£1.39 £1.16
