EF 84/14.5 K H - 2023 - Efco Ride On Mower Starter, carburettor and air filter Diagram

Name: EF 84/14.5 K H - 2023 - Efco Ride On Mower Starter, carburettor and air filter Diagram
SKU: ef_84_14_5_k_h_2023_starter_carburettor_and_air_filter-group
Price: 1.29 GBP
Availability: InStock

Part No. ef_84_14_5_k_h_2023_starter_carburettor_and_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

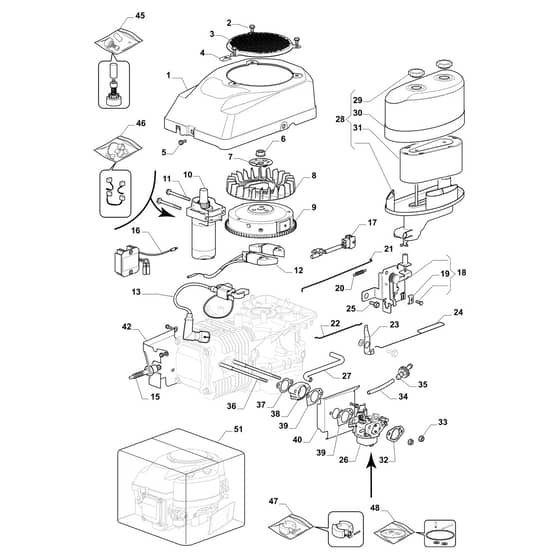

EF 84/14.5 K H - 2023 - Efco Ride On Mower Starter, carburettor and air filter Diagram

Description

Efco EF 84/14.5 K H Parts Diagram

Model Year - 2023

	Part No.	Details
1	MO118551261/0 Available to backorder	Cover	£78.85 £65.71
2	MO112790500/0 Available to backorder	Screw	£1.97 £1.64
3	MO118550203/0 Available to backorder	Fan Cover	£43.63 £36.36
4	MO118551280/0 Available to backorder	Plate	£1.70 £1.42
5	MO112791213/1 In stock	Screw	£1.55 £1.29
6	MO118550237/0 Available to backorder	Nut	£3.38 £2.82
7	MO118550236/0 Available to backorder	Starter Cup	£6.06 £5.05
8	MO118550235/1 Available to backorder	Flywheel Fan	£24.05 £20.04
9	MO118550234/2 Available to backorder	Flywheel Assy	£215.46 £179.55
10	MO118552635/0 Available to backorder	Start Motor Assy	£155.47 £129.56
11	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
12	MO118551441/0 Available to backorder	Coil Assy. Charge	£49.70 £41.42
13	MO118551438/0 In stock	Ignition Coil	£41.74 £34.78
15	3381 In stock	Spark Plug	£4.20 £3.50
16	MO118551428/1 In stock	Governor	£46.34 £38.62
17	MO118551439/0 Available to backorder	Cable	£12.80 £10.67
18	MO118550331/1 Available to backorder	Remote Control Assy	£42.22 £35.18
19	MO118550212/0 Available to backorder	Fairled	£16.13 £13.44
20	MO118550213/0 Available to backorder	Spring	£2.11 £1.76
21	MO118551219/0 Available to backorder	Rod	£5.34 £4.45
22	MO118551218/0 Available to backorder	Rod	£4.78 £3.98
24	MO118551221/0 Available to backorder	Throttle Rod	£2.94 £2.45
26	MO118552604/0 Available to backorder	Carburetor	£85.92 £71.60
27	MO118550225/1 Available to backorder	Breather Fuel Pipe	£8.86 £7.38
28	MO118551516/0 Available to backorder	Air Filter Kit	£39.06 £32.55
29	MO118551407/0 In stock	Knob	£1.55 £1.29
30	MO118550200/0 Available to backorder	Air Filter Cover	£16.75 £13.96
31	MO118550199/0 In stock	Air Filter	£17.36 £14.47
32	MO118550762/0 Available to backorder	Gasket	£5.65 £4.71
33	MO112154510/0 In stock	Nut	£1.55 £1.29
34	MO118550432/0 Available to backorder	Fuel Pipe	£2.82 £2.35
35	MO118550427/0 In stock	Fuel Filer	£5.47 £4.56
36	MO118551279/0 Available to backorder	Stud	£3.79 £3.16
37	MO118551263/0 Available to backorder	Gasket	£1.84 £1.53
38	MO118550220/0 Available to backorder	Insulator	£32.38 £26.98
39	MO118551262/0 Available to backorder	Gasket	£1.84 £1.53
40	MO118551259/0 In stock	Guard	Was £20.84 £17.37 Special Price £13.24 £11.03
45	MO118550365/1 Available to backorder	Repair Kit	£50.69 £42.24
46	MO118550332/1 Available to backorder	Brush	£35.20 £29.33
47	MO118550440/0 Available to backorder	Repair Kit	£10.42 £8.68
48	MO118550442/0 Available to backorder	Carburettor Gasket Set	£15.78 £13.15
