EF 84/14.5 K H - 2018 - Efco Ride On Mower Tank, muffler and guards Diagram

Name: EF 84/14.5 K H - 2018 - Efco Ride On Mower Tank, muffler and guards Diagram
SKU: ef_84_14_5_k_h_2018_tank_muffler_and_guards-group
Price: 1.16 GBP
Availability: InStock

Part No. ef_84_14_5_k_h_2018_tank_muffler_and_guards-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

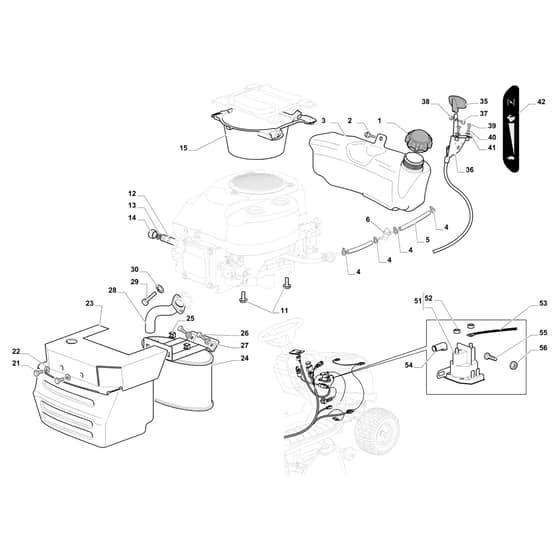

EF 84/14.5 K H - 2018 - Efco Ride On Mower Tank, muffler and guards Diagram

Description

Efco EF 84/14.5 K H Parts Diagram

Model Year - 2018

	Part No.	Details
1	MO125795001/1 In stock	Tank Cap	£7.97 £6.64
2	MO125943010/0 In stock	Screw	£1.97 £1.64
3	MO325735126/1 Available to backorder	Tank	£46.46 £38.72
4	MO118375051/1 Available to backorder	Band	£3.00 £2.50
5	MO325869057/0 Available to backorder	Connecting Tube 1000 mm	£20.56 £17.13
6	MO118566119/0 Available to backorder	Cock	£14.64 £12.20
11	MO112735108/1 In stock	Screw	£2.11 £1.76
12	MO127598060/0 Available to backorder	Extension	£8.18 £6.82
13	MO118401001/1 Available to backorder	Gasket	£1.55 £1.29
14	MO118737849/0 Available to backorder	Cap	£2.53 £2.11
15	MO325108044/1 Available to backorder	Starter Case	£11.12 £9.27
23	MO382598045/0 Available to backorder	Guard	£54.08 £45.07
24	MO182750010/0 Available to backorder	Silencer	£123.89 £103.24
25	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
26	MO112792611/0 In stock	Screw	£1.55 £1.29
28	MO118738231/2 Available to backorder	Exhaust Pipe	£21.30 £17.75
29	MO112737450/0 Available to backorder	Screw	£3.79 £3.16
30	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
35	MO325394531/0 Available to backorder	Knob	£1.84 £1.53
36	MO182000215/0 In stock	Throttle	£19.86 £16.55
38	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
39	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
40	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
41	MO112521310/0 Available to backorder	Washer	£1.39 £1.16
42	MO114363697/0 Available to backorder	Label	£1.55 £1.29
51	MO118736112/0 In stock	Starter Relay	£38.00 £31.67
52	MO112361005/0 Available to backorder	Nut	£4.24 £3.53
53	MO125065002/0 Available to backorder	Cable	£10.50 £8.75
54	MO118564864/1 Available to backorder	Cap	£5.92 £4.93
55	MO112790781/0 In stock	Screw	£1.55 £1.29
56	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
