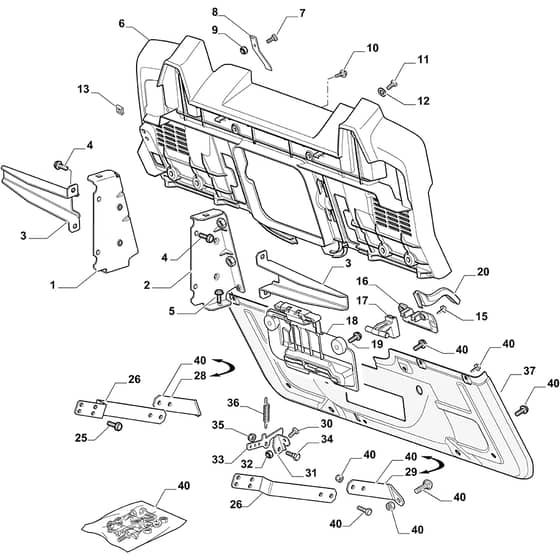

EF 84/14.5 K H - 2017 - Efco Ride On Mower Frame 02 Diagram

Name: EF 84/14.5 K H - 2017 - Efco Ride On Mower Frame 02 Diagram
SKU: ef_84_14_5_k_h_2017_frame_02-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EF 84/14.5 K H - 2017 - Efco Ride On Mower Frame 02 Diagram

Description

Efco EF 84/14.5 K H Parts Diagram

Model Year - 2017

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325774501/0 Available to backorder	Bracket	£12.95 £10.79
2	MO325774507/0 Available to backorder	Bracket	£16.34 £13.62
3	MO325650163/0 Available to backorder	Reinforcement	£11.12 £9.27
5	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
6	MO325547299/2 In stock	Plate	£45.04 £37.53
8	MO127430600/0 Available to backorder	Plate	£2.81 £2.34
12	MO112523020/0 In stock	Washer	£1.55 £1.29
13	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
15	MO112728697/0 In stock	Screw	£1.55 £1.29
16	MO325109522/0 Available to backorder	Cover	£2.40 £2.00
17	MO325318276/0 In stock	Lever	£3.52 £2.93
18	MO325785428/0 Available to backorder	Support	£8.76 £7.30
19	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
20	MO325318277/0 Available to backorder	Lever	£1.55 £1.29
25	MO112793102/0 In stock	Screw	£1.55 £1.29
26	MO325774521/0 Available to backorder	Bracket	£9.28 £7.73
28	MO325650151/0 Available to backorder	Reinforcement	£8.17 £6.81
29	MO325650153/0 Available to backorder	Reinforcement	£8.17 £6.81
30	MO112789021/0 Available to backorder	Screw	£1.82 £1.52
31	MO325755061/0 Available to backorder	Square	£2.40 £2.00
32	MO112154330/0 In stock	Nut	£1.55 £1.29
33	MO325774533/0 Available to backorder	Bracket	£4.66 £3.88
34	MO125510080/2 Available to backorder	Pin	£1.40 £1.17
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO125430282/1 Available to backorder	Spring	£1.82 £1.52
37	MO382547071/1 Available to backorder	Plate	£114.02 £95.02
40	MO382180146/0 Available to backorder	Screw Assembly Kit	£32.51 £27.09
