EF 123/22 V - 2022 - Efco Ride On Mower Mowing Deck Diagram

Name: EF 123/22 V - 2022 - Efco Ride On Mower Mowing Deck Diagram
SKU: ef_123_22_v_2022_mowing_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. ef_123_22_v_2022_mowing_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EF 123/22 V - 2022 - Efco Ride On Mower Mowing Deck Diagram

Description

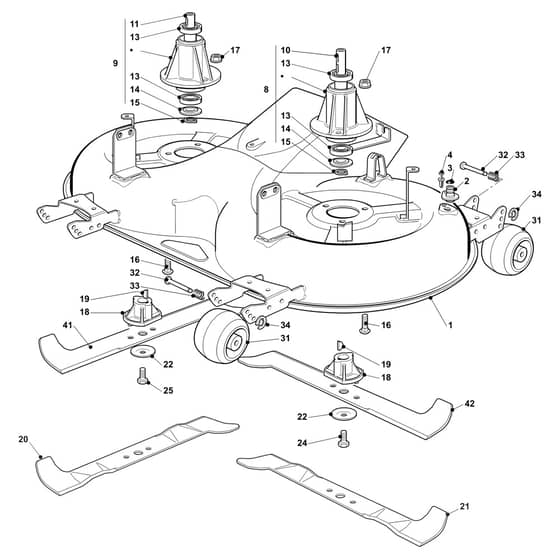

Efco EF 123/22 V Parts Diagram

Model Year - 2022

	Part No.	Details
1	MO382564213/1 Available to backorder	Mowing Deck	£985.84 £821.53
2	MO125033060/0 In stock	Support	£1.55 £1.29
3	MO119035000/0 Available to backorder	O-Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.55 £1.29
8	MO382207200/2LC Available to backorder	Flange	£101.34 £84.45
9	MO382207201/3LC In stock	Flange	£91.50 £76.25
10	MO125020832/0 Available to backorder	Shaft	£39.76 £33.13
11	MO125020833/0 Available to backorder	Shaft	£31.46 £26.22
13	MO119216047/0 In stock	Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Disk	£1.55 £1.29
15	MO112609260/0 In stock	Snap Ring	£1.84 £1.53
16	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
17	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
18	MO125463200/0 In stock	Hub	£9.07 £7.56
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004350/0 Available to backorder	Blade Mulching Right 122	£44.45 £37.04
21	MO182004349/0 Available to backorder	Blade Mulching Left 122	£44.45 £37.04
22	MO125160503/0 In stock	Washer	£3.52 £2.93
24	MO112735696/0 In stock	Screw	£2.66 £2.22
25	MO112735697/1 In stock	Screw	£2.12 £1.77
31	MO182700004/0 In stock	Anti Scalp Wheel Ø 100	£18.88 £15.73
32	MO125510121/1 In stock	Pin	£9.20 £7.67
33	MO122450115/0 In stock	Spring	£1.55 £1.29
34	MO112000930/0 In stock	Washer	£1.55 £1.29
41	MO182004343/0 Available to backorder	Blade No Mulching Right 122	£45.79 £38.16
42	MO182004342/0 Available to backorder	Left Blade 122cm	£45.79 £38.16
