EF 123/22 V - 2020 - Efco Ride On Mower Engine Diagram

Name: EF 123/22 V - 2020 - Efco Ride On Mower Engine Diagram
SKU: ef_123_22_v_2020_engine-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EF 123/22 V - 2020 - Efco Ride On Mower Engine Diagram

Description

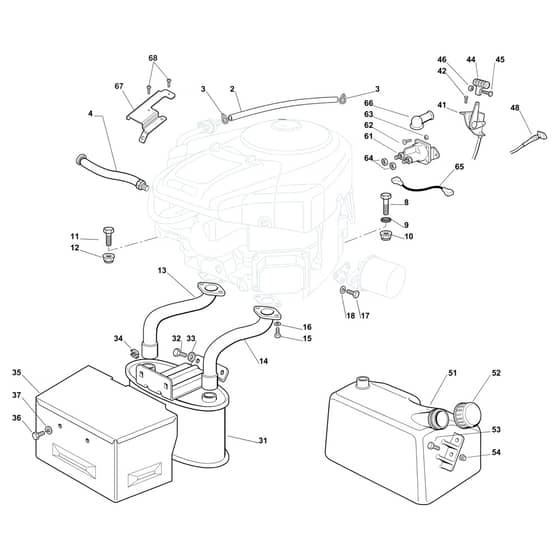

Efco EF 123/22 V Parts Diagram

Model Year - 2020

Be the first to review this product

0 product questions

	Part No.	Details
1	MO119410623/0 Available to backorder	Micro Switch N.C.	£7.62 £6.35
1	MO325869016/1 Available to backorder	Connecting Tube	£8.02 £6.68
3	MO118375051/1 Available to backorder	Band	£3.00 £2.50
4	MO1134-5827-01 Available to backorder	Extension	£39.34 £32.78
8	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
11	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
12	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
13	MO118738282/0 Available to backorder	Tube	£80.94 £67.45
14	MO118738281/0 Available to backorder	Tube	£80.94 £67.45
15	MO112735530/0 Available to backorder	Screw	£1.82 £1.52
17	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
18	MO112582100/0 Available to backorder	Washer	£1.55 £1.29
31	MO182750011/0 Available to backorder	Muffler	£109.79 £91.49
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
34	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
35	MO382598005/2 Available to backorder	Guard	£40.82 £34.02
36	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
37	MO112583500/0 Available to backorder	Washer	£1.55 £1.29
41	MO182000218/0 Available to backorder	Throttle	£30.97 £25.81
42	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
44	MO325592000/1 Available to backorder	Knob	£2.40 £2.00
45	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
46	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
48	MO125090001/2 Available to backorder	Control	£19.36 £16.13
51	MO325735111/3 Available to backorder	Tank	£53.50 £44.58
52	MO125795000/1 In stock	Cap	£7.74 £6.45
53	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
54	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
61	MO118736113/0 In stock	Electric Starter	£38.00 £31.67
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112154510/0 In stock	Nut	£1.55 £1.29
64	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
65	MO125065017/0 Available to backorder	Wiring	£9.43 £7.86
66	MO118564861/2 Available to backorder	Guard	£6.76 £5.63
67	MO325774701/0 Available to backorder	Bracket	£17.60 £14.67
68	MO9943-0516-16 In stock	Self-Tapping Screw M5 X 16	£1.22 £1.02
