EF 109L/16 K - 2024 - Efco Ride On Mower Mowing Deck Diagram

Description

Efco EF 109L/16 K Parts Diagram

Model Year - 2024

	Part No.	Details
1	EFTS000115R Available to backorder	Right Guard	£9.48 £7.90
4	EFTS000066R Available to backorder	Clamp	£0.86 £0.72
7	EFTS000116R Available to backorder	Pin	£1.15 £0.96
8	EFTS000117R Available to backorder	Spring	£1.32 £1.10
9	EFTS000071R Available to backorder	Screw	£1.61 £1.34
10	EFTS000074R Available to backorder	Wheel	£3.24 £2.70
12	EFTS000118R Available to backorder	Mount	£1.76 £1.47
14	EFTS000119R Available to backorder	Belt Cover	£6.36 £5.30
17	EFTS000090R Available to backorder	Water Hose Connection	£1.15 £0.96
21	EFTS000122R Available to backorder	Bushing	£1.54 £1.28
22	EFTS000007R Available to backorder	Pulley	£8.28 £6.90

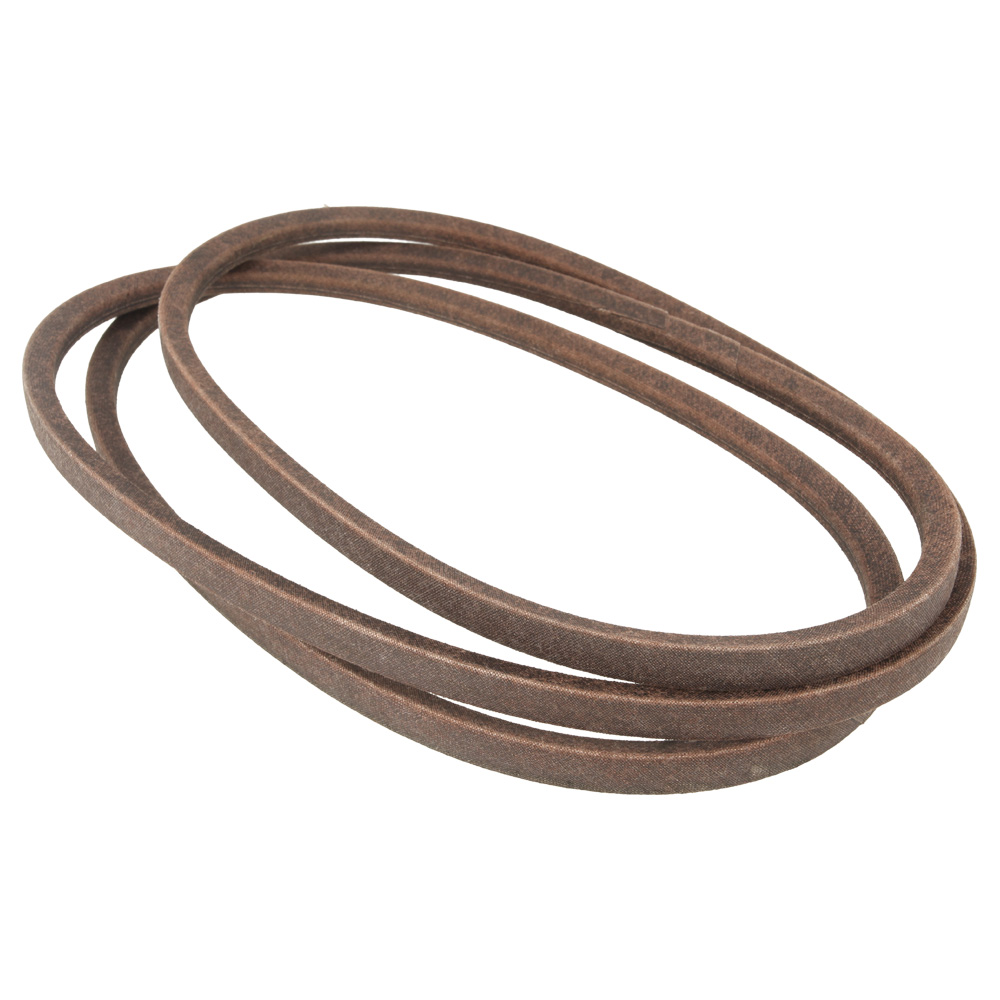

24	EFTS000459R Available to backorder	V Belt	£51.36 £42.80
27	EFTS000125R Available to backorder	Guard Sx	£7.56 £6.30
28	EFTS000126R Available to backorder	Pulley	£6.96 £5.80
32	EFTS000128R Available to backorder	Belt Cover	£6.72 £5.60
35	EFTS000065R Available to backorder	Screw	£1.25 £1.04
41	EFTS000132R Available to backorder	Nut	£1.15 £0.96
42	EFTS000111R Available to backorder	Pulley	£8.04 £6.70
43	EFTS000082R Available to backorder	Key	£0.74 £0.62
44	EFTS000133R Available to backorder	Blade Shaft	£9.00 £7.50
45	EFTS000085R Available to backorder	Disc (Guard)	£1.42 £1.18
46	EFTS000086R Available to backorder	Thrust Bearing	£2.58 £2.15
47	EFTS000134R Available to backorder	Support	£8.64 £7.20
49	EFTS000135R Available to backorder	Guard	£1.15 £0.96
50	EFTS000099R Available to backorder	Key	£1.49 £1.24

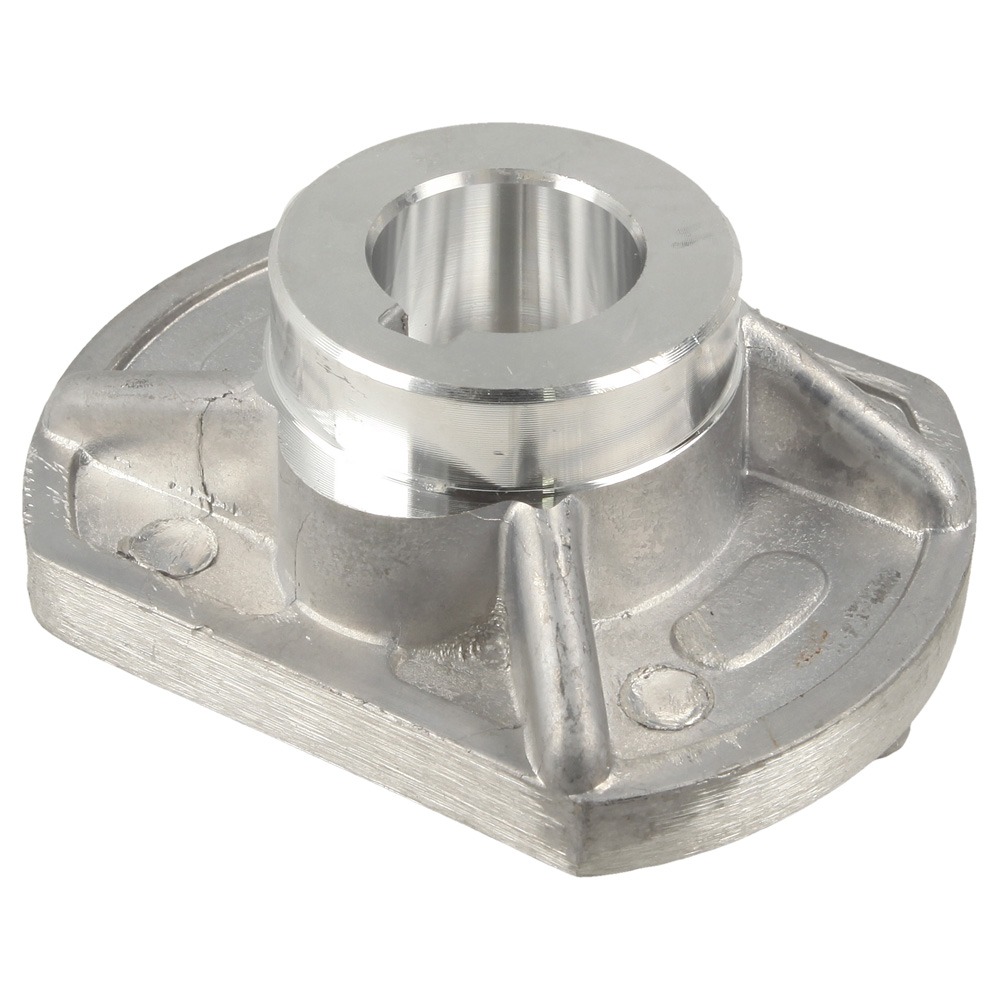

51	EFTS000095R In stock	Blade Hub	£11.44 £9.53
52	EFTS000136R Available to backorder	Pin	£1.84 £1.53
55	EFTS000091R Available to backorder	Plate	£3.12 £2.60

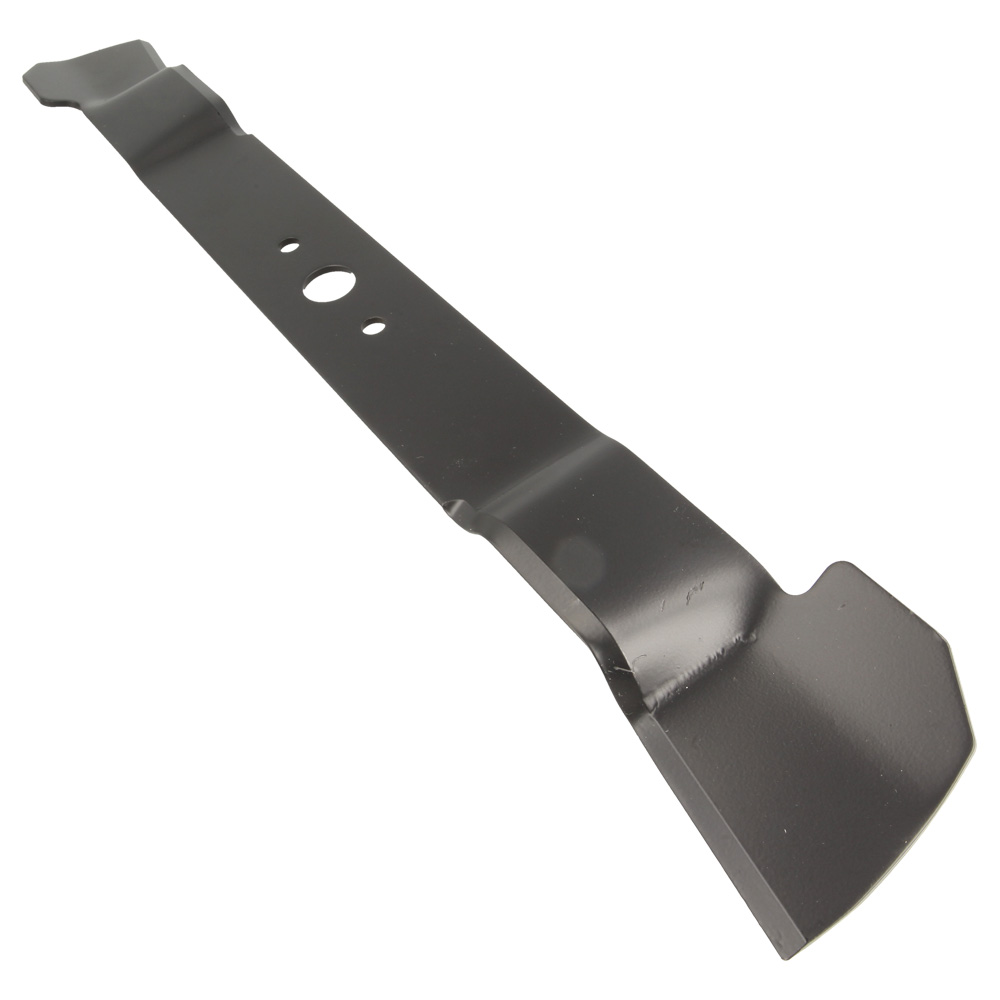

57	EFTS000146R In stock	Blade	£30.34 £25.28
58	EFTS000097R Available to backorder	Washer	£1.03 £0.86
60	EFTS000098R Available to backorder	Screw	£1.10 £0.92
63	EFTS000138R Available to backorder	Pin	£0.77 £0.64
64	EFTS000139R Available to backorder	Spring	£0.82 £0.68
65	EFTS000140R Available to backorder	Locking Lever	£1.39 £1.16
66	EFTS000141R Available to backorder	Lever Support	£1.42 £1.18
67	EFTS000142R Available to backorder	Deflector	£12.96 £10.80
