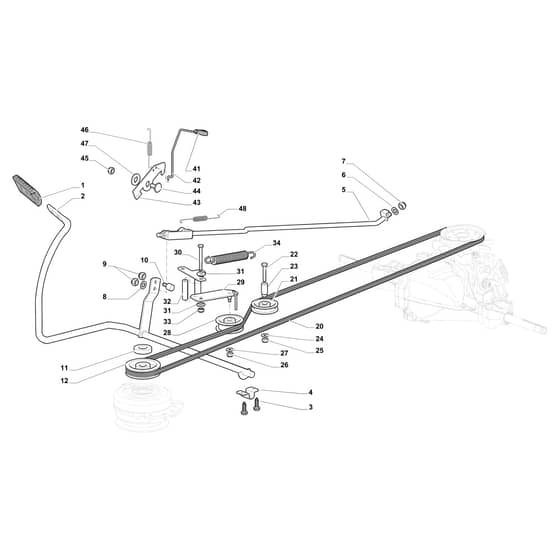

EF 108L/16 K - 2022 - Efco Ride On Mower Brake and Gearbox Controls Diagram

Name: EF 108L/16 K - 2022 - Efco Ride On Mower Brake and Gearbox Controls Diagram
SKU: ef_108l_16_k_2022_brake_and_gearbox_controls-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EF 108L/16 K - 2022 - Efco Ride On Mower Brake and Gearbox Controls Diagram

Description

Efco EF 108L/16 K Parts Diagram

Model Year - 2022

Be the first to review this product

0 product questions

	Part No.	Details
2	MO382000641/1 Available to backorder	Pedal	£52.08 £43.40
1	MO325110409/0 Available to backorder	Cover Moulding	£7.19 £5.99
3	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Plate	£4.37 £3.64
5	MO382000576/0 Available to backorder	Rod	£30.97 £25.81
6	MO112521360/0 In stock	Washer	£1.55 £1.29
7	MO112156602/0 In stock	Nut	£1.40 £1.17
8	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
10	MO125510166/0 Available to backorder	Pin	£3.52 £2.93
11	MO125160059/0 Available to backorder	Spacer	£7.52 £6.27
12	MO125601577/0 Available to backorder	Pulley	£45.04 £37.53
20	MO135062003/1 In stock	Belt	£41.75 £34.79
21	MO125601613/1 Available to backorder	Pulley	£16.99 £14.16
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer	£2.81 £2.34
28	MO125601554/0 In stock	Pulley	£25.68 £21.40
29	MO382318245/1 Available to backorder	Lever	£19.70 £16.42
30	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
31	MO125038021/0 Available to backorder	Bushing	£1.26 £1.05
32	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
34	MO125430262/0 Available to backorder	Spring	£5.76 £4.80
41	MO125394509/1 In stock	Knob	£2.44 £2.03
42	EF68120034 Available to backorder	Knob And Rod Kit	£8.72 £7.27
43	MO325253011/1 Available to backorder	Hook	£3.67 £3.06
44	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
45	MO112155000/0 In stock	Nut	£1.55 £1.29
46	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
47	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
48	MO125430269/2 Available to backorder	Spring	£2.40 £2.00
