EF 108L/16 K - 2021 - Efco Ride On Mower Optional on request Diagram

Description

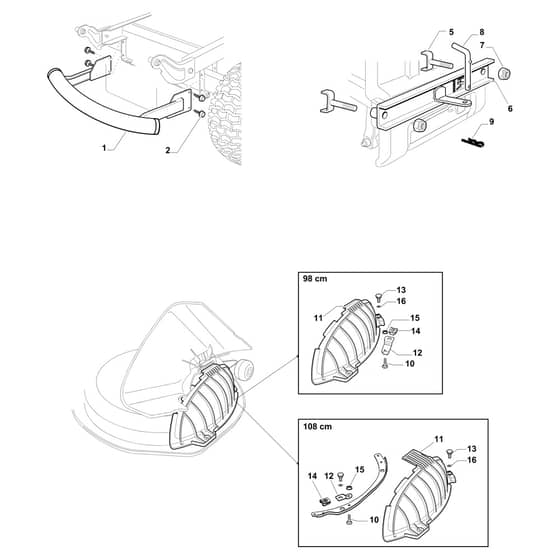

Efco EF 108L/16 K Parts Diagram

Model Year - 2021

	Part No.	Details
1	MO382869038/0 Available to backorder	Guard	£39.42 £32.85
2	MO112735599/0 In stock	Screw	£1.55 £1.29
5	MO382650211/0 Available to backorder	Reinforcement	£5.06 £4.22
6	MO382033111/0 Available to backorder	Bar	£33.79 £28.16
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO125510021/1 In stock	Pin	£11.10 £9.25
9	MO124487999/0 Available to backorder	Cotter Pin	£1.84 £1.53
10	MO112815206/0 In stock	Screw	£1.55 £1.29
11	MO325140107/0 In stock	Deflector	£12.67 £10.56
12	MO325785473/0 Available to backorder	Plate	£2.53 £2.11
14	EF68120043 Available to backorder	Pin Set	£20.64 £17.20
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO112604899/0 In stock	Starlock Washer Rpco 308 D.8	£1.55 £1.29
