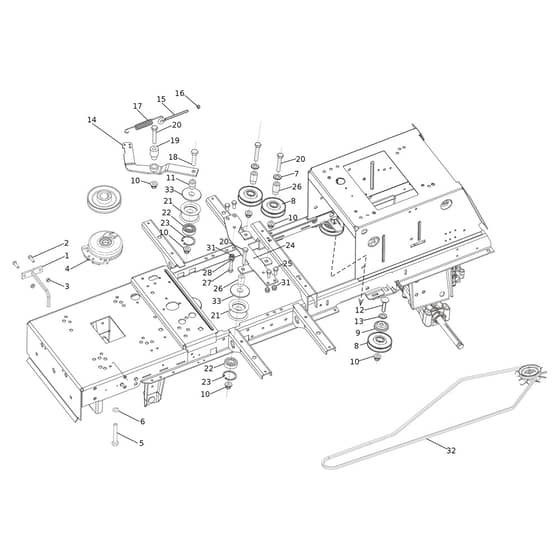

EF 106/16 KH (K1600AVD - EURO5) - 2024 - Efco Ride On Mower Clutch pulley Diagram

Name: EF 106/16 KH (K1600AVD - EURO5) - 2024 - Efco Ride On Mower Clutch pulley Diagram
SKU: ef_106_16_kh_k1600avd_euro5_2024_clutch_pulley-group
Price: 0.64 GBP
Availability: InStock

Part No. ef_106_16_kh_k1600avd_euro5_2024_clutch_pulley-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EF 106/16 KH (K1600AVD - EURO5) - 2024 - Efco Ride On Mower Clutch pulley Diagram

Description

Efco EF 106/16 KH (K1600AVD - EURO5) Parts Diagram

Model Year - 2024

	Part No.	Details
2	EFSGN309503548 Available to backorder	Screw Solo per kit frizione . Only for clutch kit. P.N SGS532986022133R	£1.08 £0.90
4	EFSGN532151196 Available to backorder	Complete Clutch	£302.69 £252.24
7	EFSGN311210504 Available to backorder	Washer	£1.08 £0.90
8	EFSGN532150824 Available to backorder	Pulley	£24.36 £20.30
9	EFSGN532151119 Available to backorder	Guard	£4.56 £3.80
10	EFSGN311129523 Available to backorder	Nut	£0.86 £0.72
13	EFSGN311210505 Available to backorder	Washer	£1.08 £0.90
15	EFSGN309578523 Available to backorder	Screw	£3.96 £3.30
16	EFSGN311129513 Available to backorder	Self-Locking Nut	£1.08 £0.90
21	EFSGN532151361 In stock	Pulley	Was £31.90 £26.58 Special Price £22.97 £19.14
22	EFSGN324162098 Available to backorder	Bearing	£14.88 £12.40
23	EFSGN311733079 Available to backorder	Retainer Washer	£0.77 £0.64
25	EFSGN309503518 Available to backorder	Screw	£1.08 £0.90
31	EFSGN311129501 Available to backorder	Nut	£1.08 £0.90
32	EFSGN272731256 Available to backorder	Belt	£92.40 £77.00
