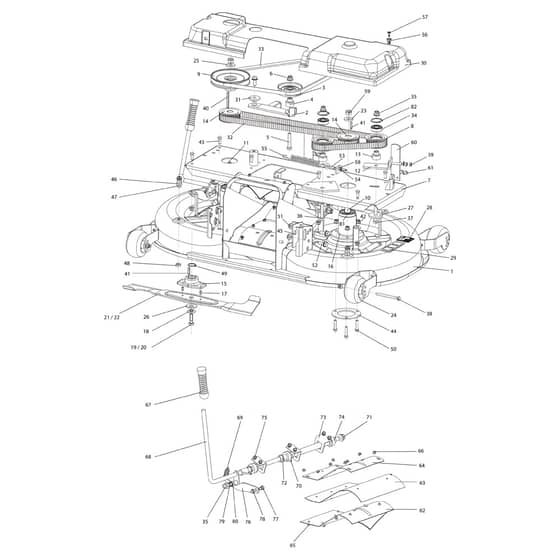

EF 106/16 KH (K1600AVD - EURO5) - 2019 - Efco Ride On Mower Mowing Deck Diagram

Name: EF 106/16 KH (K1600AVD - EURO5) - 2019 - Efco Ride On Mower Mowing Deck Diagram
SKU: ef_106_16_kh_k1600avd_euro5_2019_mowing_deck-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EF 106/16 KH (K1600AVD - EURO5) - 2019 - Efco Ride On Mower Mowing Deck Diagram

Description

Efco EF 106/16 KH (K1600AVD - EURO5) Parts Diagram

Model Year - 2019

Be the first to review this product

0 product questions

	Part No.	Details
2	EFSGS532913424393 Available to backorder	Support	£55.38 £46.15
3	EFsgn532150784 Available to backorder	Compensator	£22.54 £18.78
8	EFSGN532150836 Available to backorder	Pulley	£71.12 £59.27
9	EFSGN532150165 Available to backorder	Pulley	£77.24 £64.37
10	EFSGS532038128023 Available to backorder	Shaft	£109.18 £90.98
11	EFSGS532038128033 Available to backorder	Shaft	£56.96 £47.47
13	EFSGS532094212013 Available to backorder	Spacer	£15.12 £12.60
14	EFSGN532150860 Available to backorder	Pulley	£56.14 £46.78
15	EFSGS532098212403 Available to backorder	Flange	£56.54 £47.12
16	EFSGS532038523833 Available to backorder	Hub	£107.96 £89.97
18	EFSGS532092207493 Available to backorder	Washer	£4.31 £3.59
19	EFSGN309599008 Available to backorder	Screw	£9.54 £7.95
20	EFSGN309599017 Available to backorder	Screw	£5.94 £4.95
21	EFSGS532050422103 Available to backorder	Blade Left	£44.42 £37.02
22	EFSGS532050422113 Available to backorder	Blade Right	£44.42 £37.02
24	EFSGN532940128 In stock	Cutting Wheel	£18.50 £15.42
25	EFSGS532092207273 Available to backorder	Washer	£0.96 £0.80
26	EFSGN311219503 Available to backorder	Washer	£5.84 £4.87
28	EFSGN283292437 Available to backorder	Label	£2.76 £2.30
29	EFSGN283292121 Available to backorder	Label	£2.76 £2.30
31	EFSGS532092212293 Available to backorder	Washer	£13.14 £10.95
33	EFSGN272731239 Available to backorder	V Belt	£45.06 £37.55
35	EFSGN311129523 Available to backorder	Nut	£0.72 £0.60
38	EFSGN309501567 Available to backorder	Screw	£1.84 £1.53
40	EFSGN311726086 Available to backorder	Spring	£2.76 £2.30
41	EFSGN311726091 Available to backorder	Spring	£0.90 £0.75
42	EFSGN532150290 Available to backorder	Nut	£0.96 £0.80
43	EFSGN309503518 Available to backorder	Screw	£0.90 £0.75
44	EFSGS532098203373 Available to backorder	Gasket	£24.74 £20.62
46	EFSGN532150533 Available to backorder	Quick Fastener	£15.62 £13.02
47	EFSGN273111057 Available to backorder	Ring	£0.90 £0.75
48	EFSGN311120511 Available to backorder	Nut	£0.90 £0.75
49	EFSGN311733014 Available to backorder	Retainer Washer	£1.84 £1.53
50	EFSGN309503543 Available to backorder	Screw	£0.90 £0.75
51	EFSGN311129522 Available to backorder	Nut	£1.84 £1.53
52	EFSGN309578529 Available to backorder	Screw	£5.44 £4.53
53	EFSGN309578523 Available to backorder	Screw	£3.88 £3.23
55	EFSGN315231193 Available to backorder	Spring	£10.60 £8.83
56	EFSGN532150903 In stock	Bushing	£2.76 £2.30
57	EFSGN532150904 In stock	Stud	£2.76 £2.30
58	EFSGN311212517 Available to backorder	Washer	£0.90 £0.75
59	EFSGN311129505 Available to backorder	Nut	£0.96 £0.80
62	EFSGS532980422523 Available to backorder	Plug	£148.86 £124.05
63	EFSGN273192062 Available to backorder	Shield	£9.50 £7.92
64	EFSGS532113412143 Available to backorder	Support	£45.30 £37.75
66	EFSGN311129524 Available to backorder	Nut	£0.56 £0.47
69	EFSGN315231267 Available to backorder	Spring	£8.70 £7.25
71	EFSGN311129526 Available to backorder	Nut	£0.92 £0.77
72	EFSGN311212507 Available to backorder	Washer	£0.90 £0.75
74	EFSGN722643022 Available to backorder	Bushing	£0.90 £0.75
77	EFSGN309599012 Available to backorder	Screw	£3.68 £3.07
78	EFSGN311129501 Available to backorder	Nut	£0.90 £0.75
81	EFSGN324162099 Available to backorder	Bearing	£13.90 £11.58
82	EFSGN311733079 Available to backorder	Locking Ring	£0.77 £0.64
