EF 103/22 V - 2019 - Efco Ride On Mower Grassbag Diagram

Description

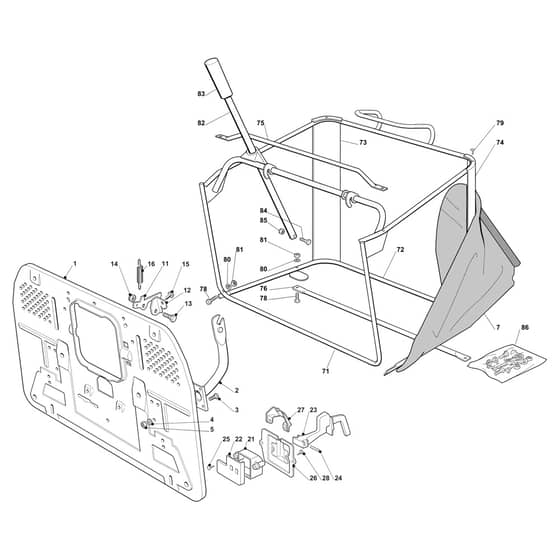

Efco EF 103/22 V Parts Diagram

Model Year - 2019

	Part No.	Details
1	MO325774421/0 Available to backorder	Rear L.H Bracket	£2.69 £2.24
1	MO382547053/1 Available to backorder	Plate	£849.86 £708.22
2	MO182774225/1 Available to backorder	Support	£33.79 £28.16
3	MO112793102/0 In stock	Screw	£1.55 £1.29
4	MO112523060/0 In stock	Washer	£1.55 £1.29
5	MO112293201/0 In stock	Nut	£1.70 £1.42
7	MO182106000/2 Available to backorder	Grassbag	£122.46 £102.05
11	MO325774315/1 Available to backorder	Bracket	£3.92 £3.27
12	MO325755031/2 Available to backorder	Square	£5.06 £4.22
13	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
15	MO112735661/0 Available to backorder	Screw	£1.63 £1.36
16	MO125430210/1 Available to backorder	Spring	£2.82 £2.35
21	MO125600041/0 Available to backorder	Guard	£3.90 £3.25
22	MO125600042/0 Available to backorder	Cover	£7.62 £6.35
23	MO125318124/0 Available to backorder	Lever	£1.97 £1.64
24	MO112400030/0 Available to backorder	Pin	£1.84 £1.53
25	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
26	MO325785272/1 Available to backorder	Micro Protection	£2.22 £1.85
27	MO125600048/0 Available to backorder	Protection Cover	£1.55 £1.29
28	MO112728450/0 In stock	Screw	£1.55 £1.29
71	MO382800051/1 Available to backorder	Frame	£197.09 £164.24
72	MO382800002/2 Available to backorder	Frame	£33.79 £28.16
73	MO325032001/1 Available to backorder	Angle	£15.34 £12.78
74	MO325032002/1 Available to backorder	Angle	£15.34 £12.78
75	MO382394001/2 Available to backorder	Handle	£12.74 £10.62
76	MO382650038/1 Available to backorder	Reinforcement	£12.26 £10.22
79	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
80	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
81	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
82	MO125869029/1 Available to backorder	Tube	£29.57 £24.64
83	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
84	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
85	MO112154510/0 In stock	Nut	£1.55 £1.29
86	MO382180027/1 Available to backorder	Grasscatcher Screw Outfit	£14.23 £11.86
