EF 103/16 K - 2022 - Efco Ride On Mower Optionl on request Diagram

Description

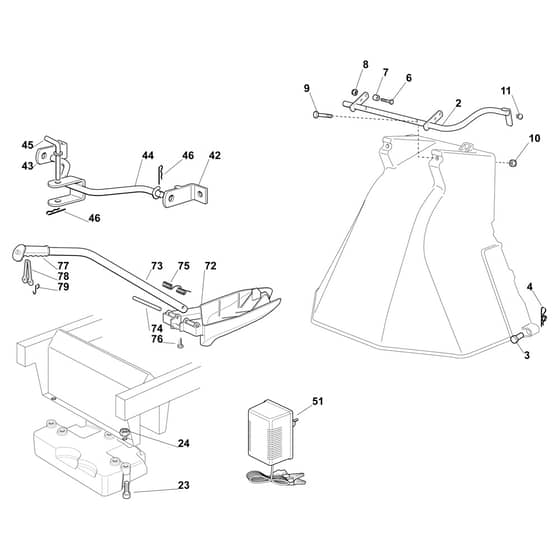

Efco EF 103/16 K Parts Diagram

Model Year - 2022

	Part No.	Details
1	MO382869035/0 Available to backorder	Tube	£39.42 £32.85
3	MO125510022/1 In stock	Pin	£3.10 £2.58
4	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
6	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
7	MO125040629/0 Available to backorder	Bushing Ø20	£6.05 £5.04
7	MO125040628/0 Available to backorder	Bushing Ø 14	£4.78 £3.98
9	MO112689515/0 Available to backorder	Screw	£1.63 £1.36
10	MO112154510/0 In stock	Nut	£1.55 £1.29
11	MO118566112/0 Available to backorder	Cap	£1.55 £1.29
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
42	MO382735502/0 Available to backorder	Bracket	£13.94 £11.62
43	MO325774213/0 Available to backorder	Bracket	£5.65 £4.71
44	MO382033117/0 Available to backorder	Bar	£63.34 £52.78
45	MO125510021/1 In stock	Pin	£11.10 £9.25
46	MO124487999/0 Available to backorder	Cotter Pin	£1.84 £1.53
51	MO1134-9250-01 In stock	Battery Charger	£60.08 £50.07
72	MO125140091/0 Available to backorder	Deflector	£30.98 £25.82
73	MO325394005/0 Available to backorder	Handle	£21.82 £18.18
74	MO125510074/0 Available to backorder	Pin	£2.24 £1.87
75	MO125430240/0 Available to backorder	Spring	£6.05 £5.04
76	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
77	MO325280000/1 In stock	Knob	£3.10 £2.58
78	MO125840011/1 In stock	Tie Rod	£7.18 £5.98
79	MO125253004/0 In stock	Label	£1.55 £1.29
