EF 102R/19 K V - 2025 - Efco Ride On Mower Transmission Diagram

Description

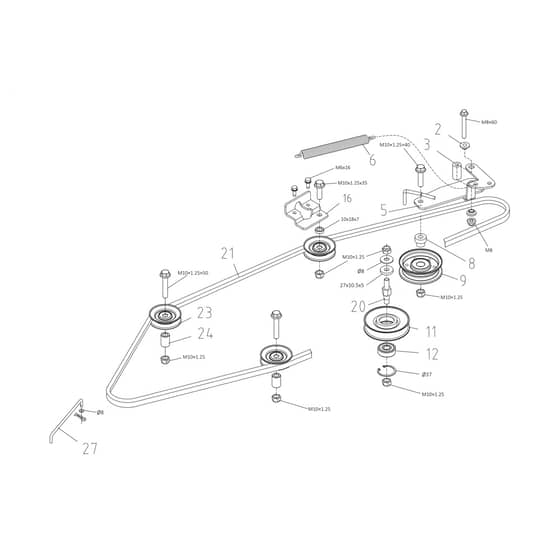

Efco EF 102R/19 K V Parts Diagram

Model Year - 2025

	Part No.	Details
1	EFTS000173R Available to backorder	Bushing	£0.86 £0.72
3	EFTS000253R Available to backorder	Spacer	£1.54 £1.28
5	EFTS000255R Available to backorder	Support	£6.72 £5.60
6	EFTS000130R Available to backorder	Spring	£1.68 £1.40
8	EFTS000122R Available to backorder	Bushing	£1.54 £1.28
9	EFTS000007R Available to backorder	Pulley	£8.28 £6.90
11	EFTS000006R Available to backorder	Pulley	£8.28 £6.90
12	EFTS000005R Available to backorder	Thrust Bearing	£2.82 £2.35
16	EFTS000263R Available to backorder	Plate	£2.11 £1.76
20	EFTS000259R Available to backorder	Screw	£1.92 £1.60
21	EFTS000025R Available to backorder	Belt	£39.48 £32.90
23	EFTS000023R Available to backorder	Pulley	£5.52 £4.60
24	EFTS000260R Available to backorder	Bushing	£1.92 £1.60
27	EFTS000264R Available to backorder	Guide Pulley	£1.32 £1.10
