Snapper ZTX350 2691410-00 Transmission Group

Name: Snapper ZTX350 2691410-00 Transmission Group
SKU: ztx350_2691410_00_transmission_group-group
Price: 1.85 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX350 2691410-00 Transmission Group

Description

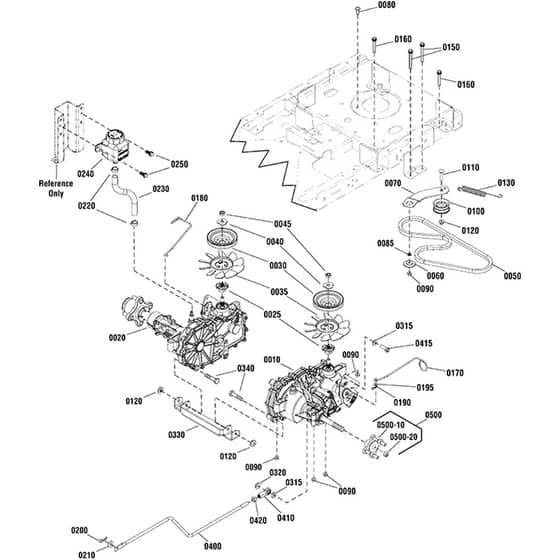

Snapper ZTX350 2691410-00 - Transmission Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	BP1759446YP Available to backorder	Lh	£1,290.19 £1,075.16
20	BP1759445YP Available to backorder	Rh	£898.99 £749.16
25	SN1759450YP Available to backorder	Spacer	£10.14 £8.45
30	SN1759447YP Available to backorder	Transmission Pulley	£26.74 £22.28
35	SN1759448YP Available to backorder	Input Fan	£14.16 £11.80
40	BP5102914YP Available to backorder	Zt5400	£4.00 £3.33
45	SN5102916YP Available to backorder	Zt5400 Nut	£3.91 £3.26
50	SN1758100YP Available to backorder	Belt-Transmission	£62.21 £51.84
60	BP1727935SM Available to backorder	Spacer-Pivot 0.330Id	£5.54 £4.62
70	SN1758044AYP Available to backorder	Idler Arm	£18.11 £15.09
80	BP703800 In stock	Crrg	Was £3.02 £2.52 Special Price £2.22 £1.85
85	SN703297 Available to backorder	Gr5	£2.69 £2.24
90	SN703115 Available to backorder	Nut	£2.83 £2.36
100	SY1668477SM Available to backorder	Idler	£23.89 £19.91
110	SN703879 Available to backorder	Carriage	£3.77 £3.14
120	SY5025394SM Available to backorder	Hex Flange	£3.90 £3.25
130	SN1758045YP Available to backorder	Spring-Extension	£6.02 £5.02
150	BP707943 Available to backorder	Screw	£4.76 £3.97
160	BP707944 Available to backorder	Washer Head	£4.34 £3.62
170	BP1759245YP Available to backorder	Release	£11.70 £9.75
180	BP1759246YP Available to backorder	Release	£11.70 £9.75
190	SN703430 Available to backorder	13X1.19 Pin	£2.75 £2.29
195	BP703332 Available to backorder	Washer	£2.74 £2.28
200	SN703300 Available to backorder	3/32 X 1.6 Pin	£2.83 £2.36
210	SN704128 Available to backorder	Washer	£3.12 £2.60
220	BP5025474SM Available to backorder	Hose .75" Clamp	£3.92 £3.27
230	BP5050857X9SM Available to backorder	1/2" Push-On	£13.58 £11.32
240	BP5100473SM Available to backorder	Hydro Reservoir	£32.00 £26.67
250	SN703054 Available to backorder	1/4-20X0.625 Screw	£2.98 £2.48
315	SN703183 Available to backorder	7/16 Id X.065 Washer	£2.83 £2.36
320	BP1930650SM Available to backorder	Nut-Hex Flange 7/16-1	£4.06 £3.38
330	BP1759172AYP Available to backorder	Front Transmission Support	£63.28 £52.73
340	BP703873 Available to backorder	3/8-16 X 2-1/2" Bolt	£3.44 £2.87
400	BP1757966YP Available to backorder	Control Rod	£36.54 £30.45
410	BP1759799YP Available to backorder	7/16-20 Rh	£27.02 £22.52
415	SN703579 Available to backorder	Hex Head	£4.49 £3.74
420	BP7090460SM Available to backorder	7/16F	£2.46 £2.05
500	BP7600158YP Available to backorder	Hub Replacement Kit	£139.80 £116.50
