Snapper ZTX275 2691712-00 Guarding Group

Name: Snapper ZTX275 2691712-00 Guarding Group
SKU: ztx275_2691712_00_guarding_group-group
Price: 2.36 GBP
Availability: InStock

Part No. ztx275_2691712_00_guarding_group-group

Description

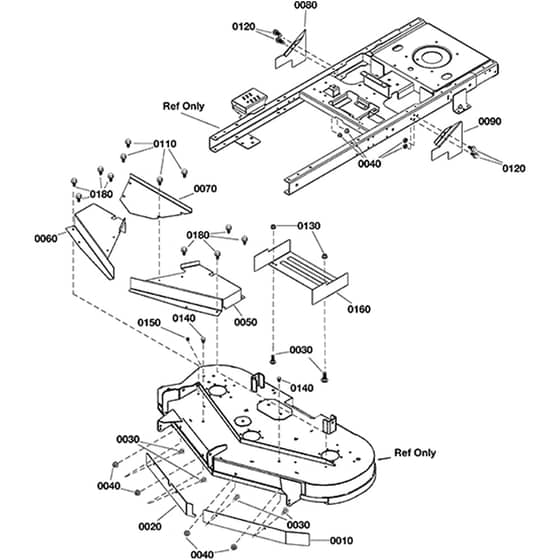

Snapper ZTX275 2691712-00 - Guarding Group - Parts Diagram

	Part No.	Details
10	BP1761085AYP Available to backorder	Trim Side	£45.77 £38.14
20	BP1761086AYP Available to backorder	Discharge	£79.20 £66.00
30	BP703185 Available to backorder	Rhssnb	£3.12 £2.60
40	BP5025127SM Available to backorder	Hex Serrated Flange	£3.48 £2.90
50	SN1761565AYP Available to backorder	Lh Arbor	£121.68 £101.40
60	SN1761564AYP Available to backorder	Rh Arbor	£118.08 £98.40
70	SN1761566AYP Available to backorder	Top Arbor	£52.28 £43.57
90	BP1760076AYP Available to backorder	Belt	£24.91 £20.76
110	SN703949 Available to backorder	5/16-18.625 Screw	£3.30 £2.75
120	SN703410 Available to backorder	5/16-18X1 Bolt	£3.19 £2.66
130	SN703115 Available to backorder	Nut	£2.83 £2.36
140	BP7046780SM Available to backorder	Hole	£3.91 £3.26
150	BP7073293YP Available to backorder	Hole	£3.04 £2.53
160	BP1760077AYP Available to backorder	Rear Deck Belt	£73.68 £61.40
