Snapper ZTX275 2691459-00 Wheel and Tyre Group

Name: Snapper ZTX275 2691459-00 Wheel and Tyre Group
SKU: ztx275_2691459_00_wheel_and_tyre_group-group
Price: 2.36 GBP
Availability: InStock

Part No. ztx275_2691459_00_wheel_and_tyre_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX275 2691459-00 Wheel and Tyre Group

Description

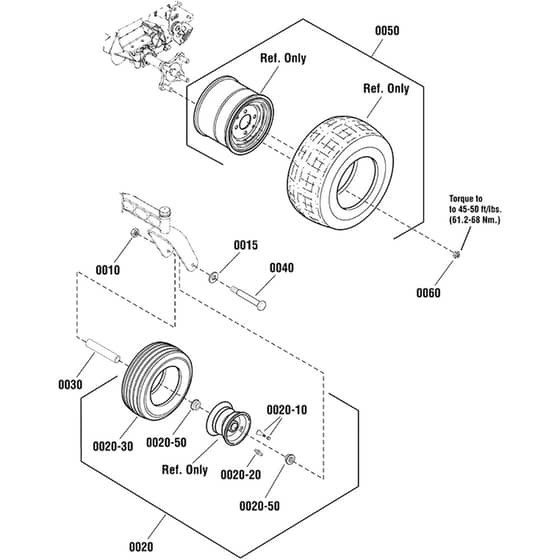

Snapper ZTX275 2691459-00 - Wheel and Tyre Group - Parts Diagram

	Part No.	Details
10	BP1930650SM Available to backorder	Nut-Hex Flange 7/16-1	£4.20 £3.50
15	SN703183 Available to backorder	7/16 Id X.065 Washer	£2.83 £2.36
20	BP1734013SM Available to backorder	Wheel & Tire Assy	£127.80 £106.50
30	SY1734841SM Available to backorder	Spacer - Caster	£11.88 £9.90
40	BP7091772SM Available to backorder	7/16C X6 Gr5 Yz Hhcs	£6.95 £5.79
50	BP1759585YP Available to backorder	Wheel Rear	£305.58 £254.65
50	BP1758079YP Available to backorder	Wheel Rear	£378.16 £315.13
50	BP1759161YP Available to backorder	Wheel & Tire	£327.86 £273.22
60	BP5020601SM Available to backorder	1/2-20	£4.28 £3.57
2020	BP7104428YP Available to backorder	Grease Zerk	£5.29 £4.41
2030	BP1734875SM Available to backorder	11 X 4-5 Tire	£60.24 £50.20
2050	SN1759320YP Available to backorder	0.632Id	£20.21 £16.84
202010	BP024373MA Available to backorder	Valve Stem & Cap	£9.56 £7.97
