Snapper ZTX275 2691459-00 Parking Brake Group

Name: Snapper ZTX275 2691459-00 Parking Brake Group
SKU: ztx275_2691459_00_parking_brake_group-group
Price: 2.24 GBP
Availability: InStock

Part No. ztx275_2691459_00_parking_brake_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX275 2691459-00 Parking Brake Group

Description

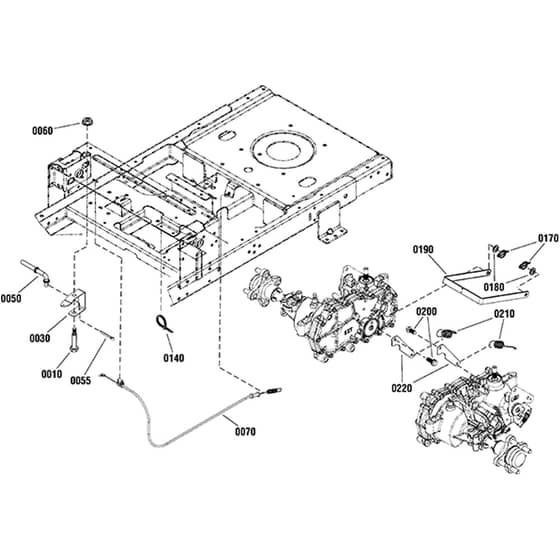

Snapper ZTX275 2691459-00 - Parking Brake Group - Parts Diagram

	Part No.	Details
10	SN1736539YP Available to backorder	Shoulder	£8.77 £7.31
30	SN1758091YP Available to backorder	Parking Brake Bellcrank	£10.57 £8.81
50	BP1758088YP Available to backorder	Parking Brake Rod	£8.69 £7.24
55	SN703312 Available to backorder	Cotter	£2.69 £2.24
60	SN703158 In stock	Hex Flange	£3.19 £2.66
70	SN1759207YP Available to backorder	Parking Brake Cable	£19.20 £16.00
140	BP703586 Available to backorder	Self Locking Tie	£3.64 £3.03
170	BP7091594SM Available to backorder	Cotter	£3.77 £3.14
180	SN703946 Available to backorder	Flat Washer	£2.98 £2.48
190	SN1758126AYP Available to backorder	Parking Brake Arm	£24.26 £20.22
200	BP708964 Available to backorder	Taptite	£3.80 £3.17
210	BP1758283YP Available to backorder	Extension Spring	£4.57 £3.81
220	BP1759349YP Available to backorder	Brake Spring Bracket	£7.32 £6.10
