Snapper ZTX275 2691459-00 Housing, Arbors & Blade Group

Name: Snapper ZTX275 2691459-00 Housing, Arbors & Blade Group
SKU: ztx275_2691459_00_housing_arbors_blade_group-group
Price: 2.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX275 2691459-00 Housing, Arbors & Blade Group

Description

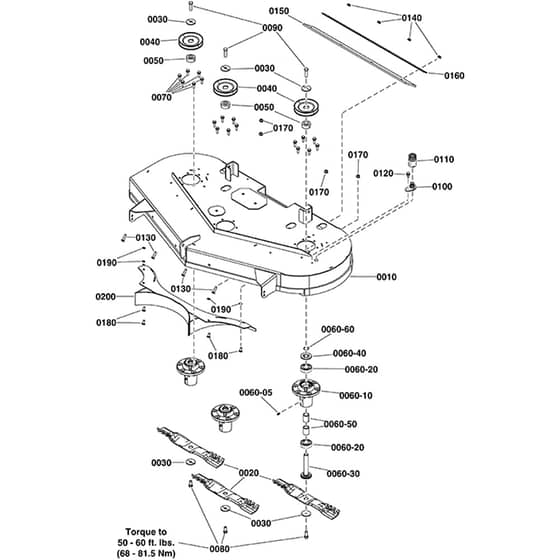

Snapper ZTX275 2691459-00 - Housing, Arbors & Blade Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	BP1687944YP Available to backorder	Mower Deck W/Decals	£2,350.80 £1,959.00
20	BP1760647YP Available to backorder	Mulching Blade	£47.10 £39.25
30	SY1656916SM In stock	Spring 0.475I Washer	£7.32 £6.10
40	SY1732951SM Available to backorder	.68" Deep-Groove Od 4.6" Pulley	£18.68 £15.57
50	SN706362 Available to backorder	Pulley Spacer	£9.12 £7.60
70	SN704146 Available to backorder	Hex	£3.26 £2.72
80	SY1920676SM In stock	Hex Head	Was £5.46 £4.55 Special Price £3.80 £3.17
90	BP1921212SM Available to backorder	Hex Head	£4.00 £3.33
100	SN1756247YP Available to backorder	Washout Port Adapter	£5.26 £4.38
110	SN1756246YP Available to backorder	Washout Port Connector	£6.38 £5.32
120	SN703228 Available to backorder	5/16-18 X .75 Screw	£3.68 £3.07
130	SN703446 Available to backorder	5/16-18X1.25 G5 Bolt	£3.19 £2.66
140	BP5025127SM Available to backorder	Hex Serrated Flange	£3.36 £2.80
150	BP1761251YP Available to backorder	Rubber	£54.96 £45.80
160	BP1761516AYP Available to backorder	Discharge Flap	£32.00 £26.67
170	SN703115 Available to backorder	Nut	£2.83 £2.36
180	BP703185 Available to backorder	Rhssnb	£3.02 £2.52
190	SN703297 Available to backorder	Gr5	£2.69 £2.24
6020	SN1735399YP Available to backorder	Ball	£10.08 £8.40
6030	SN1760276YP Available to backorder	Spindle Shaft	£26.62 £22.18
6040	SN84003166 Available to backorder	Arbor Shield	£7.96 £6.63
6050	BP1735328YP Available to backorder	Bearing Spacer	£4.98 £4.15
6060	SN1960766YP Available to backorder	Self Locking Ring	£4.24 £3.53
196005	BP703907 Available to backorder	.250 Dr Lube Fitting	£3.86 £3.22
196010	SN1760371YP Available to backorder	W/Lube Fitting Housing	£56.34 £46.95
