Snapper ZTX175 2691924-00 Deck and Arbor Group

Name: Snapper ZTX175 2691924-00 Deck and Arbor Group
SKU: ztx175_2691924_00_deck_and_arbor_group-group
Price: 2.24 GBP
Availability: InStock

Part No. ztx175_2691924_00_deck_and_arbor_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX175 2691924-00 Deck and Arbor Group

Description

Snapper ZTX175 2691924-00 - Deck and Arbor Group - Parts Diagram

	Part No.	Details

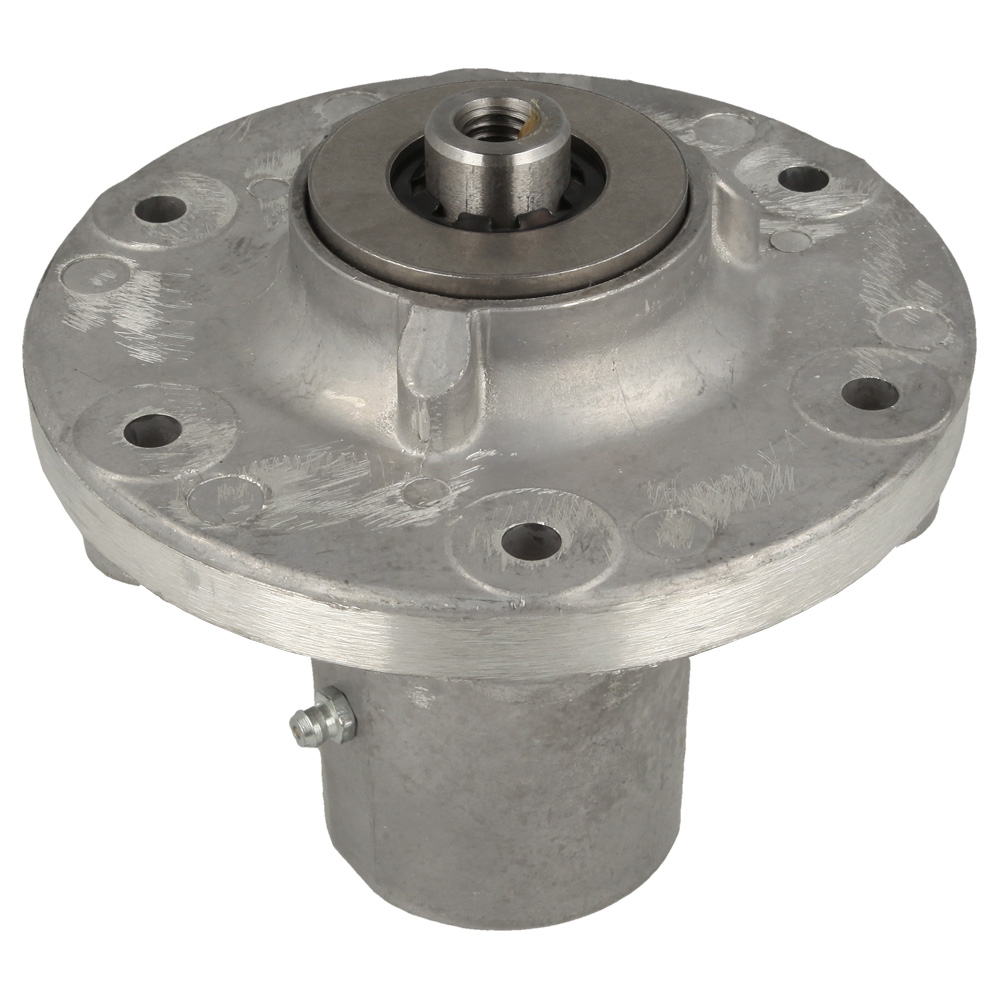

10	BP84003173 Available to backorder	Arbor Assembly	£49.98 £41.65
20	BP1921212SM Available to backorder	Hex Head	£4.14 £3.45
30	SY1656916SM In stock	Spring 0.475I Washer	£7.81 £6.51
40	SN1737835YP Available to backorder	V	£22.39 £18.66
50	SN704146 Available to backorder	Hex	£3.26 £2.72
60	BP1737457YP Available to backorder	Pulley Spacer	£9.49 £7.91

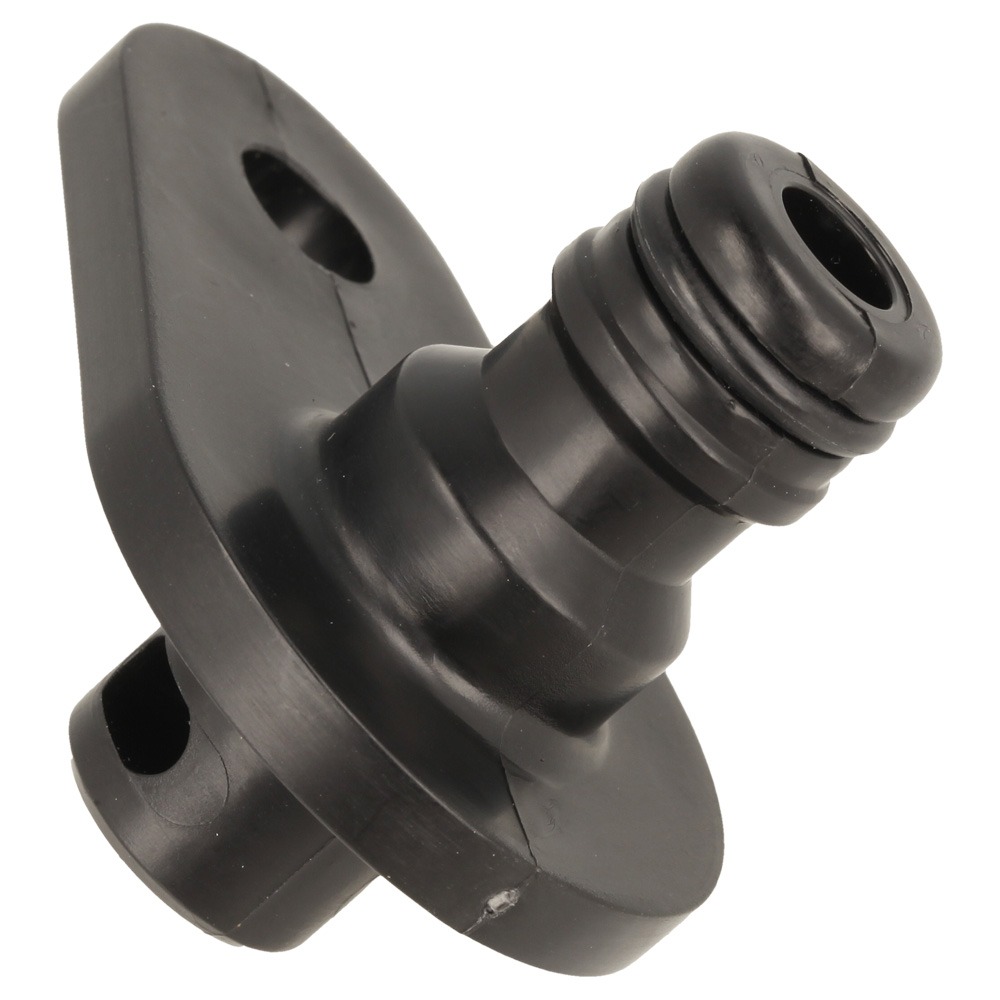

100	SN1756247YP Available to backorder	Washout Port Adapter	£5.44 £4.53

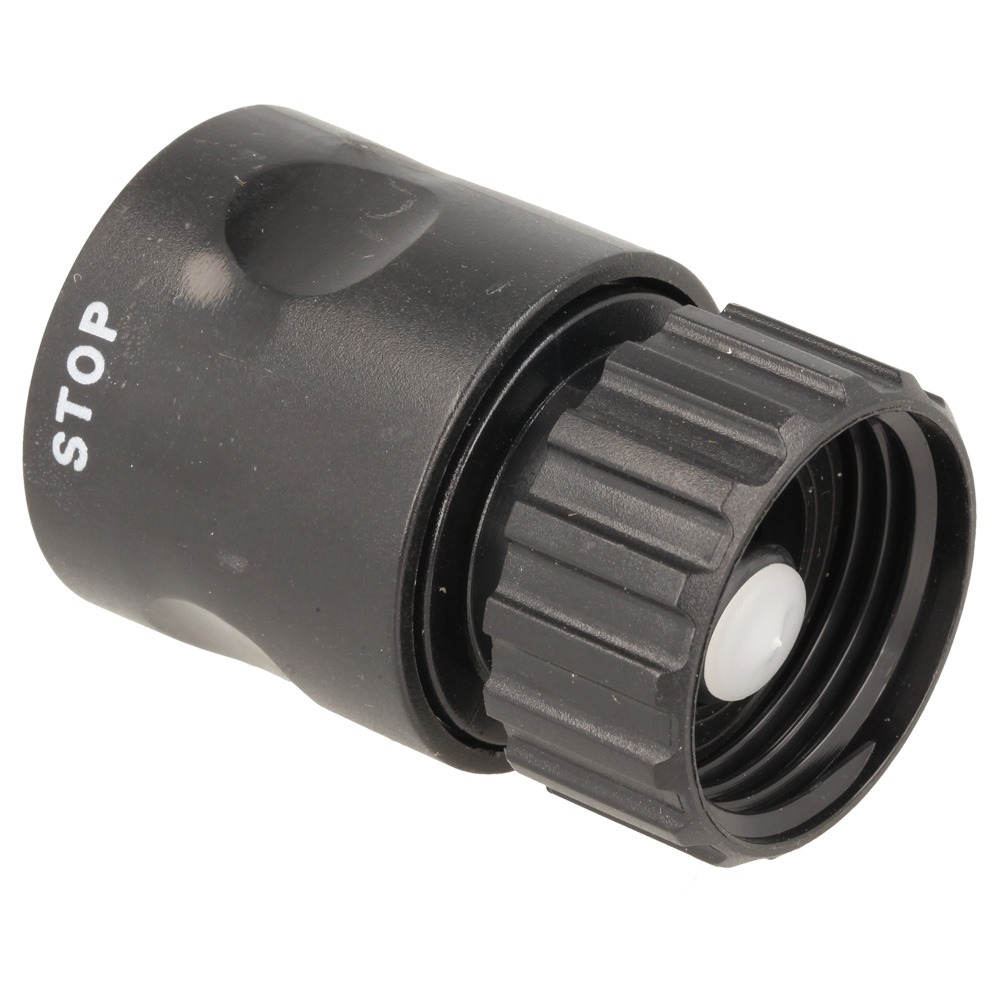

110	SN1756246YP Available to backorder	Washout Port Connector	£6.60 £5.50
130	BP703185 Available to backorder	Rhssnb	£3.12 £2.60
140	SN703297 Available to backorder	Gr5	£2.69 £2.24

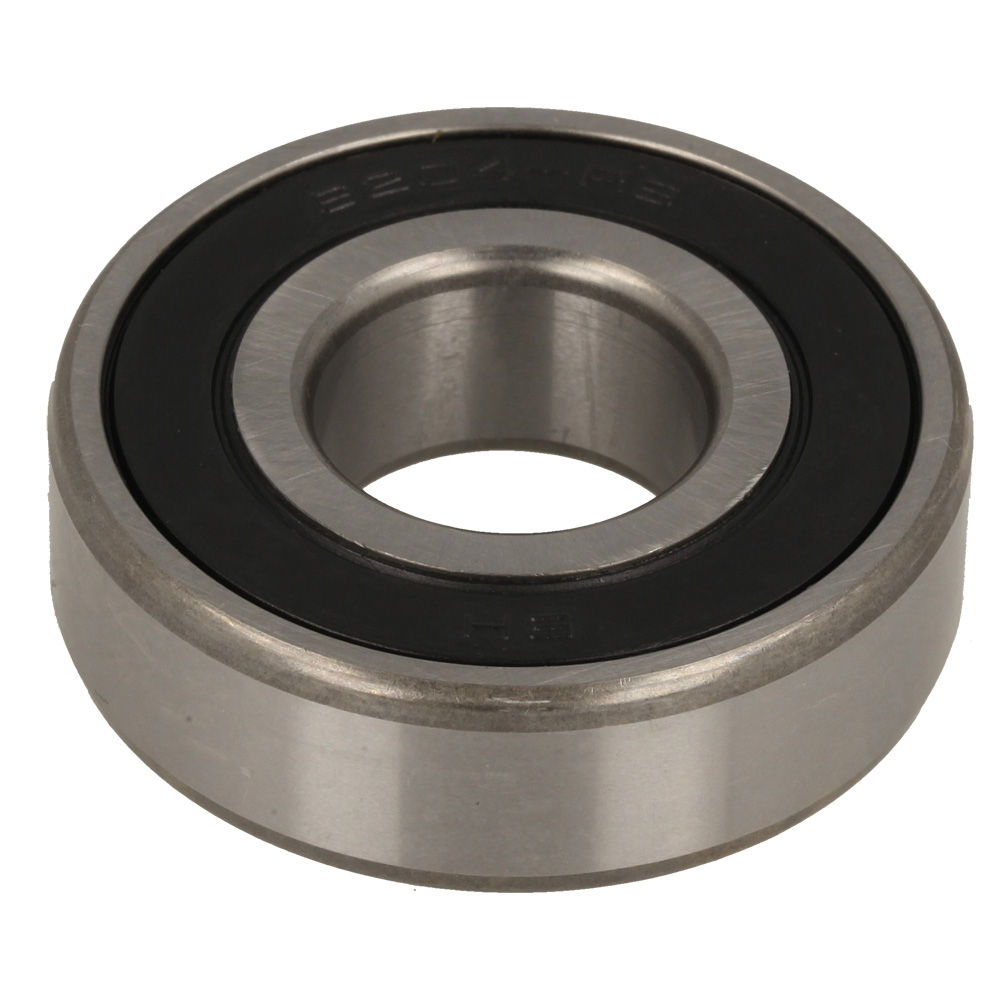

1020	SN1735399YP Available to backorder	Ball	£10.09 £8.41
1030	BP84003170 Available to backorder	Spindle Shaft	£24.48 £20.40

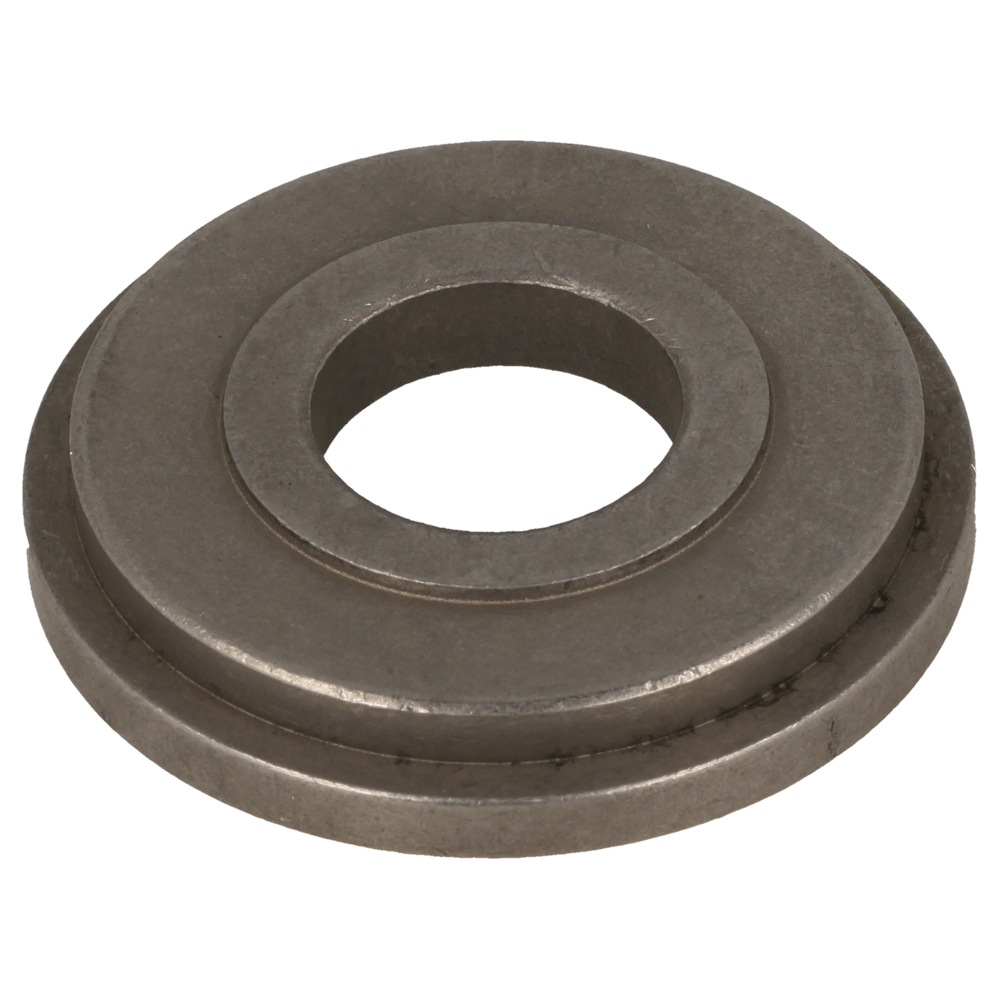

1040	SN84003166 Available to backorder	Arbor Cover	£8.23 £6.86
1050	BP84003167 Available to backorder	Bearing Spacer	£10.08 £8.40

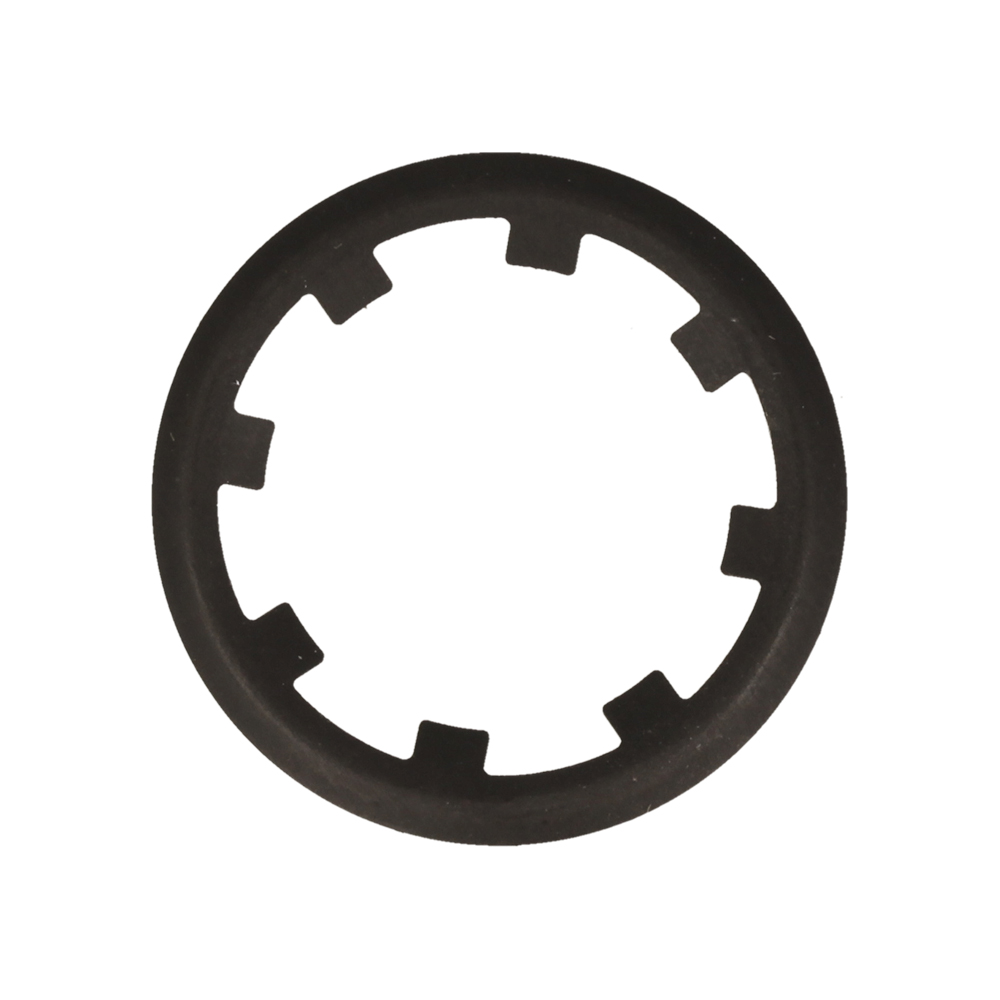

1060	SN1960766YP Available to backorder	Self Locking Ring	£4.03 £3.36
201005	BP703907 Available to backorder	.250 Dr Lube Fitting	£4.00 £3.33
201010	BP84003653 Available to backorder	Housing Assembly	£54.54 £45.45
