Snapper ZTX150 2691351 Frame Group

Name: Snapper ZTX150 2691351 Frame Group
SKU: ztx150_2691351_frame_group-group
Price: 2.29 GBP
Availability: InStock

Part No. ztx150_2691351_frame_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

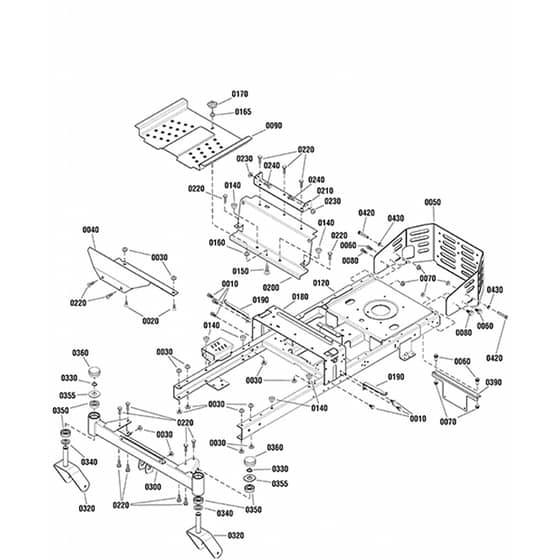

Snapper ZTX150 2691351 - Frame Group - Parts Diagram

	Part No.	Details
10	SN703949 Available to backorder	5/16-18.625 Screw	£3.30 £2.75
20	SN703448 Available to backorder	3/8-16X.75 G5 Bolt	£3.19 £2.66
30	SY5025394SM Available to backorder	Hex Flange	£4.03 £3.36
40	BP1758894DYP Available to backorder	Footrest	£119.04 £99.20
50	BP1759970DYP Available to backorder	Rear (Red) Bumper	£325.92 £271.60
60	SN703410 Available to backorder	5/16-18X1 Bolt	£3.19 £2.66
70	SN703115 Available to backorder	Nut	£2.83 £2.36
90	BP1757813DYP Available to backorder	Foot Pan	£133.68 £111.40
140	BP197546GS Available to backorder	Mount-Vibration	£4.14 £3.45
150	SN7090496YP Available to backorder	1/4C X1 Gr5 Z Rhssnb	£4.00 £3.33
160	BP703233 Available to backorder	1/4-20	£3.11 £2.59
165	BP15X143MA Available to backorder	25-20 Hex Flg Ctr Nut	£4.06 £3.38
170	SN707785 Available to backorder	Knob	£3.77 £3.14
180	BP1758010DYP Available to backorder	Control Bracket	£137.40 £114.50
190	BP1758240AYP Available to backorder	Fender Bracket	£9.64 £8.03
200	BP1757796DYP Available to backorder	Brand Bracket	£110.88 £92.40
210	SN1758835DYP Available to backorder	Seat Pivot (Red) Bracket	£39.91 £33.26
220	BP707790 Available to backorder	Button Head	£3.41 £2.84
230	BP5025339YP Available to backorder	Hex	£2.89 £2.41
240	BP770013 Available to backorder	8-32 X .50 Lg	£3.11 £2.59
300	BP1757819DYP Available to backorder	Front Axle	£372.84 £310.70
320	BP1757845DYP Available to backorder	Front Caster	£99.36 £82.80
330	SN703993 Available to backorder	Ext Ring	£3.12 £2.60
340	BP703199 Available to backorder	Flat Washer	£3.62 £3.02
350	SN1758354YP Available to backorder	25 Mm Bearing	£15.86 £13.22
355	BP1722726SM Available to backorder	Hub Cap	£6.37 £5.31
360	BP1725651SM Available to backorder	Spindle Cover	£5.00 £4.17
390	BP1759969DYP Available to backorder	Transmission (Red) Guard	£35.34 £29.45
430	SN703302 Available to backorder	Flat	£2.75 £2.29
