Snapper ZTX150 2691351 Clutch and Support Group

Name: Snapper ZTX150 2691351 Clutch and Support Group
SKU: ztx150_2691351_clutch_and_support_group-group
Price: 1.9 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX150 2691351 Clutch and Support Group

Description

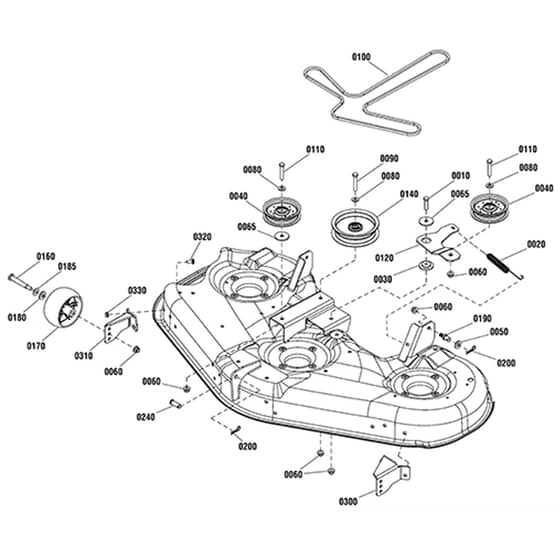

Snapper ZTX150 2691351 - Clutch and Support Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
20	SY1729620SM Available to backorder	Extension	£7.61 £6.34
30	BP706128 Available to backorder	Idler Spacer	£4.84 £4.03
40	SN1757823YP Available to backorder	Idler	£31.07 £25.89
50	SN703853 Available to backorder	0.516Idx1Od Washer	£3.12 £2.60
60	SN703158 Available to backorder	Hex Flange	£2.98 £2.48
65	BP5025305SM Available to backorder	.41 X 1.75 X Washer	£4.62 £3.85
80	BP703878 In stock	Flat Washer	Was £2.94 £2.45 Special Price £2.28 £1.90
90	SN703872 Available to backorder	Hex Head	£3.48 £2.90
100	SN1736516YP Available to backorder	Ha V-Belt	£118.99 £99.16
110	SN703589 Available to backorder	3/8-16X2 Capscrew	£3.12 £2.60
120	BP1758486AYP Available to backorder	Idler	£14.14 £11.78

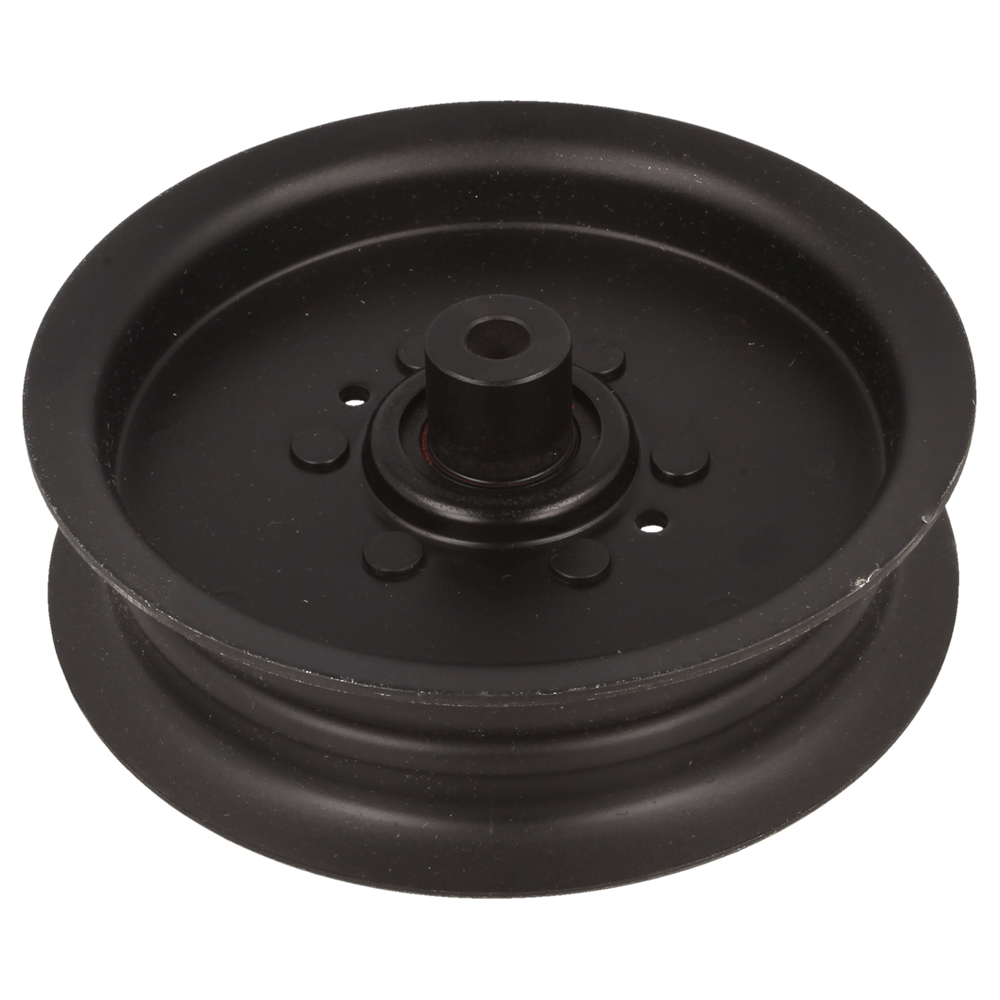

140	SY7034422SM Available to backorder	Flat Idler Pulley	£83.70 £69.75
160	SN1736539YP Available to backorder	Shoulder	£7.97 £6.64
170	SN1736896YP Available to backorder	Gauge Wheel	£15.94 £13.28

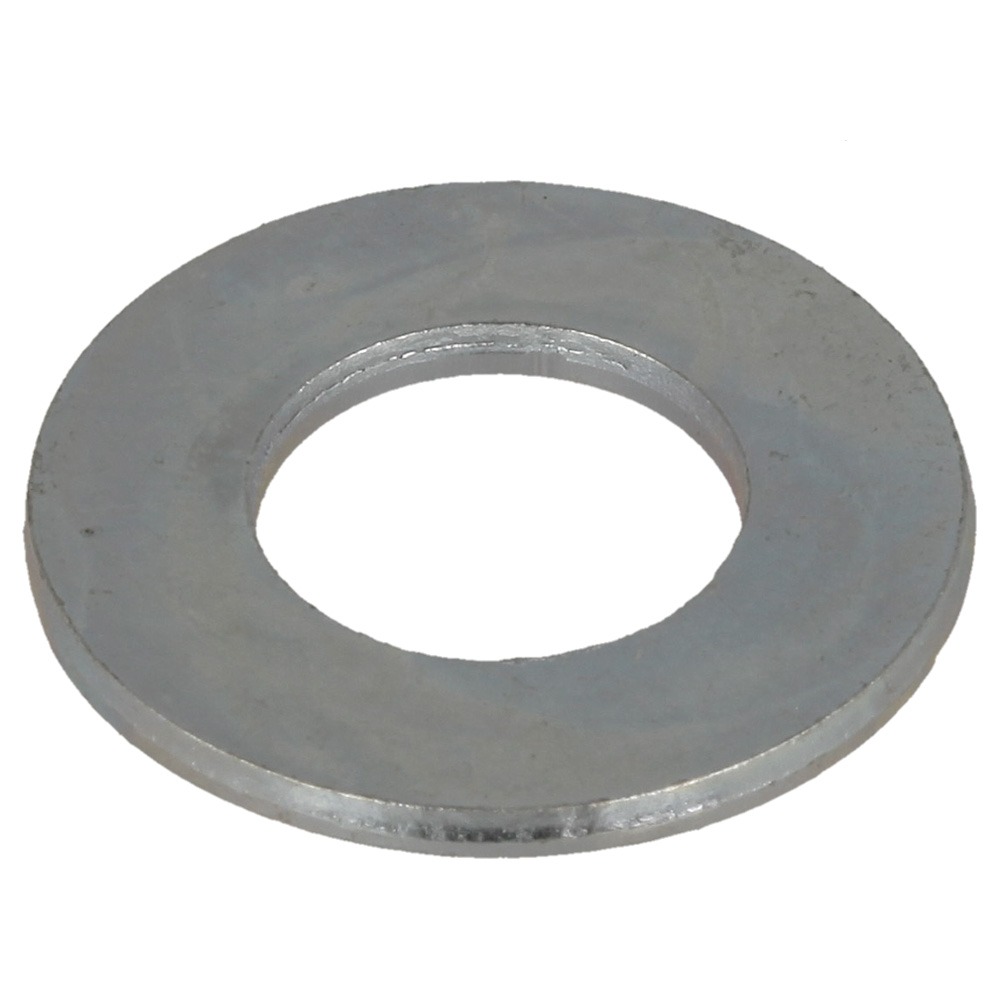

180	BP5025158SM Available to backorder	1/2 Washer	£3.50 £2.92
185	BP0020X3MA Available to backorder	Spring .52X.99 Washer	£3.78 £3.15
190	SN704054 Available to backorder	3/8-16 Pin	£7.39 £6.16
200	SN703300 Available to backorder	3/32 X 1.6 Pin	£2.83 £2.36
240	SN5025479YP Available to backorder	1/2 X 1.3 Clevis Pin	£4.43 £3.69
300	SN1736074BMYP Available to backorder	Gauge Wheel Bracket	£21.43 £17.86
310	BP1736075BMYP Available to backorder	Gauge Wheel Bracket	£21.42 £17.85
320	BP703185 Available to backorder	Rhssnb	£3.02 £2.52
330	BP5025127SM Available to backorder	Hex Serrated Flange	£3.36 £2.80
