Snapper ZTX110 2691708-00 Lift Group

Name: Snapper ZTX110 2691708-00 Lift Group
SKU: ztx110_2691708_00_lift_group-group
Price: 2.36 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

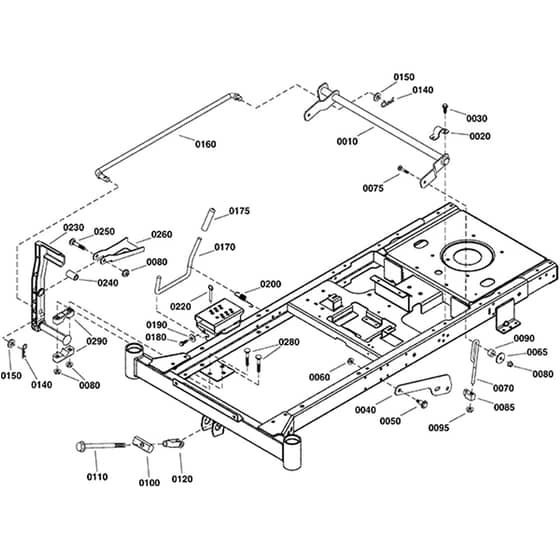

Snapper ZTX110 2691708-00 - Lift Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
20	SN1720147BZYP Available to backorder	Strap	£11.59 £9.66
30	SN703949 Available to backorder	5/16-18.625 Screw	£2.98 £2.48
40	BP1757953AYP Available to backorder	Lift Arm	£26.40 £22.00
50	BP1732426SM Available to backorder	Bolt-Shldr 5/16-18 0.	£4.56 £3.80
60	SN703115 Available to backorder	Nut	£2.83 £2.36
65	BP5025305SM Available to backorder	.41 X 1.75 X Washer	£4.62 £3.85
70	BP84003818 Available to backorder	Lift Rod	£20.16 £16.80
75	SN703406 Available to backorder	3/8-16X1.5 Capscrew	£3.26 £2.72
80	SN703158 Available to backorder	Hex Flange	£2.98 £2.48
85	BP84003820 Available to backorder	Trunnion	£9.04 £7.53
90	BP5100334SM Available to backorder	Spacer	£6.66 £5.55
95	BP770225 Available to backorder	Flange	£3.50 £2.92
100	BP1757955YP Available to backorder	Pivot	£11.76 £9.80
110	BP1757954YP Available to backorder	Rod	£16.18 £13.48
120	BP5023174SM Available to backorder	1/2-20	£17.44 £14.53
140	BP403162MA Available to backorder	Hair	£82.66 £68.88
150	BP5025281SM Available to backorder	5/8 Washer	£3.02 £2.52
160	BP1758121YP Available to backorder	Foot Assist Rod	£44.74 £37.28
170	BP5105717YP Available to backorder	Transport Rod	£33.82 £28.18
175	BP5021880SM Available to backorder	Foam	£4.14 £3.45
180	SN703054 Available to backorder	1/4-20X0.625 Screw	£2.98 £2.48
190	BP5025288YP Available to backorder	1/4 Washer	£2.88 £2.40
200	BP1758283YP Available to backorder	Extension Spring	£4.42 £3.68
220	BP5103021YP Available to backorder	Hitch	£7.84 £6.53
230	BP1758232YP Available to backorder	Lift Pedal	£100.68 £83.90
240	BP1756612YP Available to backorder	Diff. Lock Bushing	£4.44 £3.70
250	BP7900009SM Available to backorder	3/8-16 X 2-1/ Rhssnb	£4.00 £3.33
260	SN1758284AYP Available to backorder	Height Of Cut Stop	£21.52 £17.93
280	BP1960615SM Available to backorder	Carriage	£4.98 £4.15
290	BP5100634SM Available to backorder	Block	£6.10 £5.08
