Snapper ZTX110 2691708-00 Housing, Arbors & Blade Group

Name: Snapper ZTX110 2691708-00 Housing, Arbors & Blade Group
SKU: ztx110_2691708_00_housing_arbors_blade_group-group
Price: 2.48 GBP
Availability: InStock

Part No. ztx110_2691708_00_housing_arbors_blade_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX110 2691708-00 Housing, Arbors & Blade Group

Description

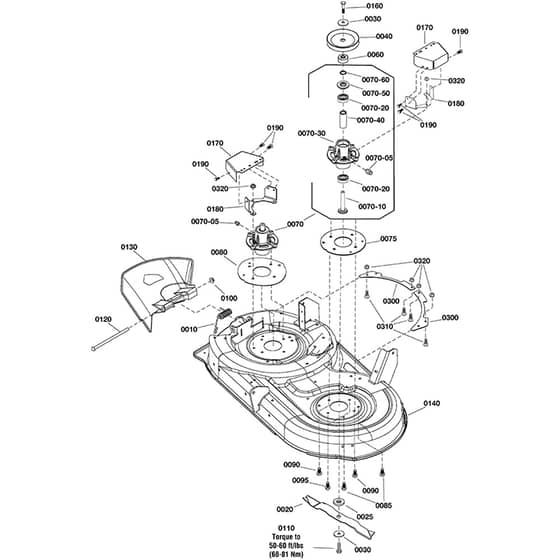

Snapper ZTX110 2691708-00 - Housing, Arbors & Blade Group - Parts Diagram

	Part No.	Details
10	BP7035813SM Available to backorder	Torsion	£6.46 £5.38
20	SN1752100AYP Available to backorder	42” Mower Blade	£45.66 £38.05
25	BP1755892YP Available to backorder	Blade Adapter Spacer	£25.86 £21.55
30	SY1656916SM In stock	Spring 0.475I Washer	£7.81 £6.51
40	SN1737835YP Available to backorder	V	£22.39 £18.66
60	BP1760367YP Available to backorder	Pulley Spacer	£13.03 £10.86
70	BP84003175 Available to backorder	Arbor Assembly	£79.56 £66.30
75	SN1750458BMYP Available to backorder	Spindle	£33.46 £27.88
80	SN1750457BMYP Available to backorder	Spindle	£30.49 £25.41
85	SN703949 Available to backorder	5/16-18.625 Screw	£3.30 £2.75
90	SN704146 Available to backorder	Hex	£3.26 £2.72
95	SN704318 Available to backorder	Hex Washer Self-Tap	£3.62 £3.02
100	SN703179 Available to backorder	1/2 Pushnut	£3.19 £2.66
110	SN703579 Available to backorder	Hex Head	£4.49 £3.74
120	BP7104640YP Available to backorder	Deflector Rod	£14.92 £12.43
130	SN7104733YP Available to backorder	Side Discharge Chute	£79.20 £66.00
140	BP1687913YP Available to backorder	42” Mower Shell W/Decals	£1,112.12 £926.77
160	BP1927531SM Available to backorder	Hex Head	£5.06 £4.22
170	BP1760478AYP Available to backorder	Spindle Cover	£37.45 £31.21
180	BP1752065BMYP Available to backorder	Guard Mount Bracket	£25.20 £21.00
190	SN703054 Available to backorder	1/4-20X0.625 Screw	£2.98 £2.48
300	BP092426E701MA Available to backorder	Rear Plate	£13.69 £11.41
310	BP703185 Available to backorder	Rhssnb	£3.12 £2.60
320	BP5025127SM Available to backorder	Hex Serrated Flange	£3.48 £2.90
7020	SN1735399YP Available to backorder	Ball	£10.09 £8.41
7030	SY84003654 In stock	Housing Assembly	£49.27 £41.06
7040	BP84003167 Available to backorder	Bearing Spacer	£10.08 £8.40
7050	SN84003166 Available to backorder	Arbor Cover	£8.23 £6.86
7060	SN1960766YP Available to backorder	Self Locking Ring	£4.03 £3.36
197005	BP703907 Available to backorder	.250 Dr Lube Fitting	£4.00 £3.33
197010	BP84003170 Available to backorder	Spindle Shaft	£24.48 £20.40
