Snapper ZTX110 2691708-00 Electrical Group with Hourmeter

Name: Snapper ZTX110 2691708-00 Electrical Group with Hourmeter
SKU: ztx110_2691708_00_electrical_group_with_hourmeter-group
Price: 2.24 GBP
Availability: InStock

Part No. ztx110_2691708_00_electrical_group_with_hourmeter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX110 2691708-00 Electrical Group with Hourmeter

Description

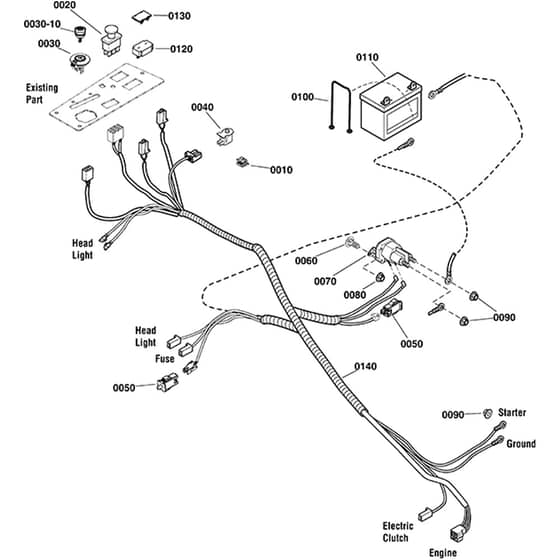

Snapper ZTX110 2691708-00 - Electrical Group with Hourmeter - Parts Diagram

	Part No.	Details
10	BP2172434SM Available to backorder	Clip- Wire Dia .390	£4.20 £3.50
20	SY1722887SM Available to backorder	Switch-Pto Push	£32.81 £27.34
30	SN7106169YP Available to backorder	Ignition	£27.52 £22.93
40	BP7023354YP In stock	Seat Switch	£10.30 £8.58
50	SN7022886YP Available to backorder	Dp No/Nc Snap Switch	£11.74 £9.78
60	BP1960252SM Available to backorder	Bolt-Rd Hd Sh Sq Nk 1	£3.77 £3.14
70	SN1755382YP Available to backorder	Solenoid	£20.71 £17.26
80	SN703463 Available to backorder	Gr5	£2.69 £2.24
90	SN703061 Available to backorder	Hex Keps	£2.98 £2.48
100	BP1722009SM Available to backorder	Rubber	£10.66 £8.88
120	BP1731185SM Available to backorder	Meter-Hour Digital No	£58.31 £48.59
130	BP1722611SM Available to backorder	Plug-Hole Black	£5.88 £4.90
140	BP84002334 Available to backorder	Harness Assembly	£131.04 £109.20
193010	SN7106172YP Available to backorder	Ignition Switch - Pack Of 2	£23.36 £19.47
193010	SN7106170YP Available to backorder	Ignition Switch	£17.17 £14.31
