Snapper ZTX110 2691391-01 Lift Group

Name: Snapper ZTX110 2691391-01 Lift Group
SKU: ztx110_2691391_01_lift_group-group
Price: 2.36 GBP
Availability: InStock

Part No. ztx110_2691391_01_lift_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

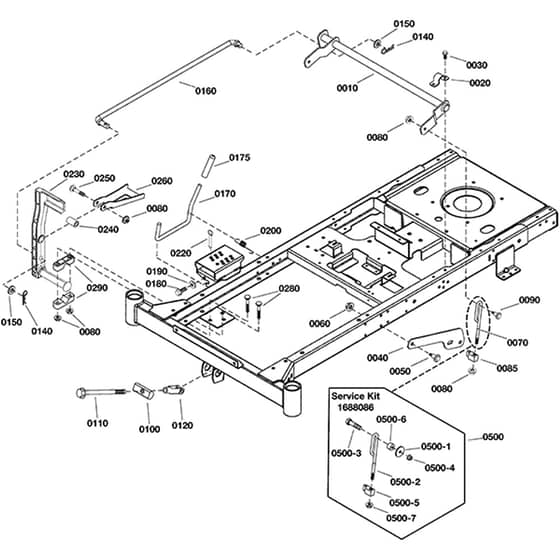

Snapper ZTX110 2691391-01 - Lift Group - Parts Diagram

	Part No.	Details
10	BP1757958AYP Available to backorder	Lift Shaft	£147.12 £122.60
20	SN1720147BZYP Available to backorder	Strap	£11.59 £9.66
30	SN703949 Available to backorder	5/16-18.625 Screw	£3.30 £2.75
40	BP1757953AYP Available to backorder	Lift Arm	£27.31 £22.76
50	BP1732426SM Available to backorder	Bolt-Shldr 5/16-18 0.	£4.72 £3.93
60	SN703115 Available to backorder	Nut	£2.83 £2.36
85	SY1731894SM Available to backorder	Trunnion	£9.71 £8.09
90	BP009X51MA Available to backorder	Bolt-Shd.38-16X.499D	£4.92 £4.10
100	BP1757955YP Available to backorder	Pivot	£12.17 £10.14
110	BP1757954YP Available to backorder	Rod	£16.74 £13.95
120	BP5023174SM Available to backorder	1/2-20	£18.04 £15.03
140	SN703300 Available to backorder	3/32 X 1.6 Pin	£2.83 £2.36
150	BP5025281SM Available to backorder	5/8 Washer	£3.12 £2.60
160	BP1758121YP Available to backorder	Foot Assist Rod	£46.28 £38.57
170	BP1758246YP Available to backorder	Transport Rod	£26.38 £21.98
175	BP1759817YP Available to backorder	Foam Grip	£4.34 £3.62
180	SN703054 Available to backorder	1/4-20X0.625 Screw	£2.98 £2.48
190	BP5025288YP Available to backorder	1/4 Washer	£2.98 £2.48
200	BP1758283YP Available to backorder	Extension Spring	£4.57 £3.81
220	BP5103021YP Available to backorder	Hitch	£8.11 £6.76
230	BP1758232YP Available to backorder	Lift Pedal	£104.88 £87.40
240	BP1756612YP Available to backorder	Diff. Lock Bushing	£4.60 £3.83
250	BP7900009SM Available to backorder	3/8-16 X 2-1/ Rhssnb	£4.14 £3.45
260	SN1758284AYP Available to backorder	Height Of Cut Stop	£21.52 £17.93
280	BP1960615SM Available to backorder	Carriage	£5.15 £4.29
290	BP5100634SM Available to backorder	Block	£6.31 £5.26
500	SN1688086 Available to backorder	Zt Lift Kit	£42.80 £35.67
5001	BP5025305SM In stock	.41 X 1.75 X Washer	Was £4.62 £3.85 Special Price £3.32 £2.77
5002	BP84003818 Available to backorder	Lift Rod	£20.86 £17.38
5003	SN703406 Available to backorder	3/8-16X1.5 Capscrew	£3.26 £2.72
5004	SN703158 In stock	Hex Flange	£3.19 £2.66
5005	BP84003820 In stock	Trunnion	£9.68 £8.07
5006	BP5100334SM In stock	Spacer	Was £6.66 £5.55 Special Price £4.80 £4.00
5007	BP5025396SM Available to backorder	Hex Flange	£4.20 £3.50
