Snapper ZTX110 2691391-01 Engine Group

Name: Snapper ZTX110 2691391-01 Engine Group
SKU: ztx110_2691391_01_engine_group-group
Price: 2.24 GBP
Availability: InStock

Part No. ztx110_2691391_01_engine_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

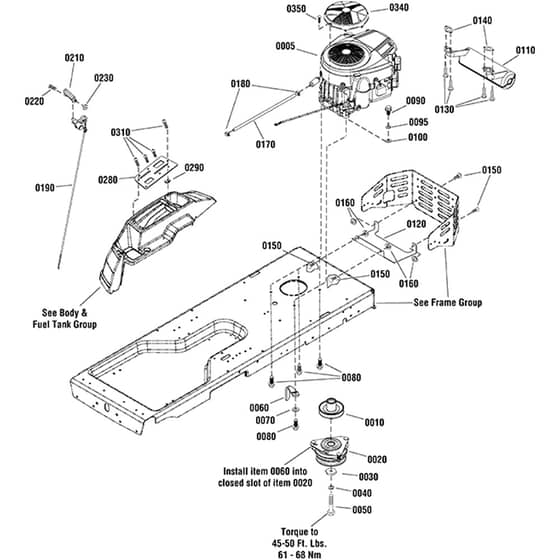

Snapper ZTX110 2691391-01 - Engine Group - Parts Diagram

	Part No.	Details
10	BP1757995YP Available to backorder	Assembly-Pulley	£39.66 £33.05
20	BP1736105SM Available to backorder	Electric Clutch	£349.68 £291.40
30	BP1708264SM Available to backorder	Hex	£6.89 £5.74
40	SN704007 Available to backorder	Lock	£3.04 £2.53
50	BP1960649SM Available to backorder	Hex Head	£6.31 £5.26
60	SN1737421AYP Available to backorder	Belt Guide	£9.56 £7.97

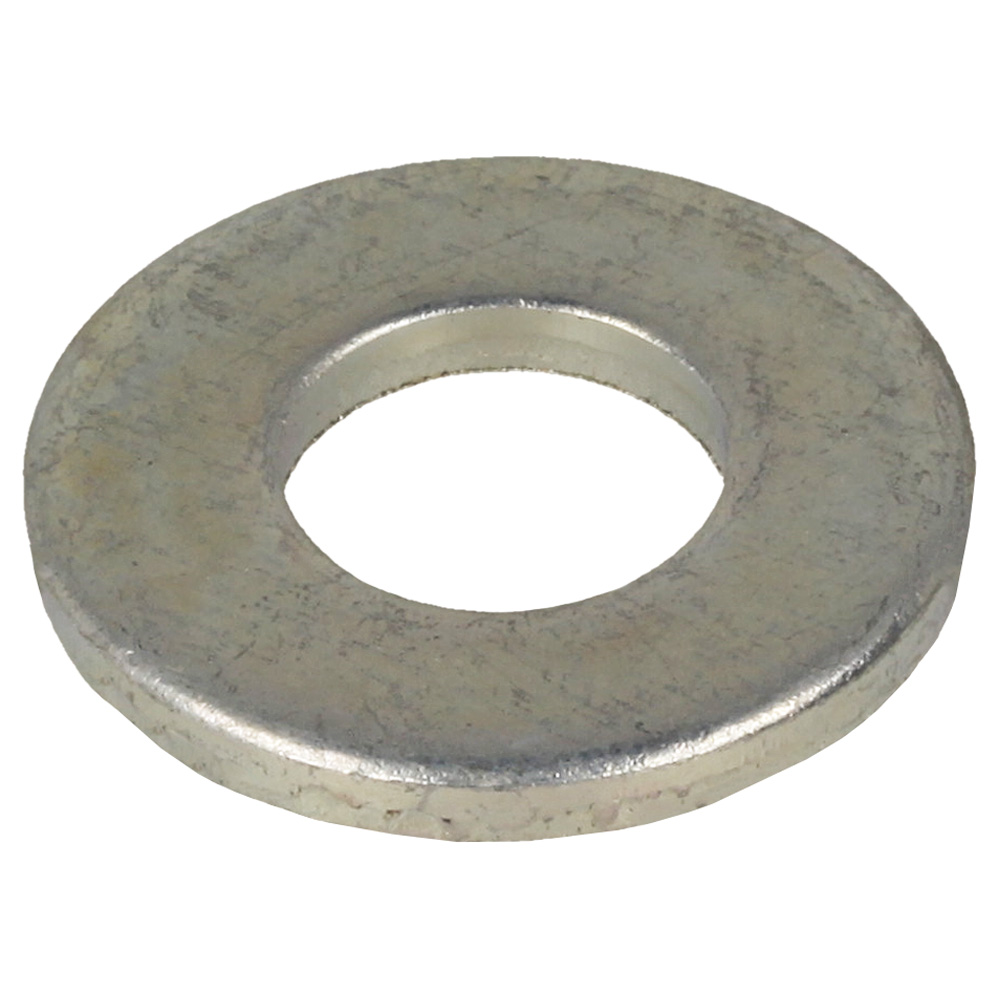

70	BP703878 Available to backorder	Flat Washer	£3.04 £2.53

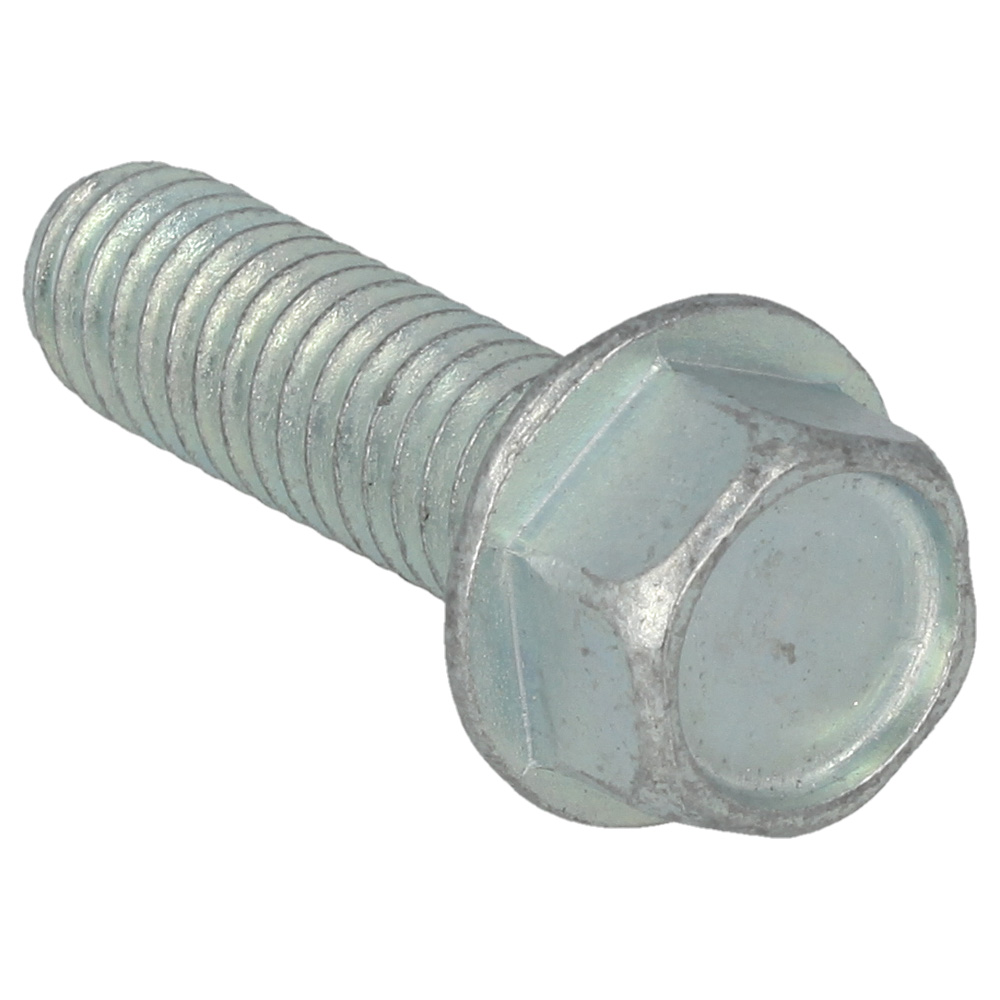

80	BP2828635SM Available to backorder	Screw-Hex Wshr Hd Tap	£4.49 £3.74
90	SN703054 Available to backorder	1/4-20X0.625 Screw	£2.98 £2.48

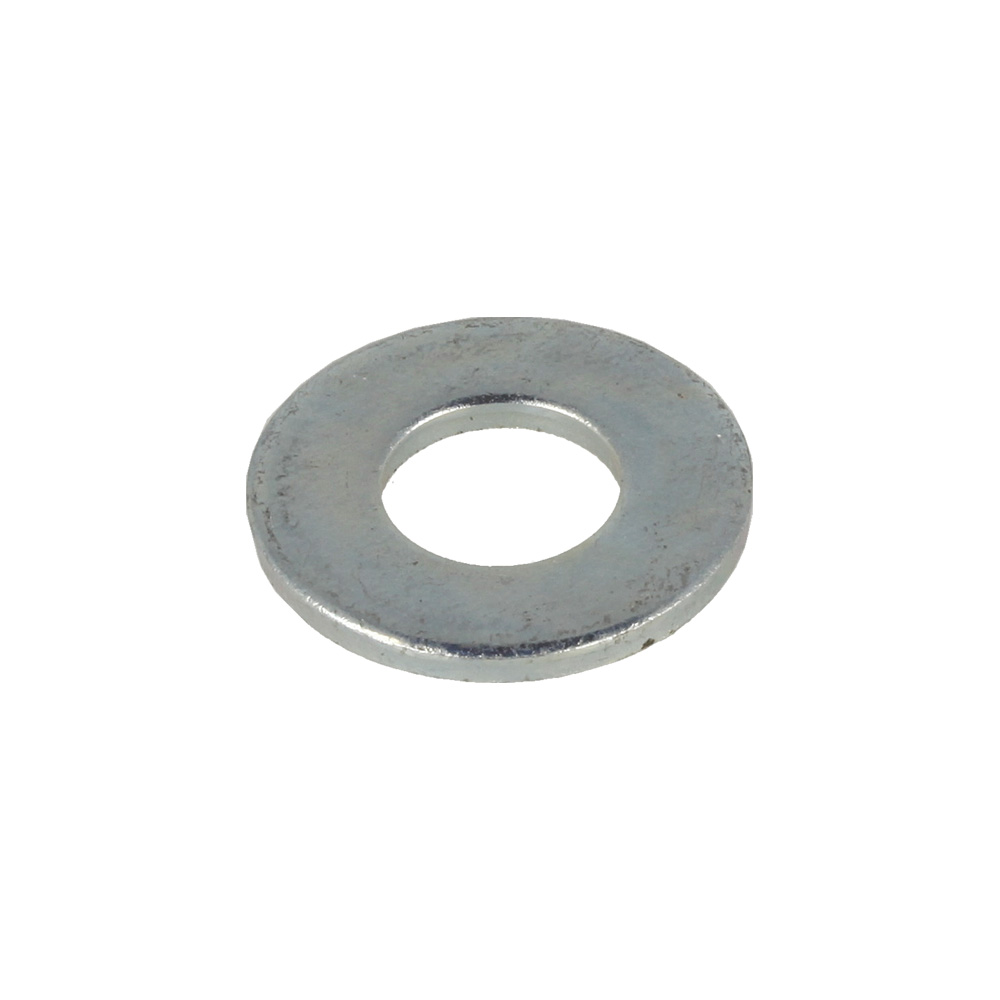

95	BP703332 Available to backorder	Washer	£2.83 £2.36
100	BP1921880SM Available to backorder	Lockwasher-Externalto	£3.91 £3.26
110	BP1758350YP Available to backorder	Muffler	£266.16 £221.80
120	BP1759502AYP Available to backorder	Heat Shield	£60.62 £50.52
130	BP690341 Available to backorder	Screw	£5.92 £4.93

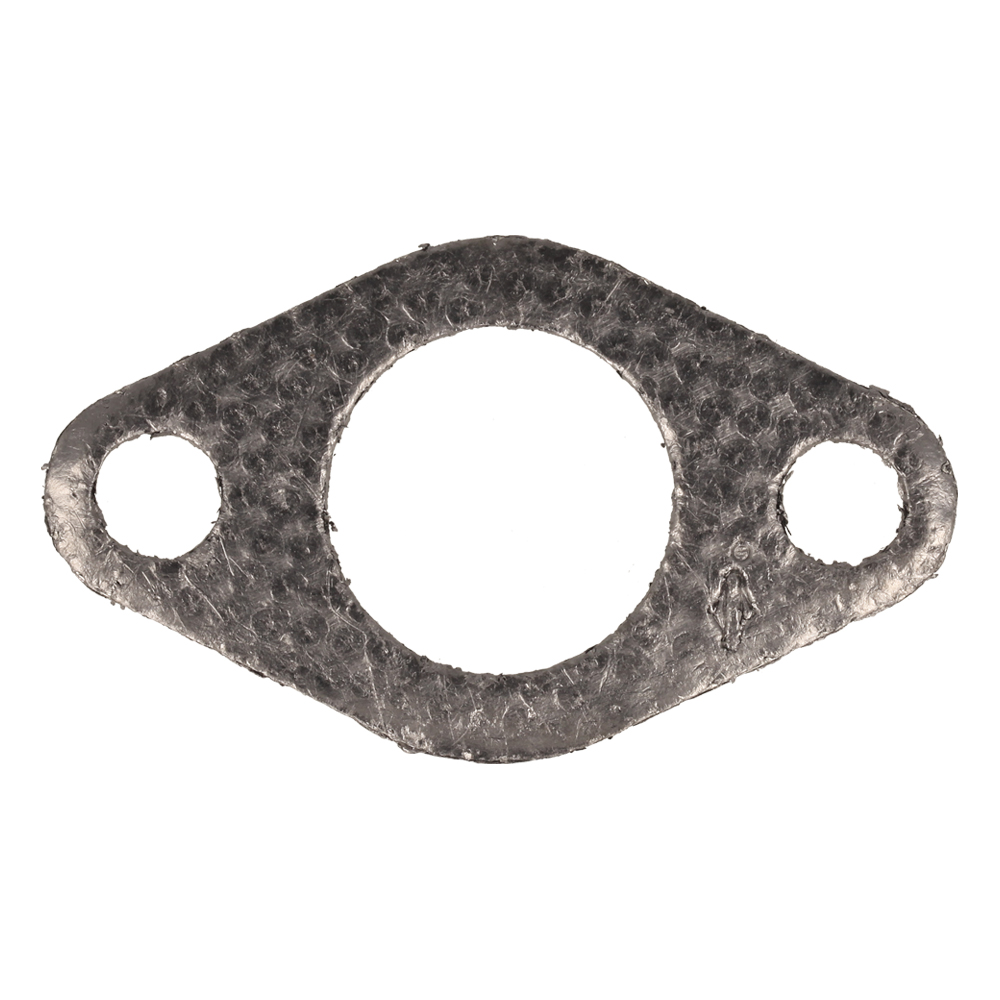

140	BP690970 Available to backorder	Exhaust Gasket	£7.40 £6.17

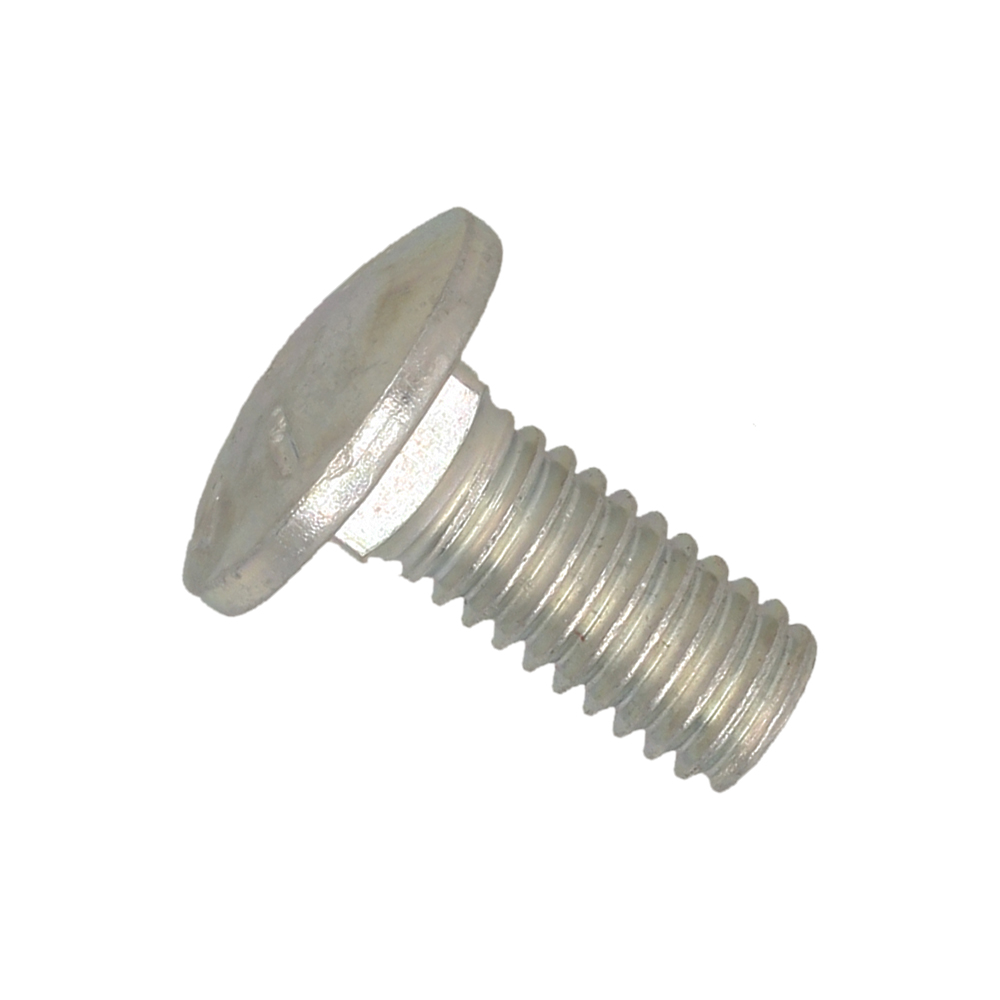

150	BP703185 Available to backorder	Rhssnb	£3.12 £2.60
160	SN703115 Available to backorder	Nut	£2.83 £2.36

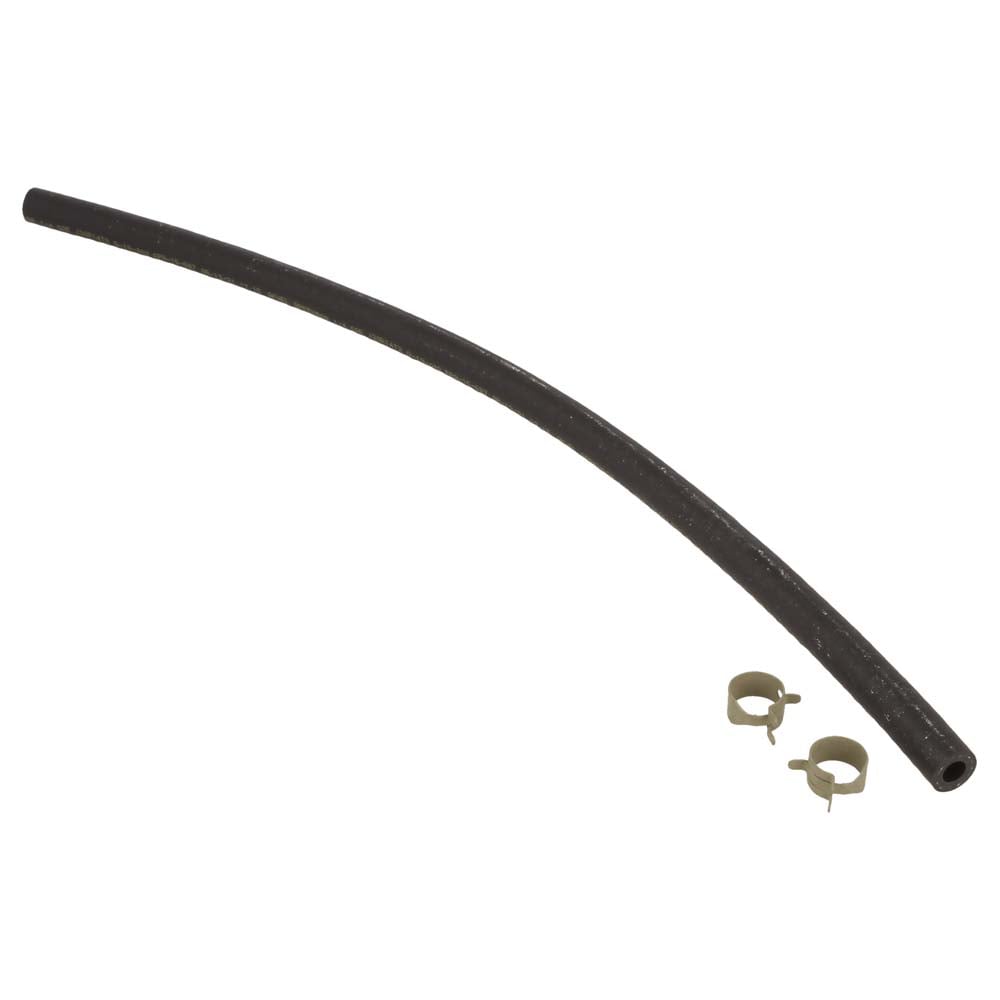

170	BP791766 In stock	Fuel Line	£13.09 £10.91
190	BP1759204YP Available to backorder	Throttle	£38.86 £32.38
210	SN1739312YP Available to backorder	Throttle Knob	£8.20 £6.83
220	BP797483 Available to backorder	Screw	£4.84 £4.03
230	SN703460 Available to backorder	Hex	£2.69 £2.24
280	SN1759429AYP Available to backorder	Control Panel	£33.54 £27.95
310	BP703953 Available to backorder	Phillips Head	£3.12 £2.60
340	BP797420YP Available to backorder	Debris Screen Guard	£31.00 £25.83
350	BP799359 Available to backorder	Screw	£5.44 £4.53
