Snapper ZTX105 2692024 Lift Group

Name: Snapper ZTX105 2692024 Lift Group
SKU: ztx105_2692024_lift_group-group
Price: 1.9 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

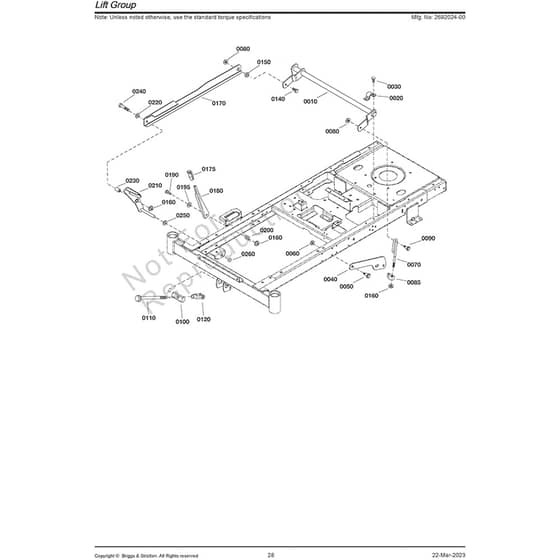

Snapper ZTX105 2692024 - Lift Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	BP84001704 Available to backorder	Lift Shaft	£83.66 £69.72
20	BP1761690HYP Available to backorder	Rocker Shaft Strap	£8.93 £7.44
30	SN703949 Available to backorder	5/16-18.625 Screw	£2.98 £2.48
40	BP1757953AYP Available to backorder	Lift Arm	£26.40 £22.00
50	BP1732426SM Available to backorder	Bolt-Shldr 5/16-18 0.	£4.56 £3.80
60	SN703115 Available to backorder	Nut	£2.83 £2.36
70	SN1688086 Available to backorder	Lift Rod	£42.80 £35.67
80	SN703158 Available to backorder	Hex Flange	£2.98 £2.48
85	SY1731894SM Available to backorder	Trunnion	£9.71 £8.09
90	BP009X51MA Available to backorder	Bolt-Shd.38-16X.499D	£4.76 £3.97
100	BP1757955YP Available to backorder	Pivot	£11.76 £9.80
110	BP1757954YP Available to backorder	Rod	£16.18 £13.48
120	BP5023174SM Available to backorder	1/2-20	£17.44 £14.53
140	SN704038 Available to backorder	Screw	£3.41 £2.84
150	BP1663752SM Available to backorder	25/64 X 5/8 X 3/16 Spacer	£6.30 £5.25
160	SN703893 Available to backorder	Cntr Lck	£3.91 £3.26
170	BP84001705 Available to backorder	Lift Link	£53.48 £44.57
175	BP84001706 Available to backorder	Grip	£8.26 £6.88
180	BP84001707 Available to backorder	Height Adjust Lever	£31.36 £26.13
190	SN770137 Available to backorder	Bolt	£3.48 £2.90
195	SN704128 Available to backorder	Washer	£3.12 £2.60
200	BP2162085SM Available to backorder	Compression Spring	£6.80 £5.67
210	BP84001708 Available to backorder	Pedal	£98.64 £82.20
220	BP703878 In stock	Flat Washer	Was £2.94 £2.45 Special Price £2.28 £1.90
230	BP1756612YP Available to backorder	Diff. Lock Bushing	£4.44 £3.70
240	SN703589 Available to backorder	3/8-16X2 Capscrew	£3.12 £2.60

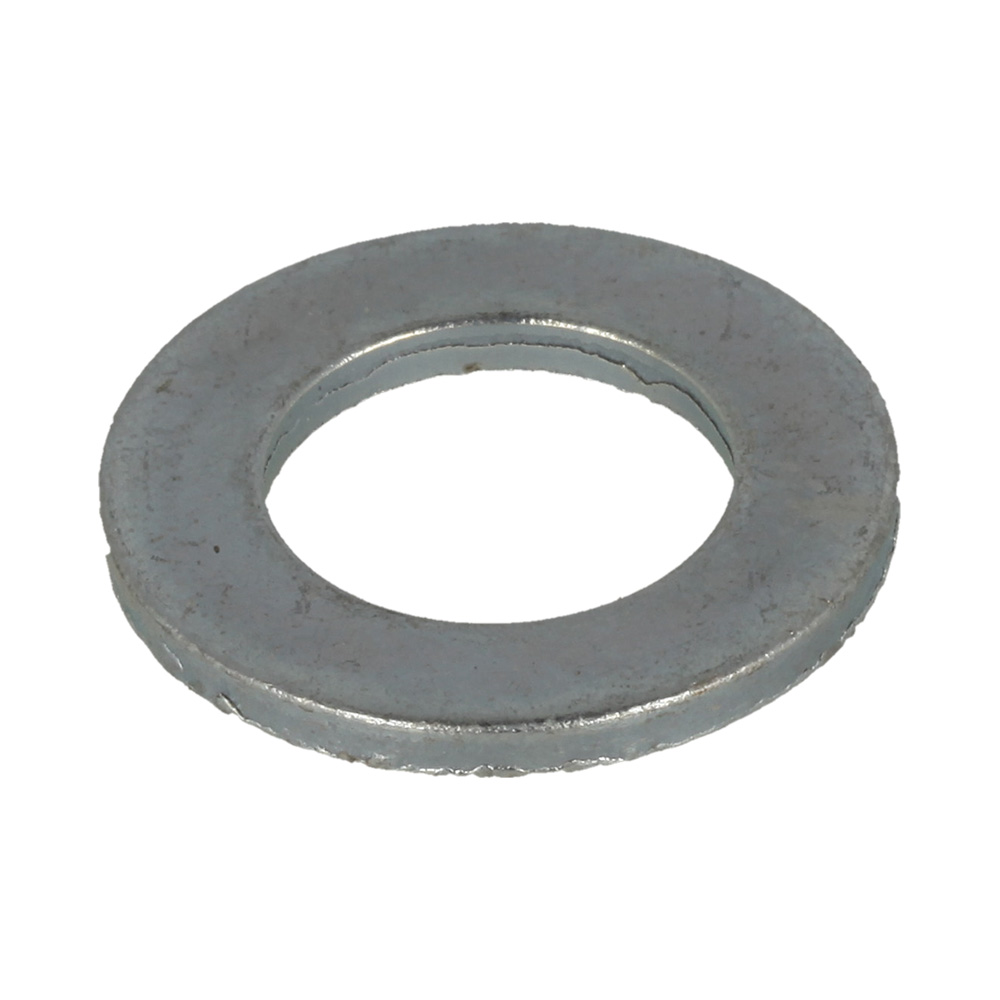

250	SN703580 Available to backorder	5/8 Washer	£3.34 £2.78
260	SN771009 Available to backorder	5/8 Pushnut	£4.72 £3.93
