Snapper ZTX105 2692024 Deck and Arbor Group

Description

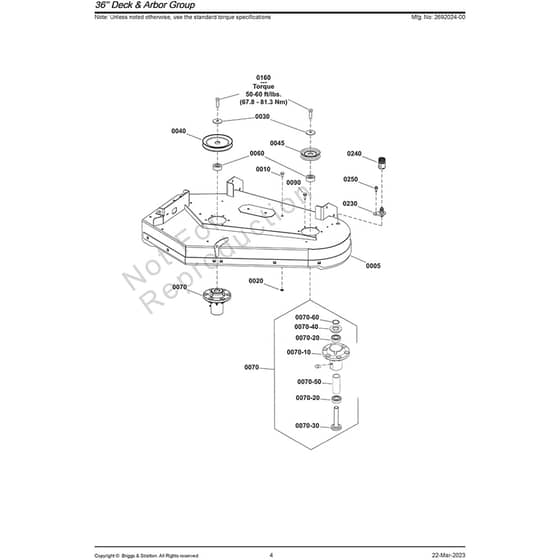

Snapper ZTX105 2692024 - Deck and Arbor Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	BP84008237 Available to backorder	Deck & Decal Kit	£1,314.00 £1,095.00
10	BP703185 Available to backorder	Rhssnb	£3.02 £2.52
20	SN703297 Available to backorder	Gr5	£2.69 £2.24
40	BP1732953SM Available to backorder	Pulley	£17.22 £14.35
45	BP84002209 Available to backorder	Spindle Pulley	£20.10 £16.75

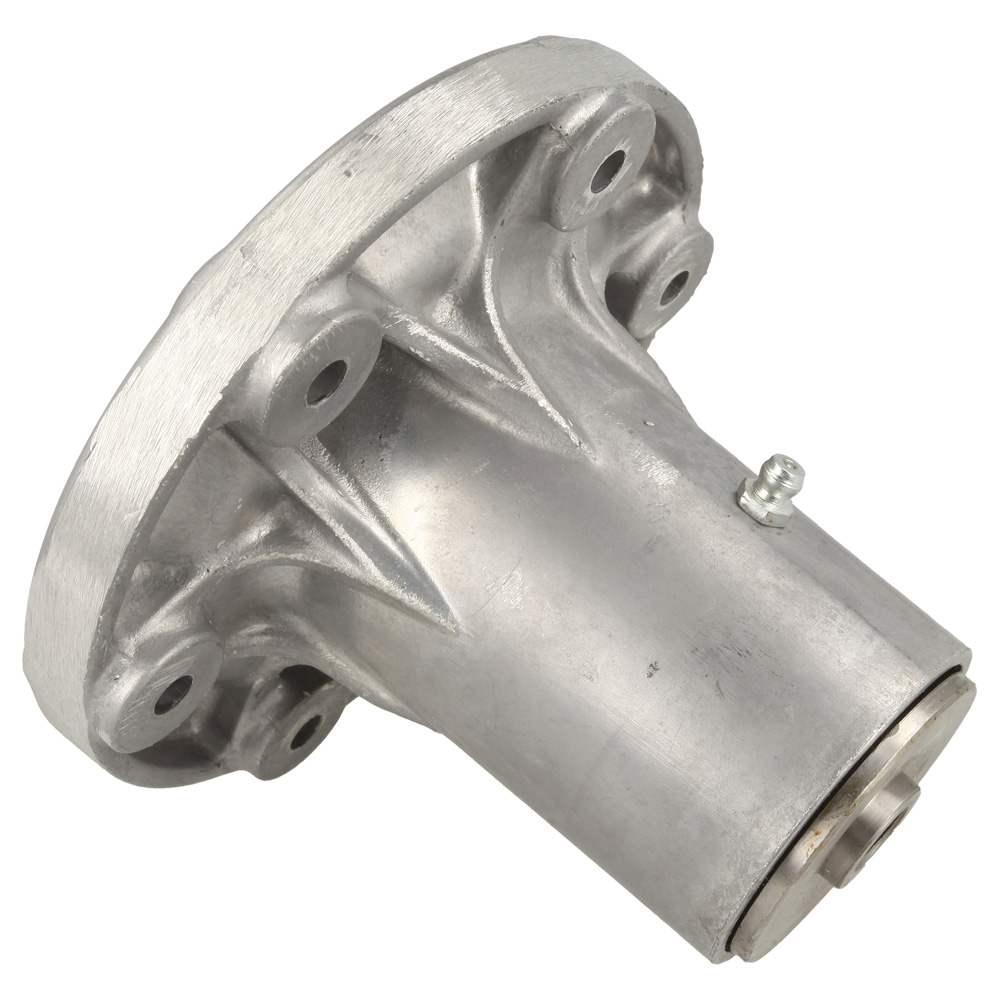

70	BP84003172 Available to backorder	Arbor Assembly	£76.66 £63.88
90	SN704146 Available to backorder	Hex	£3.26 £2.72
160	BP1921212SM Available to backorder	Hex Head	£4.00 £3.33
230	SN1756247YP Available to backorder	Washout Port Adapter	£5.26 £4.38
240	SN1756246YP Available to backorder	Washout Port Connector	£6.38 £5.32
250	SN703228 Available to backorder	5/16-18 X .75 Screw	£3.68 £3.07
7020	SN1735399YP Available to backorder	Ball	£10.08 £8.40
7030	BP84003165 Available to backorder	Spindle Shaft	£26.39 £21.99
7040	SN84003166 Available to backorder	Arbor Cover	£7.96 £6.63
7050	BP84003167 Available to backorder	Bearing Spacer	£9.74 £8.12
7060	SN1960766YP Available to backorder	Self Locking Ring	£4.24 £3.53
197010	BP84003653 Available to backorder	Housing Assembly	£54.54 £45.45
