Snapper ZTX105 2692024 Body and Fuel Tank Group

Name: Snapper ZTX105 2692024 Body and Fuel Tank Group
SKU: ztx105_2692024_body_and_fuel_tank_group-group
Price: 2.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ZTX105 2692024 Body and Fuel Tank Group

Description

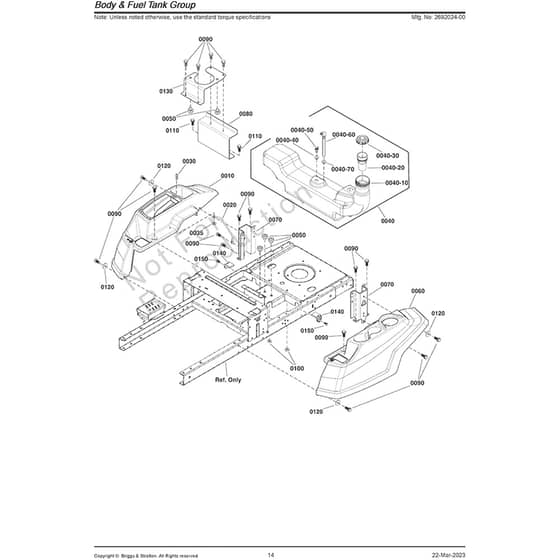

Snapper ZTX105 2692024 - Body and Fuel Tank Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	BP84002190 Available to backorder	Rh Fender	£192.48 £160.40
20	BP84002191 Available to backorder	Fender Rod	£9.80 £8.17
30	SY1960715SM Available to backorder	Screw	£119.99 £99.99
35	SN703463 Available to backorder	Gr5	£2.69 £2.24
40	BP84005279 Available to backorder	Fuel Tank Assembly	£337.20 £281.00
50	BP197546GS Available to backorder	Mount-Vibration	£4.00 £3.33
60	BP84002192 Available to backorder	Lh Fender	£223.32 £186.10
70	SN1758239AYP Available to backorder	Support-Fender	£40.20 £33.50
80	BP84002196 Available to backorder	Bracket	£60.48 £50.40
90	SN703228 Available to backorder	5/16-18 X .75 Screw	£3.68 £3.07
100	SN703158 Available to backorder	Hex Flange	£2.98 £2.48
110	SN704038 Available to backorder	Screw	£3.41 £2.84
120	BP1960044SM Available to backorder	Washer-0.312(0.33Idx1	£3.78 £3.15
130	SN1759140AYP Available to backorder	Strap-Fuel Tank	£34.91 £29.09
140	BP84002197 Available to backorder	Fuel Tank Support	£5.68 £4.73
150	SN703054 Available to backorder	1/4-20X0.625 Screw	£2.98 £2.48
4030	SN1758314YP Available to backorder	Cap-Fuel Tank	£32.09 £26.74
4040	BP799624 Available to backorder	Grommet	£9.42 £7.85
4050	SN770046 Available to backorder	Remote Vent Assembly	£20.42 £17.02
4060	BP1758927YP Available to backorder	Tube-Pick Up	£7.42 £6.18
4070	BP1654930SM Available to backorder	Bushing	£4.38 £3.65
