Snapper ZTX105 2691707-00 Engine Group

Name: Snapper ZTX105 2691707-00 Engine Group
SKU: ztx105_2691707_00_engine_group-group
Price: 2.24 GBP
Availability: InStock

Part No. ztx105_2691707_00_engine_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

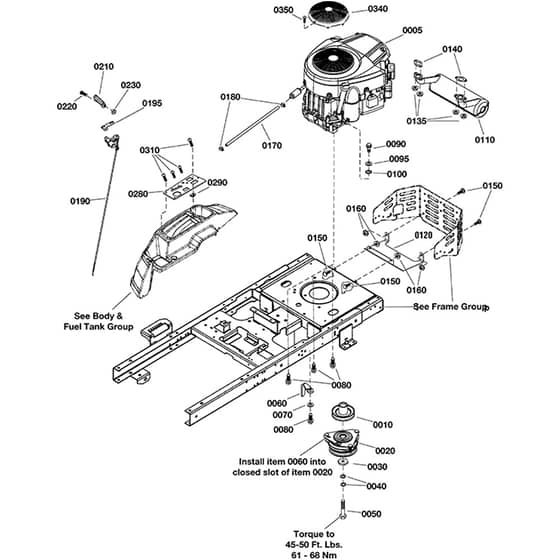

Snapper ZTX105 2691707-00 - Engine Group - Parts Diagram

	Part No.	Details
10	BP1757995YP Available to backorder	Assembly-Pulley	£39.66 £33.05
20	BP1736105SM Available to backorder	Electric Clutch	£349.68 £291.40
30	BP1708264SM Available to backorder	Hex	£6.89 £5.74
40	BP1960769YP Available to backorder	Belleville Washer	£4.34 £3.62
50	BP771023 Available to backorder	Hex Head	£6.37 £5.31
60	SN1737421AYP Available to backorder	Belt Guide	£9.56 £7.97
70	BP703878 Available to backorder	Flat Washer	£3.04 £2.53
80	BP2828635SM Available to backorder	Screw-Hex Wshr Hd Tap	£4.49 £3.74
90	SN703054 Available to backorder	1/4-20X0.625 Screw	£2.98 £2.48
95	BP703332 Available to backorder	Washer	£2.83 £2.36
100	BP1921880SM Available to backorder	Lockwasher-Externalto	£3.91 £3.26
110	BP1758350YP Available to backorder	Muffler	£266.16 £221.80
120	BP1759502AYP Available to backorder	Heat Shield	£60.62 £50.52
135	BP690941 Available to backorder	Nut	£4.84 £4.03
140	BP690970 Available to backorder	Exhaust Gasket	£7.40 £6.17
150	BP703185 Available to backorder	Rhssnb	£3.12 £2.60
160	SN703115 Available to backorder	Nut	£2.83 £2.36
170	BP791766 In stock	Fuel Hose	£13.09 £10.91
180	BP691038 In stock	Hose Clamp	Was £3.64 £3.03 Special Price £3.23 £2.69
190	SN1759205YP Available to backorder	Control-Throttle	£33.54 £27.95
195	BP84004836 Available to backorder	Throttle Stop	£7.76 £6.47
210	SN1739312YP Available to backorder	Throttle Knob	£8.20 £6.83
220	BP797483 Available to backorder	Screw	£4.84 £4.03
230	SN703460 Available to backorder	Hex	£2.69 £2.24
280	BP84002285 Available to backorder	Control	£37.51 £31.26
290	SN705876 Available to backorder	Nut	£3.04 £2.53
310	BP703953 Available to backorder	Phillips Head	£3.12 £2.60
340	BP797420YP Available to backorder	Debris Screen Guard	£31.00 £25.83
350	BP799359 Available to backorder	Screw	£5.44 £4.53
