Echo SPX275 2691929-00 Seat Group

Name: Echo SPX275 2691929-00 Seat Group
SKU: spx275_2691929_00_seat_group-group
Price: 2.24 GBP
Availability: InStock

Part No. spx275_2691929_00_seat_group-group

Description

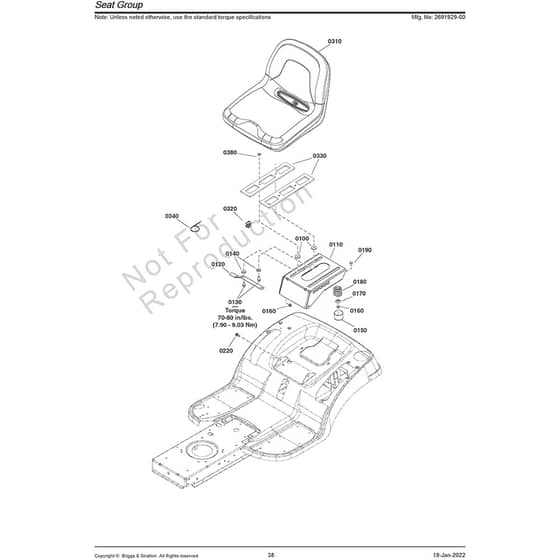

Echo SPX275 2691929-00 - Seat Group - Parts Diagram

	Part No.	Details
100	BP1731300SM Available to backorder	5/16 Id X 1-1/4 Od X 5/16" Spacer	£4.72 £3.93
110	BP1755767BMYP Available to backorder	Seat Support	£108.36 £90.30
120	BP1727268BMYP Available to backorder	Seat Latch	£12.17 £10.14
130	BP1933689SM Available to backorder	5/16-18 X 1-1/2	£6.31 £5.26
140	BP703298 Available to backorder	5/16 Washer	£3.41 £2.84
150	BP1704724SM Available to backorder	Spring	£6.52 £5.43
160	SN703115 Available to backorder	Nut	£2.83 £2.36
170	BP1709256SM Available to backorder	Spring	£4.06 £3.38
180	BP1704728SM Available to backorder	Compression	£8.05 £6.71
190	BP703225 Available to backorder	Bolt	£3.19 £2.66
220	SN703851 Available to backorder	5/16-18X1.15 Bolt	£4.06 £3.38
310	BP84003944 Available to backorder	15" Seat	£361.57 £301.31
320	BP7023354YP In stock	Seat Switch	£10.30 £8.58
330	BP84003652 Available to backorder	Plate Spacer	£40.84 £34.03
340	BP703586 Available to backorder	Self Locking Tie	£3.64 £3.03
380	SN703297 Available to backorder	Gr5	£2.69 £2.24
