Echo SPX275 2691929-00 Clutch & Support Group

Name: Echo SPX275 2691929-00 Clutch & Support Group
SKU: spx275_2691929_00_clutch_support_group-group
Price: 2.48 GBP
Availability: InStock

Part No. spx275_2691929_00_clutch_support_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo SPX275 2691929-00 Clutch & Support Group

Description

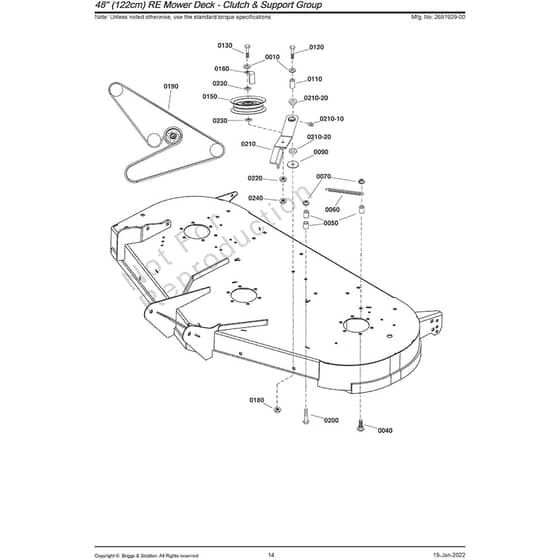

Echo SPX275 2691929-00 - Clutch & Support Group - Parts Diagram

	Part No.	Details
10	BP703878 Available to backorder	Flat Washer	£3.04 £2.53
40	SN703296 Available to backorder	5/16-18X1.5 Bolt	£3.19 £2.66
50	BP1710703SM Available to backorder	3/8 X 1/2 X 5/8 Spacer	£4.28 £3.57
60	SY1715435SM Available to backorder	Extension Spring	£10.14 £8.45
70	SN704001 Available to backorder	Hex Flange	£3.12 £2.60
90	SN703591 Available to backorder	Flat	£3.62 £3.02
110	BP1674669SM Available to backorder	.39 X 5/8 X 1.15 Spacer	£9.85 £8.21
120	SN703589 Available to backorder	3/8-16X2 Capscrew	£3.46 £2.88
130	SN703133 Available to backorder	3/8-16X2.750 Hhcs	£3.24 £2.70

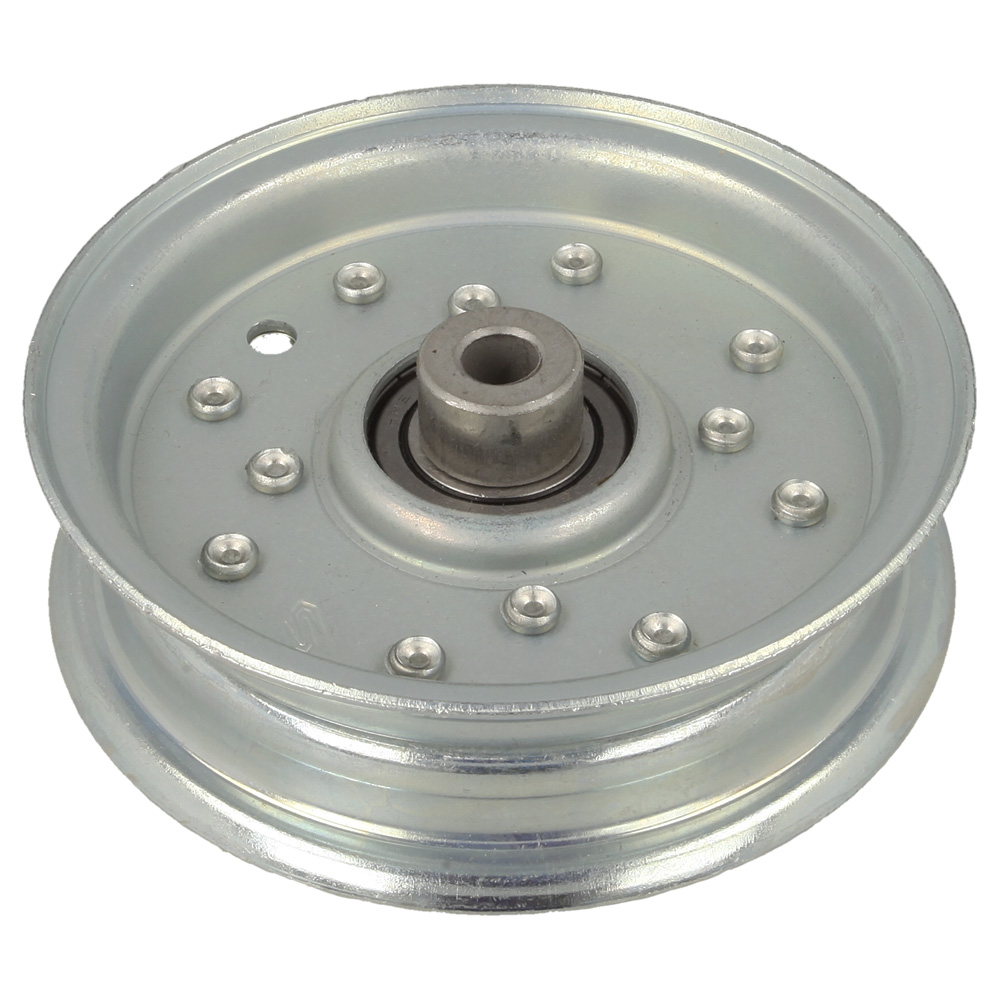

150	SN1757823YP Available to backorder	Idler	£31.20 £26.00
160	BP1761267CJYP Available to backorder	Belt Guard	£17.32 £14.43

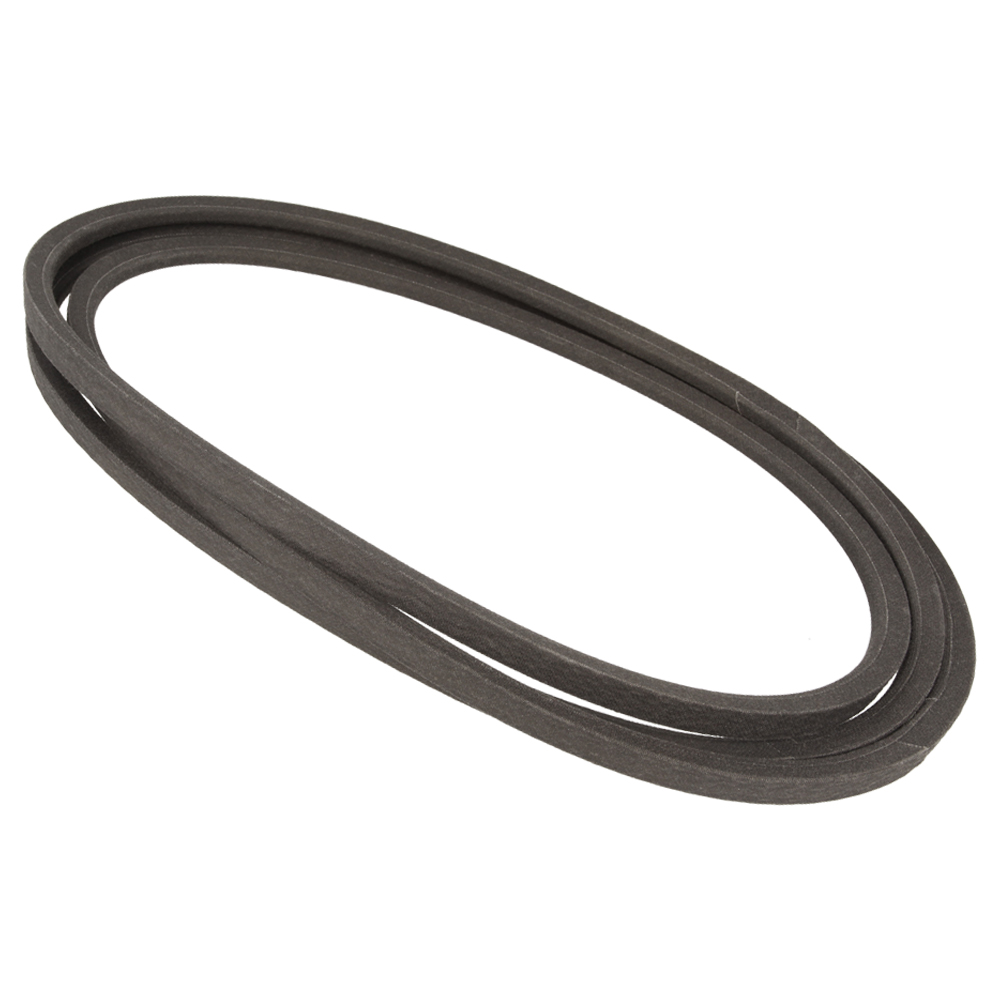

190	SN1761268YP Available to backorder	118" V-Belt	£103.92 £86.60
210	BP1759032YP Available to backorder	Idler Arm Assembly	£96.48 £80.40
220	SN703333 Available to backorder	3/8-16 Nut	£2.98 £2.48
230	SN704128 Available to backorder	Washer	£3.12 £2.60
240	SN703893 Available to backorder	Cntr Lck	£4.34 £3.62
21010	SN703907 Available to backorder	Grease	£3.85 £3.21
21020	BP1676148SM Available to backorder	Bushing	£6.34 £5.28
