Echo SPX210 2691488-00 Frame and Front Axle Group

Name: Echo SPX210 2691488-00 Frame and Front Axle Group
SKU: spx210_2691488_00_frame_and_front_axle_group-group
Price: 2.36 GBP
Availability: InStock

Part No. spx210_2691488_00_frame_and_front_axle_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo SPX210 2691488-00 Frame and Front Axle Group

Description

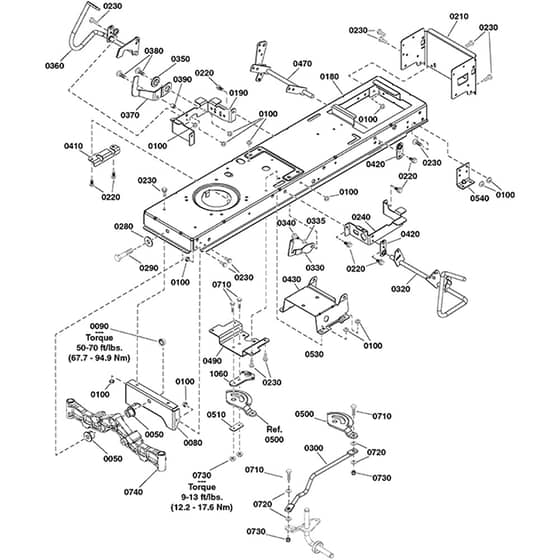

Echo SPX210 2691488-00 - Frame and Front Axle Group - Parts Diagram

	Part No.	Details
50	BP1730186SM Available to backorder	Axle Pivot Bushing	£5.96 £4.97
80	BP1727902SM Available to backorder	Axle Support Plate	£47.94 £39.95
90	BP2860646SM Available to backorder	Hex Flange	£11.44 £9.53
100	BP703409 Available to backorder	5/16-18	£2.98 £2.48
190	BP1759842BMYP Available to backorder	Front Footrest	£45.19 £37.66
210	SN1758690YP Available to backorder	Rear Frame Support	£77.28 £64.40
220	SN703949 Available to backorder	5/16-18.625 Screw	£3.30 £2.75
230	BP703354 Available to backorder	5/16-18 Screw	£3.34 £2.78
240	BP1759841BMYP Available to backorder	Front Footrest	£38.89 £32.41
280	BP1960035SM Available to backorder	Washer-0.625(0.64Idx1	£4.72 £3.93
290	BP2860744SM Available to backorder	Hex Head	£8.11 £6.76
300	BP1738051YP Available to backorder	Drag (With Bearing)	£54.89 £45.74
330	BP1735595YP Available to backorder	Brake Lock Latch	£9.62 £8.02
335	BP7014296YP Available to backorder	Shim Washer	£3.77 £3.14
340	SN703851 Available to backorder	5/16-18X1.15 Bolt	£4.06 £3.38
350	BP1727935SM Available to backorder	Spacer-Pivot 0.330Id	£5.74 £4.78
360	BP1736714AYP Available to backorder	Forward Pedal Assembly	£87.96 £73.30
370	BP1727246SM Available to backorder	Reverse Pedal	£16.94 £14.12
380	SN703446 Available to backorder	5/16-18X1.25 G5 Bolt	£3.19 £2.66
390	BP1728024SM Available to backorder	Foot Pedal Spacer	£5.36 £4.47
410	SN885591YP Available to backorder	Pedal Pivot Bracket	£17.89 £14.91
420	BP1727911ASM Available to backorder	Bearing Plate	£9.79 £8.16
470	SN1737957YP Available to backorder	Lift Shaft Assembly	£60.48 £50.40
490	BP1761009YP Available to backorder	Sector Support Bracket	£39.83 £33.19
500	SN1751110YP Available to backorder	Steering Gear	£60.83 £50.69
510	BP1761011CJYP Available to backorder	Sector Gear Plate	£9.79 £8.16
530	BP703185 Available to backorder	Rhssnb	£3.12 £2.60
710	BP703570 Available to backorder	Hex Head	£3.19 £2.66
720	BP703332 Available to backorder	5/16 Washer	£2.83 £2.36
730	BP704067 Available to backorder	Hex Flng	£2.98 £2.48
1060	BP1761010YP Available to backorder	Steering Support	£24.62 £20.52
