Echo SPX200 2691248-00 Housing, Arbors and Blades Group

Name: Echo SPX200 2691248-00 Housing, Arbors and Blades Group
SKU: spx200_2691248_00_housing_arbors_and_blades_group-group
Price: 2.24 GBP
Availability: InStock

Part No. spx200_2691248_00_housing_arbors_and_blades_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo SPX200 2691248-00 Housing, Arbors and Blades Group

Description

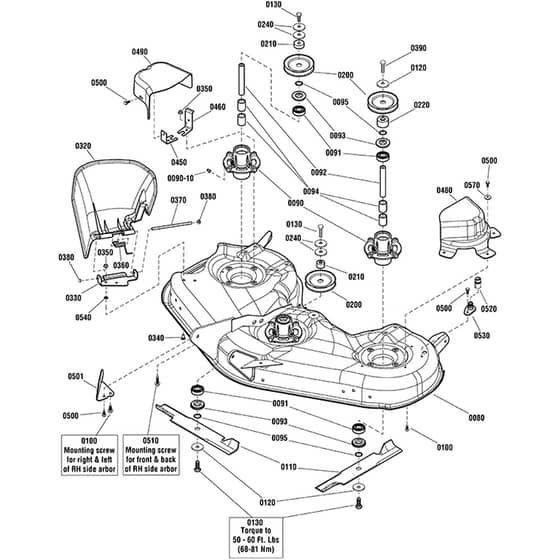

Echo SPX200 2691248-00 - Housing, Arbors and Blades Group - Parts Diagram

	Part No.	Details
80	BP1687625YP Available to backorder	Mower Deck	£451.64 £376.37
90	BP1735573YP In stock	Spindle W/Fitting Housing	£51.49 £42.91
91	SN1735399YP Available to backorder	Ball	£10.09 £8.41
92	SN1760276YP Available to backorder	Spindle Shaft	£25.34 £21.12
93	SN84003166 Available to backorder	Arbor Shield	£8.23 £6.86
94	BP1735328YP Available to backorder	Bearing Spacer	£5.15 £4.29
95	SN1960766YP Available to backorder	Self Locking Ring	£4.03 £3.36
100	BP704146 Available to backorder	Hex Washer Head	£3.62 £3.02

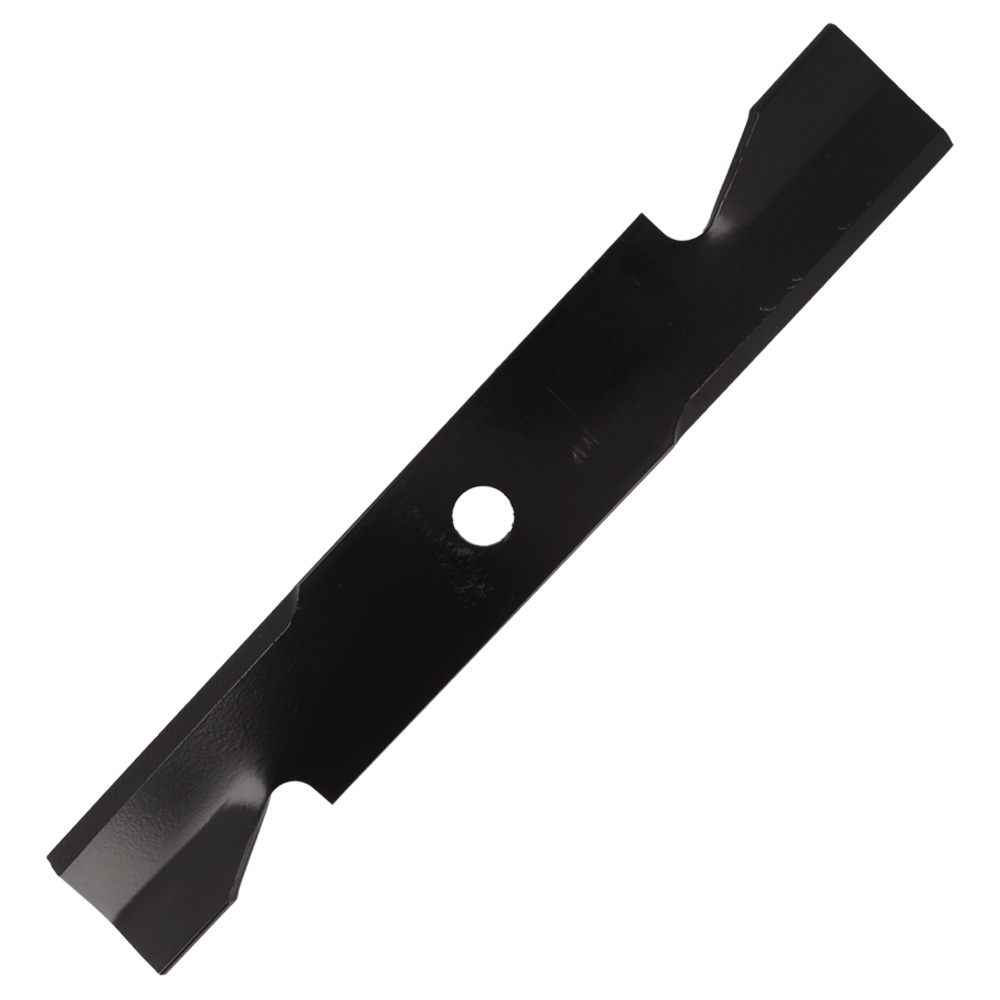

110	BP1739889AYP Available to backorder	46" Mower Blade	£38.05 £31.71
120	SY1656916SM In stock	Spring 0.475I Washer	£7.81 £6.51
130	SY1920676SM Available to backorder	Hex Head	£4.97 £4.14

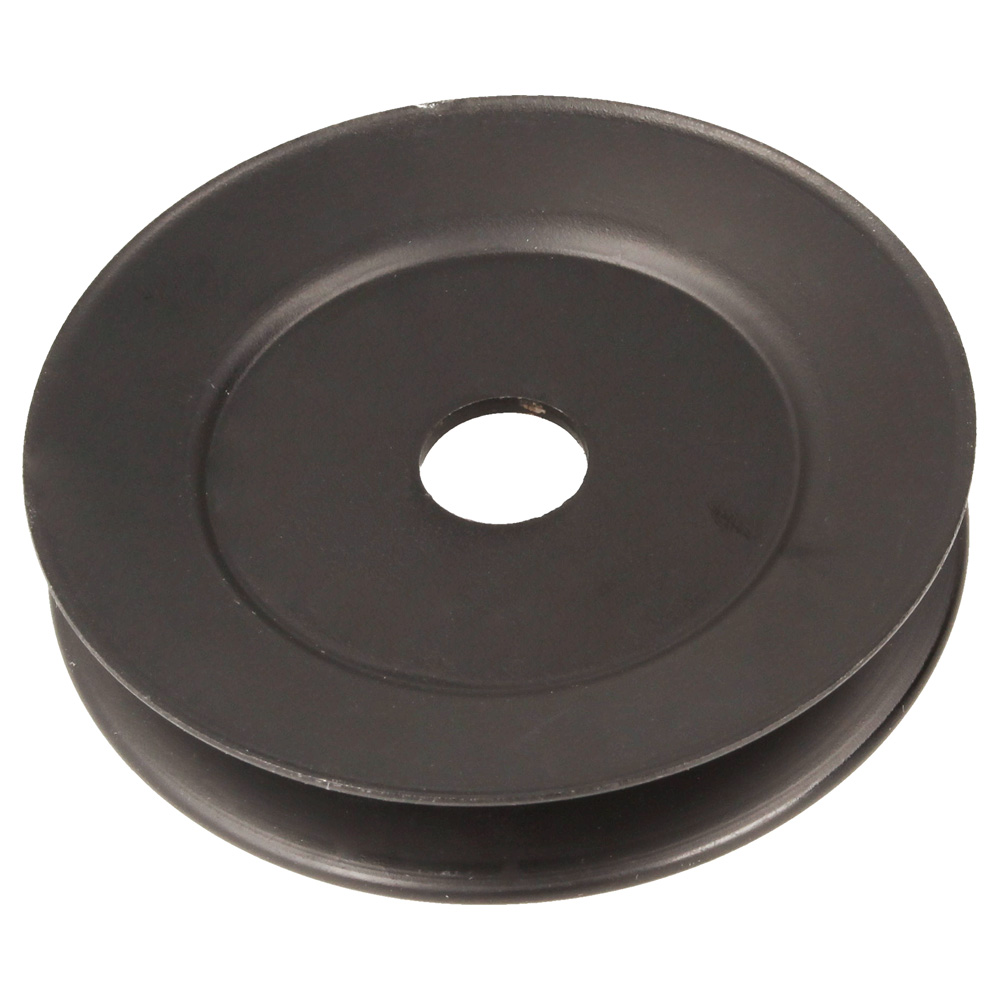

200	SN1735686YP In stock	4.6	£16.61 £13.84
210	BP1735579YP Available to backorder	Lower Drive Spacer	£6.60 £5.50
220	BP1736445YP Available to backorder	Pulley Spacer	£10.28 £8.57
240	BP1960769YP Available to backorder	Belleville Washer	£4.34 £3.62
320	SN1754745YP Available to backorder	46/52" Deflector	£89.88 £74.90
330	SN1758935AYP Available to backorder	Support Bracket	£54.83 £45.69
340	SN703125 Available to backorder	Carriage	£2.77 £2.31
350	BP703409 Available to backorder	5/16-18	£2.98 £2.48
360	SN1759042YP Available to backorder	Torsion Spring	£10.14 £8.45
370	SN1759064YP Available to backorder	Deflector Rod	£6.74 £5.62
380	BP704028 Available to backorder	Push	£3.77 £3.14
390	SN703171 Available to backorder	Hex Head	£3.85 £3.21
450	BP1736518BMYP Available to backorder	Belt Cover	£18.48 £15.40
460	BP1736519BMYP Available to backorder	Belt Cover	£17.03 £14.19
480	SN1735750YP Available to backorder	Belt	£36.35 £30.29
490	SN1735752YP Available to backorder	Belt	£30.79 £25.66
501	BP1737279BMYP Available to backorder	Pinchoff Baffle	£24.41 £20.34
510	BP1930600SM In stock	Hex Washer Head	Was £4.14 £3.45 Special Price £3.18 £2.65
520	SN1756246YP Available to backorder	Washout Port Connector	£6.60 £5.50
530	SN1756247YP Available to backorder	Washout Port Adapter	£5.44 £4.53
540	SN703297 Available to backorder	Gr5	£2.69 £2.24
570	SN703302 Available to backorder	Flat	£2.75 £2.29
199010	BP703907 Available to backorder	.250 Dr Lube Fitting	£4.00 £3.33
