Echo SPX200 2691248-00 Frame and Front Axle Group

Name: Echo SPX200 2691248-00 Frame and Front Axle Group
SKU: spx200_2691248_00_frame_and_front_axle_group-group
Price: 2.36 GBP
Availability: InStock

Part No. spx200_2691248_00_frame_and_front_axle_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo SPX200 2691248-00 Frame and Front Axle Group

Description

Echo SPX200 2691248-00 - Frame and Front Axle Group - Parts Diagram

	Part No.	Details
10	BP1734135SM Available to backorder	Hub Cap	£4.78 £3.98
20	BP1611710SM Available to backorder	3/4 E-Ring	£3.91 £3.26
30	BP2860183SM Available to backorder	Flat	£3.91 £3.26
40	SN1761021BMYP Available to backorder	Front Axle	£140.04 £116.70
50	BP1730186SM Available to backorder	Axle Pivot Bushing	£5.96 £4.97
60	BP1721918ASM Available to backorder	Mower	£49.18 £40.98

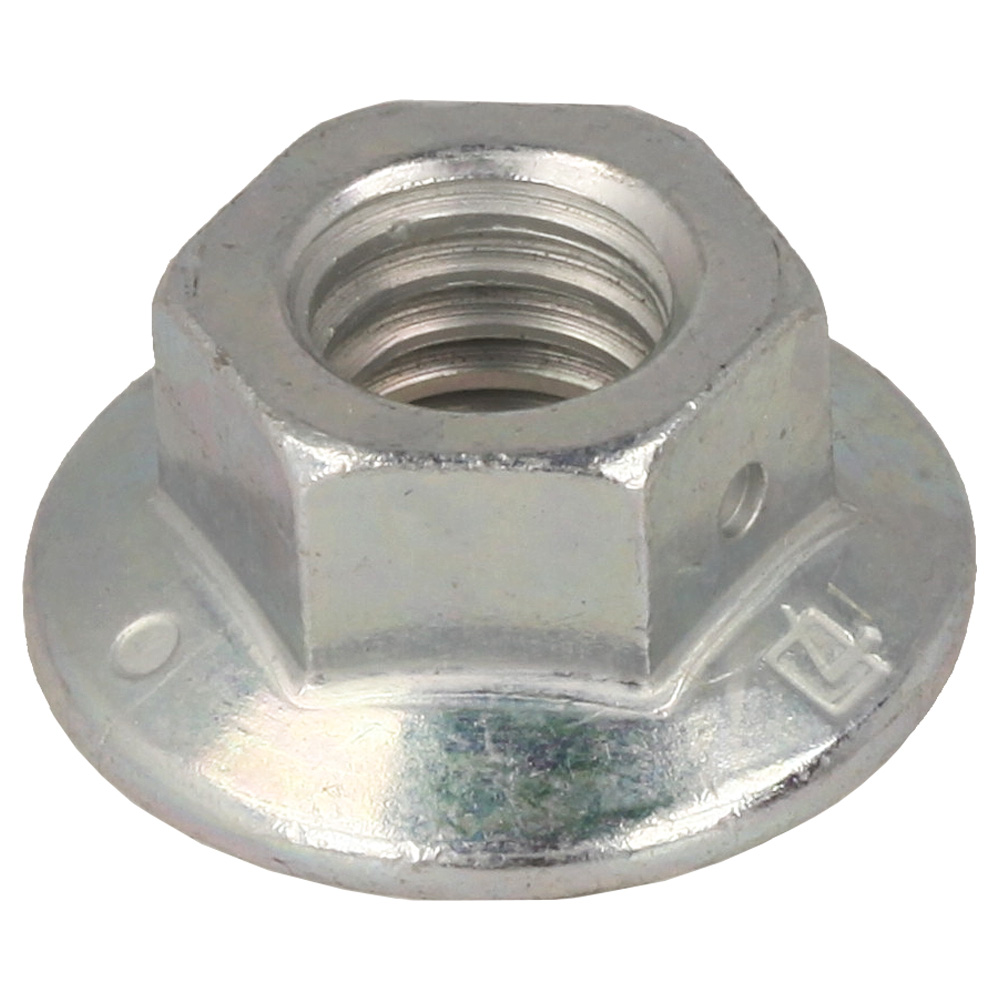

70	BP1960652SM Available to backorder	Hex Flange	£5.36 £4.47
80	BP1727902SM Available to backorder	Axle Support Plate	£47.94 £39.95
90	BP2860646SM Available to backorder	Hex Flange	£11.44 £9.53
100	BP703409 Available to backorder	5/16-18	£2.98 £2.48
110	BP1960032SM Available to backorder	Hex Head	£6.02 £5.02
120	BP1731912SM Available to backorder	3/8 Id X 5/8 Od X 1/2 Bushing	£3.60 £3.00
130	SN1751964BMYP Available to backorder	Tie Rod	£38.16 £31.80
135	BP1960703SM Available to backorder	5/8 Washer	£3.19 £2.66
140	BP1727872ASM Available to backorder	R.H. Spindle Assembly	£115.20 £96.00
160	BP1751922YP Available to backorder	L.H. Spindle Assembly	£128.64 £107.20
190	BP1727904SM Available to backorder	Front Footrest	£22.20 £18.50
210	BP1750989YP Available to backorder	Rear Frame Support	£46.63 £38.86
210	SN1758690YP Available to backorder	Rear Frame Support	£77.28 £64.40
220	BP703949 Available to backorder	Hex Washer Head	£3.12 £2.60
230	BP703354 Available to backorder	5/16-18 Screw	£3.34 £2.78
240	SN885536AYP Available to backorder	Front Footrest L.H. Support	£35.63 £29.69
280	BP1960035SM Available to backorder	Washer-0.625(0.64Idx1	£4.72 £3.93
290	BP2860744SM Available to backorder	Hex Head	£8.11 £6.76
300	BP1738051YP Available to backorder	Drag (With Bearing)	£54.89 £45.74
330	BP1735595ASM Available to backorder	Brake Lock Latch	£11.96 £9.97
335	BP7014296YP Available to backorder	Shim Washer	£3.77 £3.14
340	BP703851 Available to backorder	Shoulder	£4.20 £3.50
350	BP1727935SM Available to backorder	Spacer-Pivot 0.330Id	£5.74 £4.78
360	BP1736714AYP Available to backorder	Forward Pedal Assembly	£87.96 £73.30
370	BP1727246SM Available to backorder	Reverse Pedal	£16.94 £14.12
380	BP703446 Available to backorder	Carriage	£3.34 £2.78
390	BP1728024SM Available to backorder	Foot Pedal Spacer	£5.36 £4.47
400	SN1728025BMYP Available to backorder	Rmo Switch Actuator	£9.06 £7.55
410	SN885591YP Available to backorder	Pedal Pivot Bracket	£17.89 £14.91
420	BP1727911ASM Available to backorder	Bearing Plate	£9.79 £8.16
430	BP1727282SM Available to backorder	Battery Support	£34.55 £28.79
470	SN1737957YP Available to backorder	Lift Shaft Assembly	£60.48 £50.40
500	SN1751110YP Available to backorder	Steering Gear	£60.83 £50.69

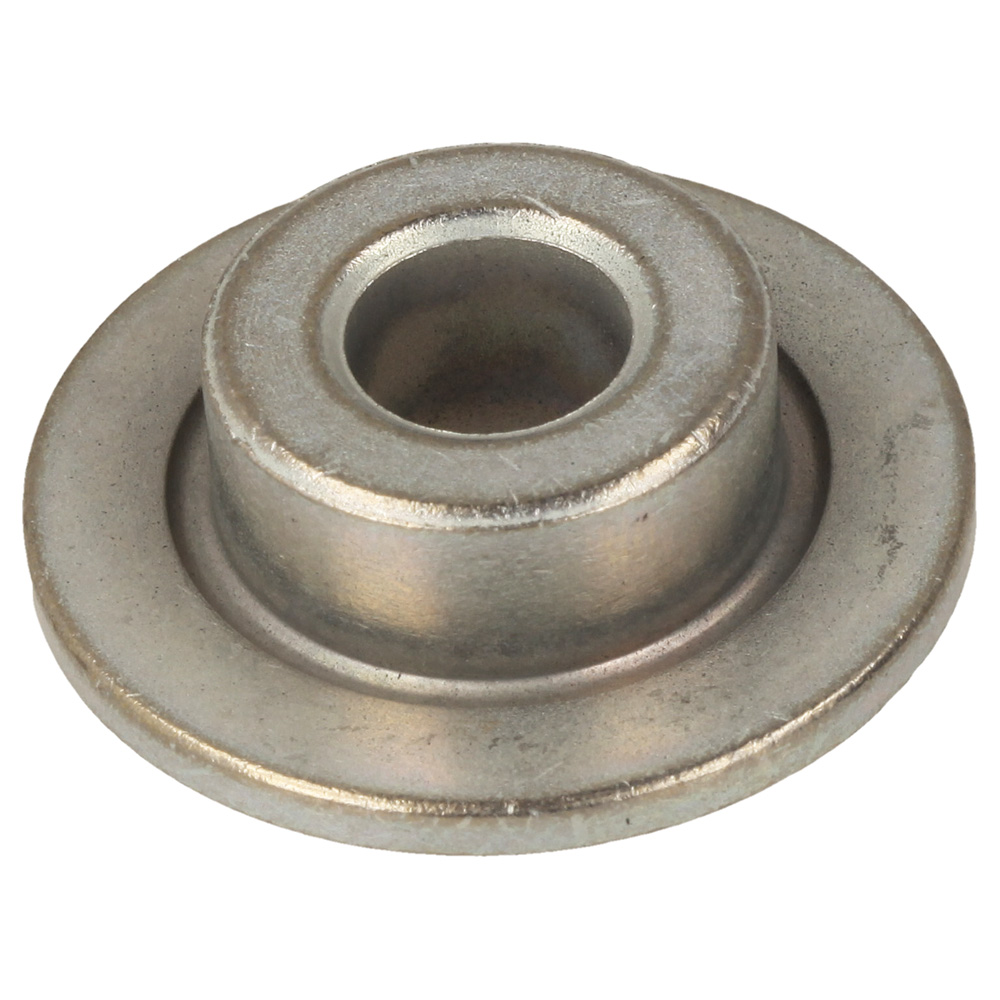

510	BP1728122SM Available to backorder	Sector Gear Spacer	£4.49 £3.74
520	BP704038 Available to backorder	Hex Flange	£3.41 £2.84
530	BP703893 In stock	Hex Flange	£4.06 £3.38
710	BP703570 Available to backorder	Hex Head	£3.19 £2.66
720	BP703332 Available to backorder	5/16 Washer	£2.83 £2.36
730	BP704067 Available to backorder	Hex Flange	£2.98 £2.48
194010	BP703907 Available to backorder	.250 Dr Lube Fitting	£4.00 £3.33
