Echo SPX200 2691248-00 46" (117cm) Mower Deck-Clutch Group

Name: Echo SPX200 2691248-00 46" (117cm) Mower Deck-Clutch Group
SKU: spx200_2691248_00_46_117cm_mower_deck_clutch_group-group
Price: 2.48 GBP
Availability: InStock

Part No. spx200_2691248_00_46_117cm_mower_deck_clutch_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo SPX200 2691248-00 46" (117cm) Mower Deck-Clutch Group

Description

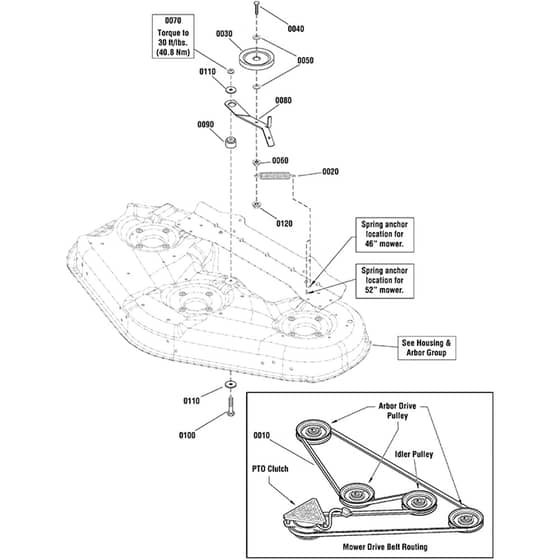

Echo SPX200 2691248-00 - 46" (117cm) Mower Deck-Clutch Group - Parts Diagram

	Part No.	Details

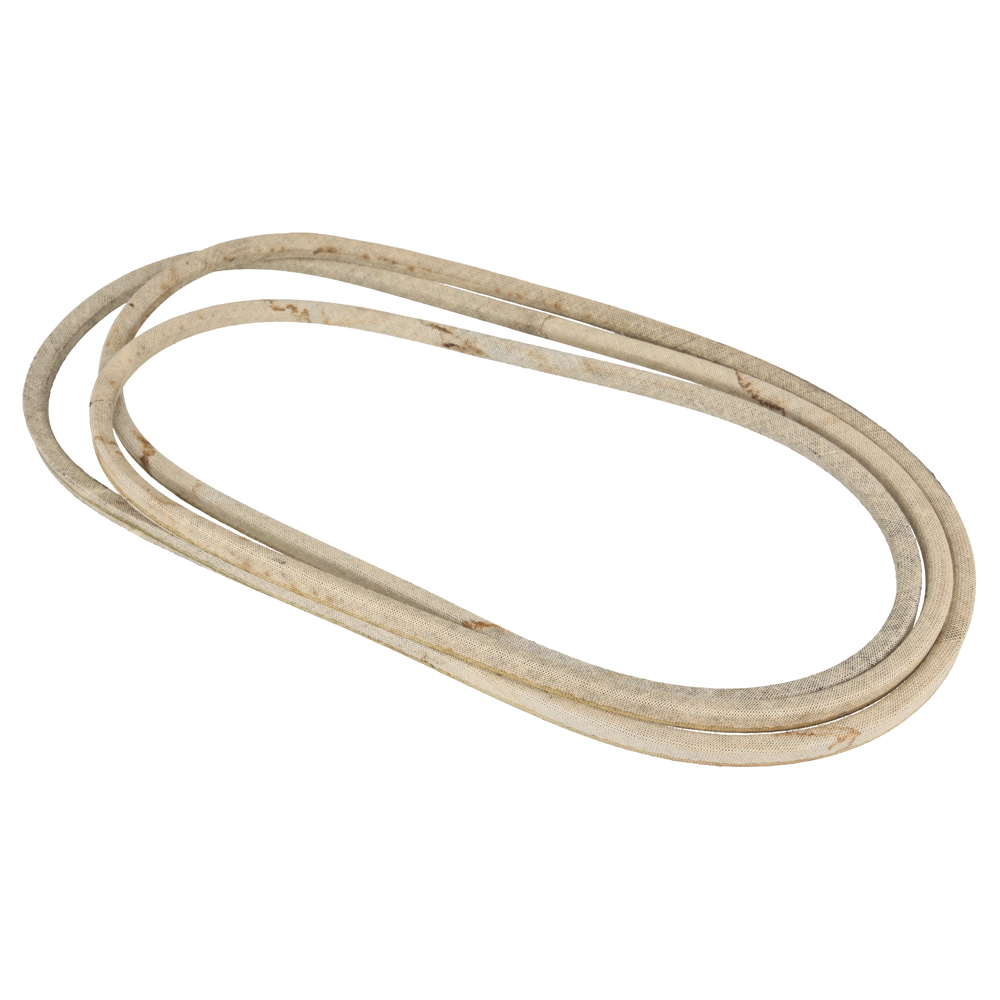

10	SN1719911SM Available to backorder	Ha	£96.12 £80.10
20	SY1715772SM Available to backorder	Extension Spring	£9.71 £8.09
30	SN1736540YP Available to backorder	Idler Pulley	£30.06 £25.05
40	BP1933685SM Available to backorder	Hex Head	£4.92 £4.10
50	BP704128 Available to backorder	3/8 Washer	£3.19 £2.66
60	SN703333 Available to backorder	Hex	£2.98 £2.48
70	BP1960339SM Available to backorder	Hex Flange	£3.91 £3.26
80	SN1736551AYP Available to backorder	Idler Arm	£26.59 £22.16
90	BP1729007SM Available to backorder	3/8 Id X 1-1/2 Od X 1" Spacer	£9.79 £8.16
100	SN703589 Available to backorder	Hex Head	£3.46 £2.88
110	BP703591 Available to backorder	3/8 Washer	£3.77 £3.14
120	BP703347 Available to backorder	Center Lock	£3.12 £2.60
