Echo SPX110 2691487-02 Seat Group

Description

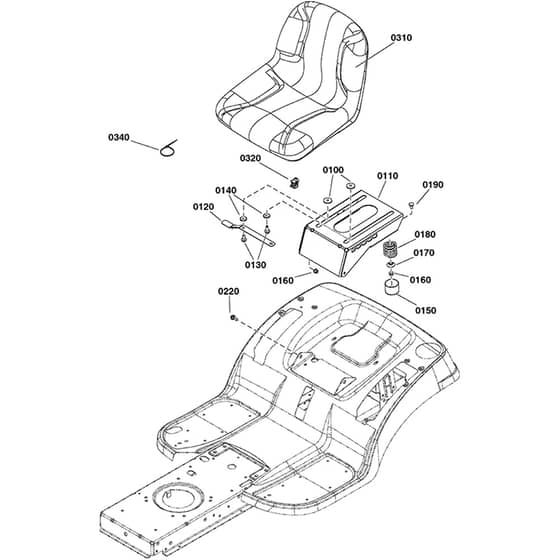

Echo SPX110 2691487-02 - Seat Group - Parts Diagram

	Part No.	Details
100	BP1731300SM Available to backorder	5/16 Id X 1-1/4 Od X 5/16" Spacer	£4.56 £3.80
110	BP1755767BMYP Available to backorder	Seat Support	£104.04 £86.70
120	BP1727268BMYP Available to backorder	Seat Latch	£11.76 £9.80
130	BP1930595SM Available to backorder	Hex Head Flange Lock	£3.92 £3.27
140	BP703298 Available to backorder	5/16 Washer	£3.42 £2.85
150	BP1704724SM Available to backorder	Spring	£6.30 £5.25
160	SN703115 Available to backorder	Nut	£2.83 £2.36
170	BP1709256SM Available to backorder	Spring	£3.92 £3.27
180	BP1704728SM Available to backorder	Compression	£7.78 £6.48
190	BP703225 Available to backorder	Bolt	£3.08 £2.57
220	SN703851 Available to backorder	5/16-18X1.15 Bolt	£4.06 £3.38
320	BP7023354YP In stock	Seat Switch	£9.60 £8.00
340	BP703586 Available to backorder	Self Locking Tie	£3.65 £3.04
