Echo SPX110 2691487-02 Housing, Arbors and Blades Group

Description

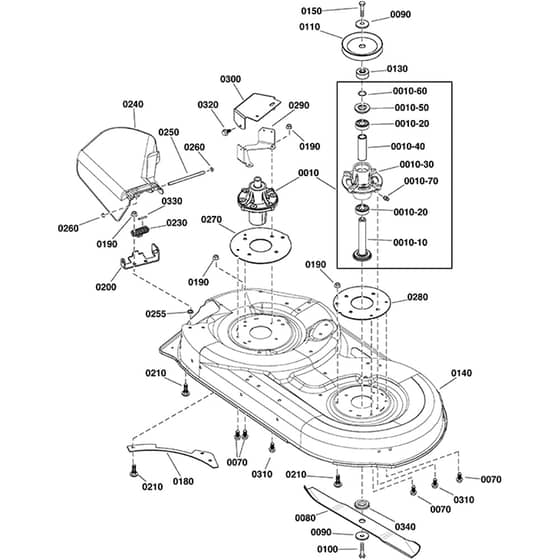

Echo SPX110 2691487-02 - Housing, Arbors and Blades Group - Parts Diagram

	Part No.	Details
10	BP84003175 Available to backorder	Arbor Assembly	£79.56 £66.30
70	SN704146 Available to backorder	Hex	£3.26 £2.72
80	SN1752100AYP Available to backorder	42” Mower Blade	£45.66 £38.05
90	SY1656916SM In stock	Spring 0.475I Washer	£7.81 £6.51
110	SN1737835YP Available to backorder	V	£22.39 £18.66
130	BP1737457YP Available to backorder	Pulley Spacer	£9.49 £7.91
140	SN1687779YP Available to backorder	42" Mower	£518.40 £432.00
150	SN703579 Available to backorder	Hex Head	£4.49 £3.74
180	BP092426E701MA Available to backorder	Rear Plate	£13.69 £11.41
190	BP703409 Available to backorder	5/16-18	£2.98 £2.48
200	BP094956E701MA Available to backorder	Bracket - Hinge	£25.28 £21.07
210	BP703185 Available to backorder	Rhssnb	£3.12 £2.60
230	BP0166X4MA Available to backorder	Torsion Spring	£6.52 £5.43
240	BP094707MA Available to backorder	Deflector & Support Assembly	£149.64 £124.70
250	BP094957ZMA Available to backorder	Deflector Rod	£7.61 £6.34
255	SN703297 Available to backorder	Gr5	£2.69 £2.24
260	SN703948 Available to backorder	3/8 Pushnut	£3.12 £2.60
270	SN1750457BMYP Available to backorder	Spindle	£30.49 £25.41
280	SN1750458BMYP Available to backorder	Spindle	£33.46 £27.88
290	BP1752065BMYP Available to backorder	Guard Mount Bracket	£25.20 £21.00
300	BP1758017BMYP Available to backorder	Mower Spindle Cover	£30.20 £25.17
310	BP1930600SM In stock	Hex Washer Head	Was £4.14 £3.45 Special Price £3.18 £2.65
320	BP26X263MA Available to backorder	Screw.25-20 S-T	£4.20 £3.50
330	BP5023489SM Available to backorder	Protector	£3.12 £2.60
340	BP1755892YP Available to backorder	Blade Adapter Spacer	£25.86 £21.55
1020	SN1735399YP Available to backorder	Ball	£10.09 £8.41
1030	SY84003654 In stock	Housing Assembly	£49.27 £41.06
1040	BP84003167 Available to backorder	Bearing Spacer	£10.08 £8.40
1050	SN84003166 Available to backorder	Arbor Cover	£8.23 £6.86
1060	SN1960766YP Available to backorder	Self Locking Ring	£4.03 £3.36
1070	BP703907 Available to backorder	.250 Dr Lube Fitting	£4.00 £3.33
201010	BP84003170 Available to backorder	Spindle Shaft	£24.48 £20.40
