Echo RPX360 2691510-00 Transmission Group

Description

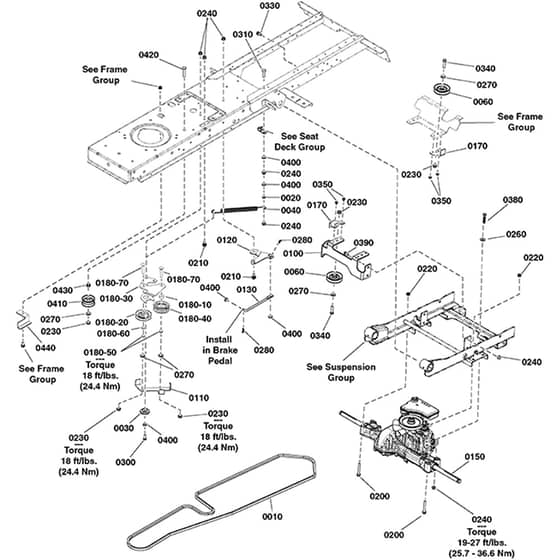

Echo RPX360 2691510-00 - Transmission Group - Parts Diagram

	Part No.	Details

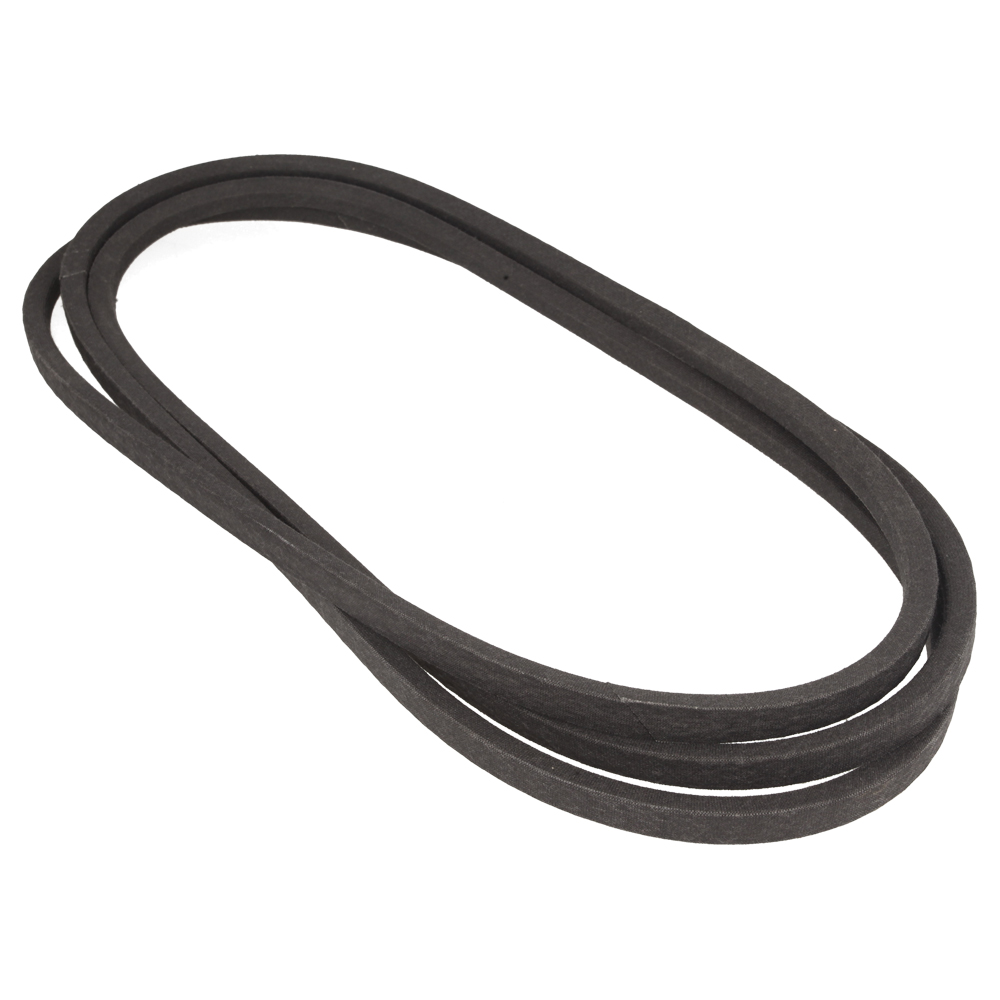

10	SN84001118 Available to backorder	Rdlt	£87.60 £73.00
20	BP5102463YP Available to backorder	.33 X .50 X .25	£4.92 £4.10
30	BP1727935SM Available to backorder	Spacer-Pivot 0.330Id	£5.74 £4.78
40	BP84002611 Available to backorder	Extension Spring	£10.00 £8.33
100	BP84002636 Available to backorder	Transmission Pulley Bracket	£71.04 £59.20
110	BP84002637 Available to backorder	Belt Guide Bracket	£30.20 £25.17
120	BP84002638 Available to backorder	Clutch Pivot Assembly	£59.52 £49.60
130	BP84002639 Available to backorder	Clutch Rod	£16.00 £13.33
150	BP84002640 Available to backorder	Tuff Torq K46Ec Transmission	£1,233.60 £1,028.00
170	BP84002645 Available to backorder	Belt Guide	£7.91 £6.59
200	BP1960586SM Available to backorder	Hex Flange	£4.82 £4.02
210	SN703851 Available to backorder	5/16-18X1.15 Bolt	£4.06 £3.38
220	BP703409 Available to backorder	5/16-18	£2.98 £2.48
230	SN703333 Available to backorder	3/8-16 Nut	£2.98 £2.48
240	SN703115 Available to backorder	Nut	£2.83 £2.36
260	BP703118 Available to backorder	Flat	£3.34 £2.78
270	BP703878 Available to backorder	Flat Washer	£3.04 £2.53
280	SN703430 Available to backorder	13X1.19 Pin	£2.75 £2.29
300	SN703585 Available to backorder	Hex Head	£2.98 £2.48
310	SN703296 Available to backorder	5/16-18X1.5 Bolt	£3.19 £2.66
330	BP703354 Available to backorder	5/16-18 Screw	£3.34 £2.78
340	SN703406 Available to backorder	3/8-16X1.5 Capscrew	£3.26 £2.72
350	SN703583 Available to backorder	Taptite	£2.98 £2.48
380	SN704288 Available to backorder	Hex Head	£3.04 £2.53
390	SN704065 Available to backorder	5/16-18X.875 Bolt	£3.19 £2.66
400	BP703332 Available to backorder	5/16 Washer	£2.83 £2.36

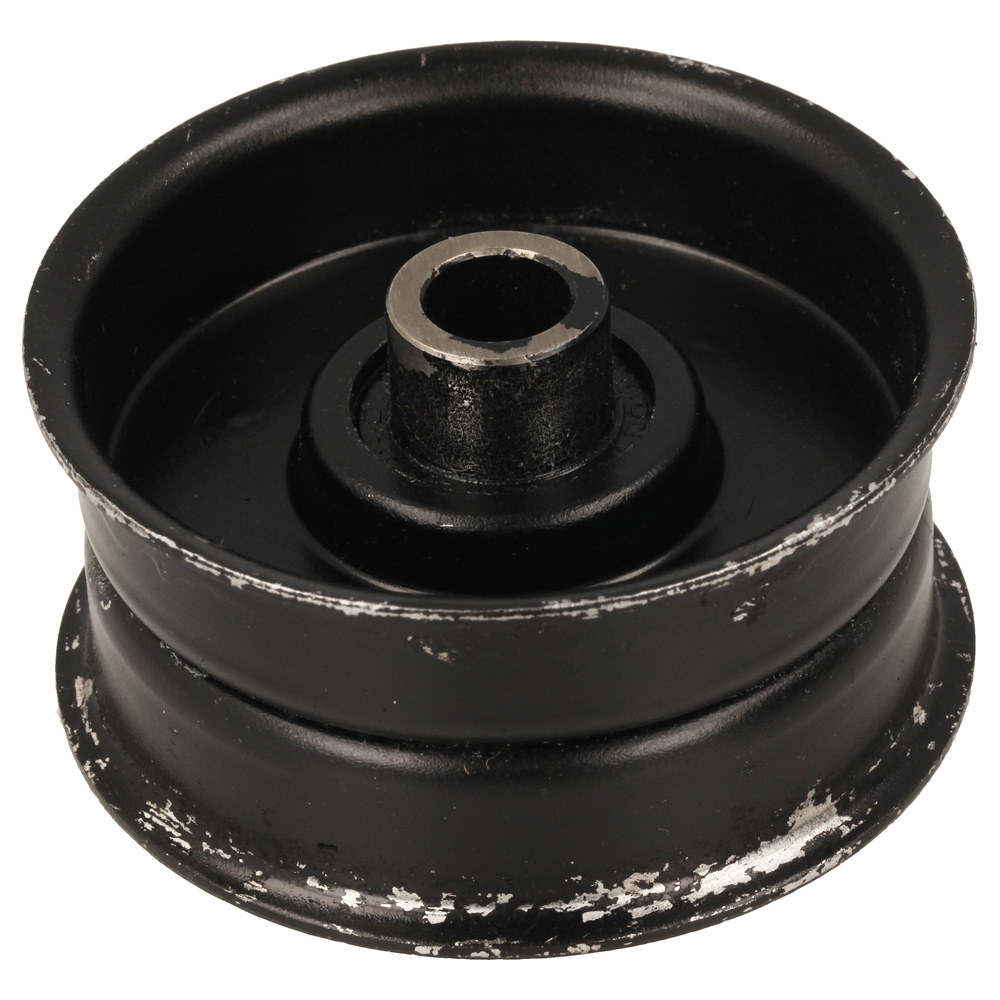

410	SY1668477SM Available to backorder	Idler	£23.89 £19.91
420	BP1960315SM Available to backorder	3/8-16 X 2 Carriage Bolt	£6.89 £5.74
440	BP84002648 Available to backorder	Belt	£18.62 £15.52
18010	BP1667811SM Available to backorder	Spacer	£4.28 £3.57

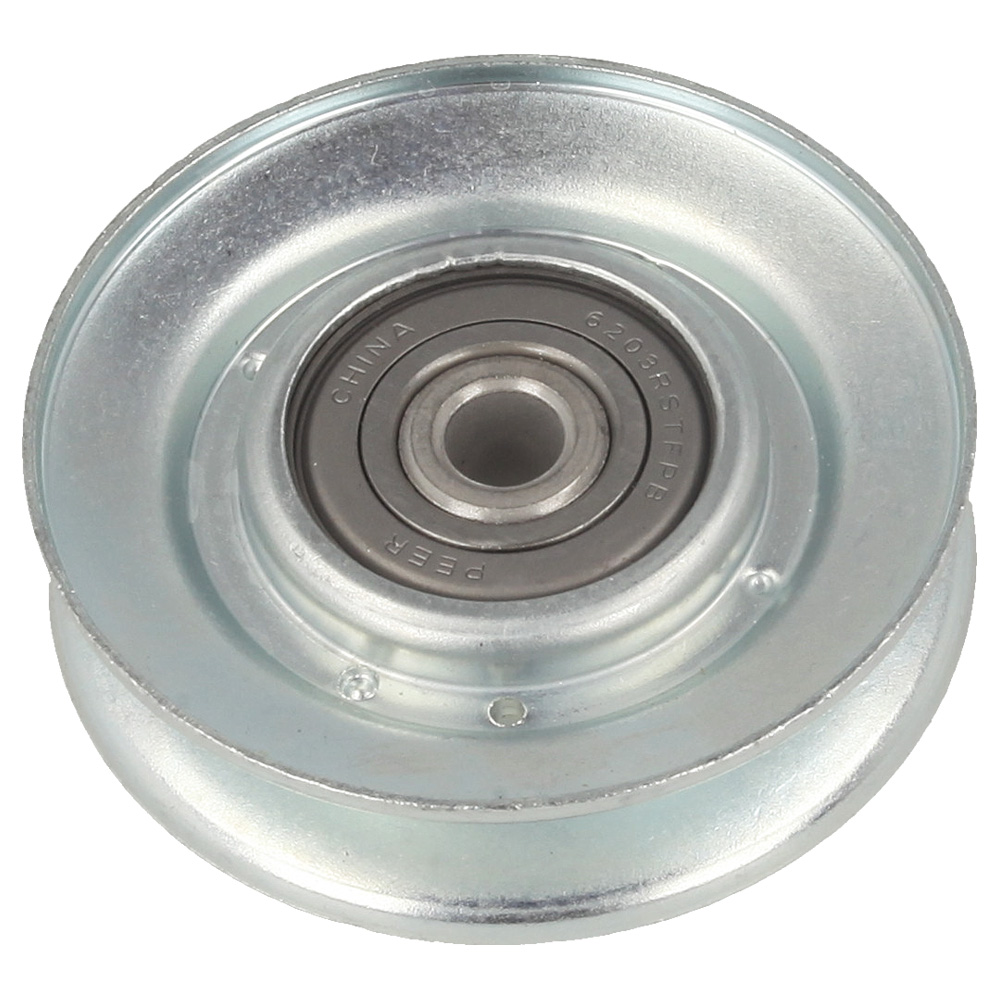

18020	SN1760012YP Available to backorder	Idler Pulley	£46.46 £38.72
18030	BP84003365 Available to backorder	Idler Bracket	£41.05 £34.21

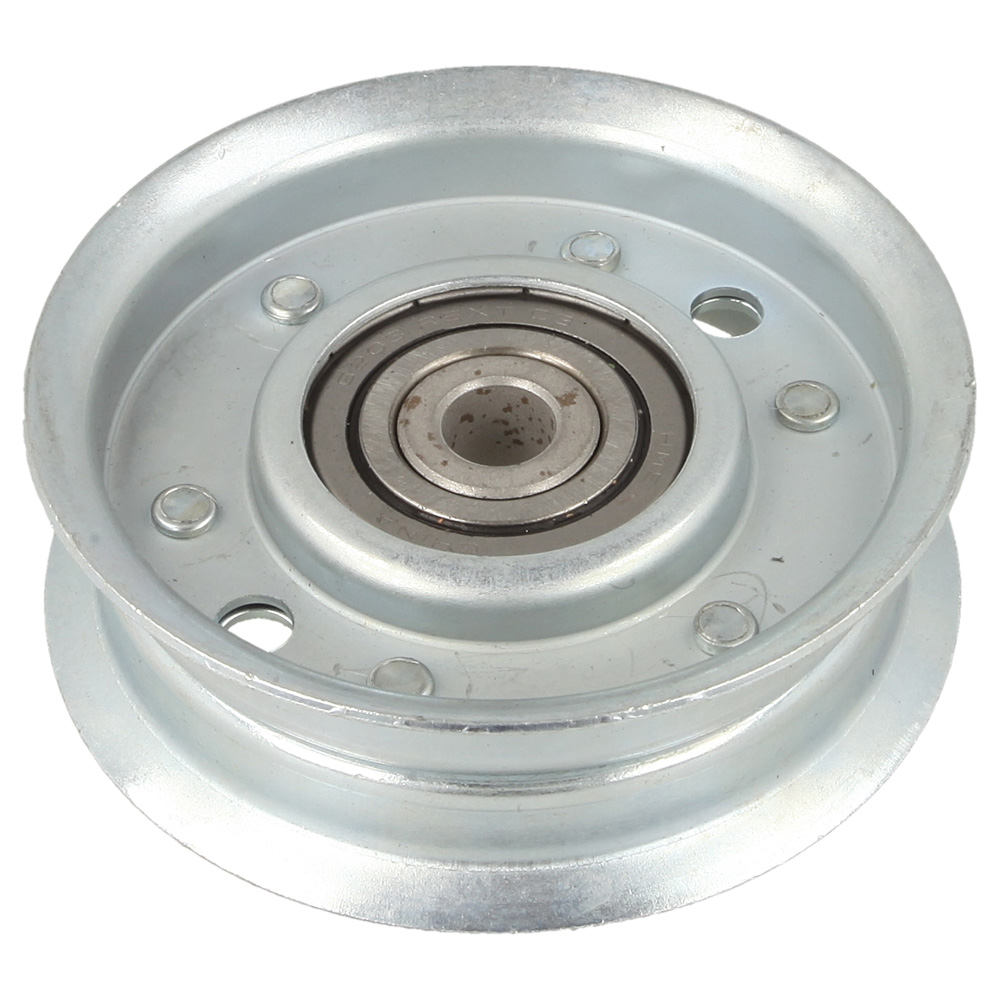

18040	BP2154534SM Available to backorder	Pulley Assembly Idler	£37.37 £31.14
