Echo RPX360 2691510-00 Controls Group

Echo RPX360 2691510-00 Controls Group

Part No. rpx360_2691510_00_controls_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo RPX360 2691510-00 Controls Group

Echo RPX360 2691510-00 Controls Group

Description

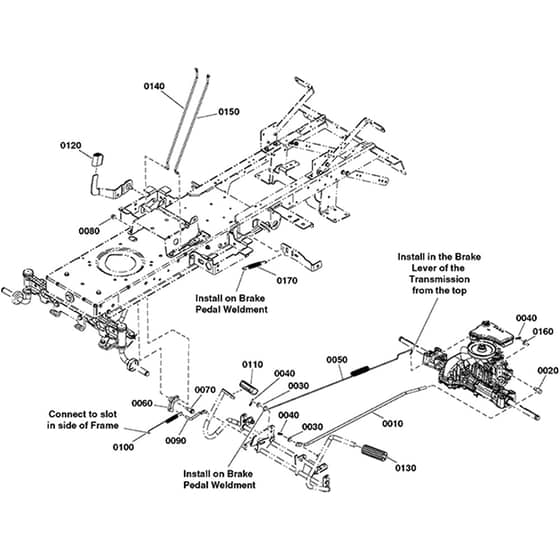

Echo RPX360 2691510-00 - Controls Group - Parts Diagram

Ref.		Img.	Part No.	Details
	10		BP84002680 Available to backorder	Rod		£42.58 £35.48
	20		BP84002684 Available to backorder	Adjustment Nut		£20.36 £16.97
	30		BP703332 Available to backorder	5/16 Washer		£2.83 £2.36
	40		SN703430 Available to backorder	13X1.19 Pin		£2.75 £2.29
	50		BP84002686 Available to backorder	Brake Spring		£27.89 £23.24
	60		BP1727897SM Available to backorder	Cruise Latch		£9.06 £7.55
	70		SY1728975SM Available to backorder	Shoulder		£12.40 £10.33
	80		SN703115 Available to backorder	Nut		£2.83 £2.36
	90		BP1727899SM Available to backorder	Cruise Latch		£7.61 £6.34
	100		BP2159181SM Available to backorder	Extension		£7.03 £5.86
	120		BP1727259SM Available to backorder	Foot Pedal		£7.54 £6.28
	130		SY1727261SM Available to backorder	Pedal-Brake Black Rub		£9.71 £8.09
	140		BP1739877YP Available to backorder	Cruise Latch		£20.57 £17.14
	150		BP1739876YP Available to backorder	Parking Brake		£15.64 £13.03
	160		BP703878 Available to backorder	Flat Washer		£3.04 £2.53
	170		BP84002687 Available to backorder	Extension Spring		£5.44 £4.53

Description

Echo RPX360 2691510-00 - Controls Group - Parts Diagram
