Echo RPX360 2691510-00 Collector Group

Description

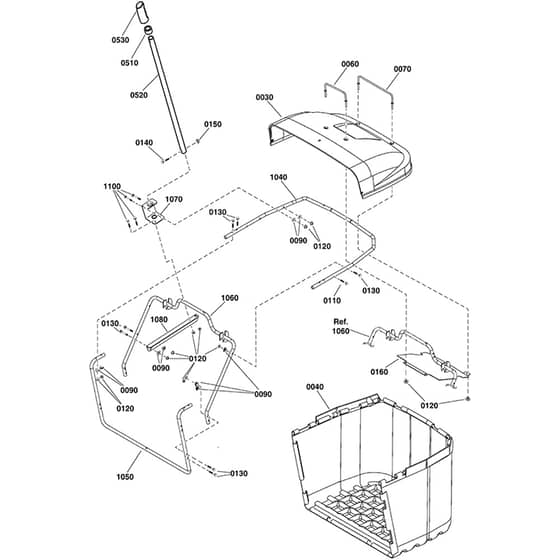

Echo RPX360 2691510-00 - Collector Group - Parts Diagram

	Part No.	Details
30	SN1758510YP Available to backorder	Collector Cover	£426.23 £355.19
40	SN1758532YP Available to backorder	Collector Bag	£362.36 £301.97
60	BP84002986 Available to backorder	Front Handle	£13.86 £11.55
70	BP84002988 Available to backorder	Back Handle	£16.52 £13.77
90	BP880615YP Available to backorder	Washer	£4.48 £3.73
110	BP885564YP Available to backorder	Torx	£3.44 £2.87
120	SN703115 Available to backorder	Nut	£2.83 £2.36
130	SN706883 Available to backorder	5/16-18 X 2 Screw	£6.02 £5.02
140	BP001X94MA Available to backorder	Hex	£3.88 £3.23
150	BP015X89MA Available to backorder	Hex Flange	£4.02 £3.35
160	SN1758926BMYP Available to backorder	Collector Shield	£85.01 £70.84
510	BP885433YP Available to backorder	Handle Adjuster	£4.76 £3.97
520	BP885518AYP Available to backorder	Bagger Handle	£75.88 £63.23
530	SY1723359SM Available to backorder	Grip	£11.74 £9.78
1040	SN1758255BMYP Available to backorder	Bagger Support	£128.03 £106.69
1050	SN1758256BMYP Available to backorder	Bagger Support	£150.56 £125.47
1060	SN1758329BMYP Available to backorder	Bagger Support Frame	£388.28 £323.57
1070	SN1758357BMYP Available to backorder	Dump Handle Support	£24.56 £20.47
1080	SN1758659BMYP Available to backorder	Bracket Dump Handle	£68.36 £56.97
1100	SN703296 Available to backorder	5/16-18X1.5 Bolt	£3.19 £2.66
