Snapper RPX310 2691492 42" (107cm) Mower Deck-Clutch Group

Name: Snapper RPX310 2691492 42" (107cm) Mower Deck-Clutch Group
SKU: rpx310_2691492_42_107cm_mower_deck_clutch_group-group
Price: 2.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper RPX310 2691492 42" (107cm) Mower Deck-Clutch Group

Description

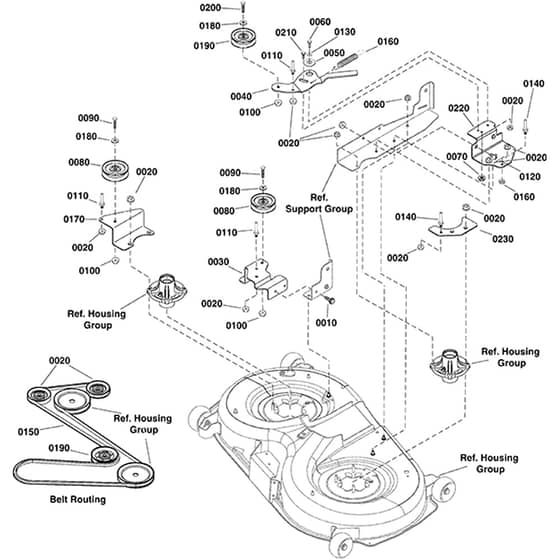

Snapper RPX310 2691492 - 42" (107cm) Mower Deck-Clutch Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	SN703228 Available to backorder	5/16-18 X .75 Screw	£3.68 £3.07
20	BP703409 Available to backorder	5/16-18	£2.88 £2.40
30	BP84003049 Available to backorder	Idler Bracket	£48.10 £40.08
40	BP1758759BMYP Available to backorder	Idler Arm	£70.56 £58.80
50	BP1727935SM Available to backorder	Spacer-Pivot 0.330Id	£5.54 £4.62
60	SN703585 Available to backorder	Hex Head	£2.98 £2.48
70	BP704067 Available to backorder	Hex Flng	£3.24 £2.70
80	BP885482YP Available to backorder	Pulley Idler	£24.66 £20.55
90	SN703589 Available to backorder	3/8-16X2 Capscrew	£3.12 £2.60
100	BP703330 Available to backorder	Hex Flange Whiz-Lock	£3.34 £2.78
110	BP885534YP Available to backorder	Belt Guide	£12.32 £10.27
120	BP703185 Available to backorder	Rhssnb	£3.02 £2.52
130	BP703332 Available to backorder	5/16 Washer	£2.74 £2.28
140	BP1401105MA Available to backorder	Long Belt Guide	£5.04 £4.20

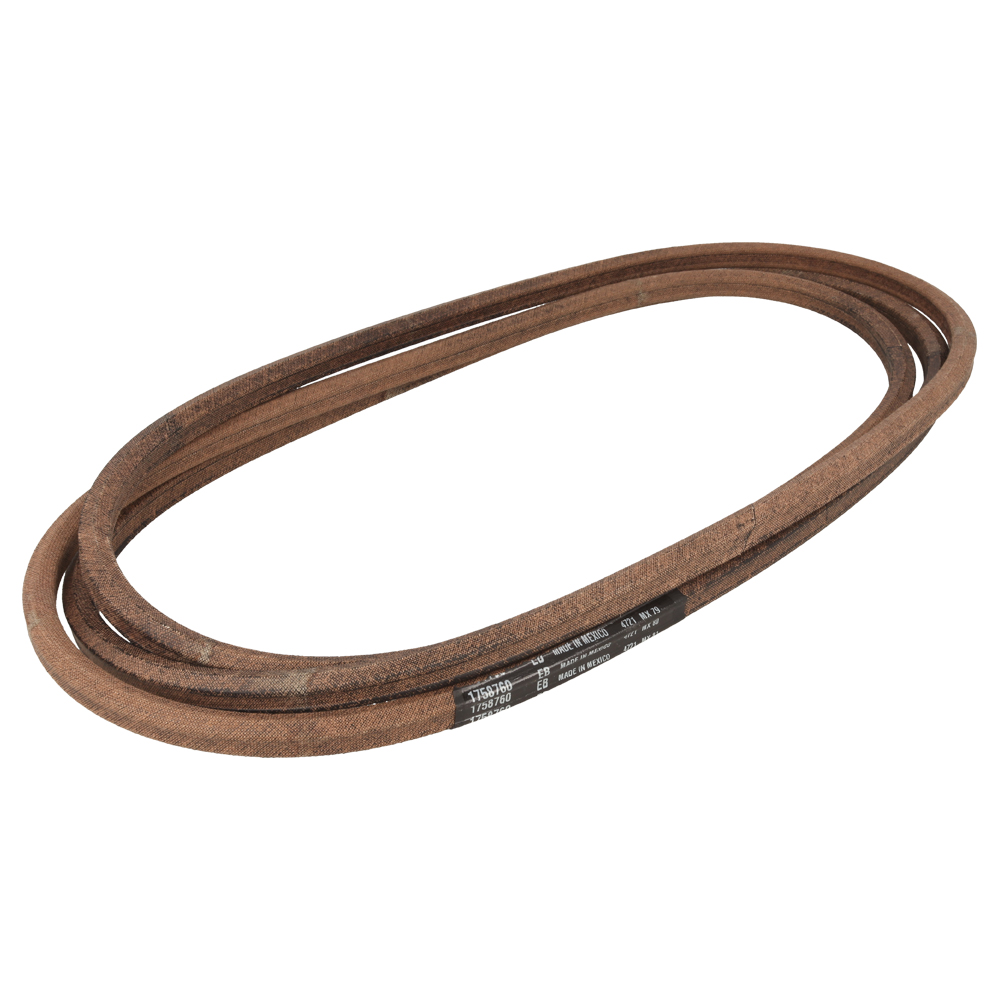

150	SN1758760YP Available to backorder	Belt	£95.66 £79.72
160	BP165X157MA Available to backorder	Extension Spring	£21.64 £18.03
170	SN885845BMYP Available to backorder	Idler	£34.46 £28.72
180	SN704128 Available to backorder	Washer	£3.12 £2.60
190	BP885937YP Available to backorder	Idler Pulley	£27.90 £23.25
200	SN703406 Available to backorder	3/8-16X1.5 Capscrew	£3.26 £2.72
210	BP1752802YP Available to backorder	Shldr	£5.12 £4.27
220	SN1758758BMYP Available to backorder	Idler Mount Bracket	£45.34 £37.78
230	SN1758757BMYP Available to backorder	Belt Guide Mount Plate	£21.29 £17.74
