Snapper NX90S-2691243-00 Drive Group

Name: Snapper NX90S-2691243-00 Drive Group
SKU: nx90s_2691243_00_drive_group-group
Price: 3.14 GBP
Availability: InStock

Part No. nx90s_2691243_00_drive_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

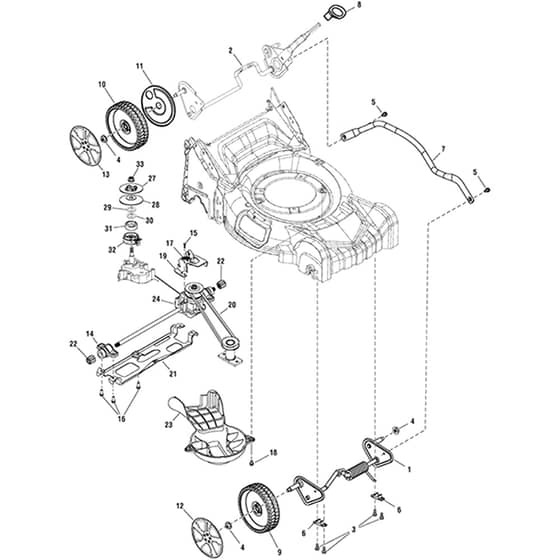

Snapper NX90S-2691243-00 - Drive Group - Parts Diagram

	Part No.	Details
1	BP704819 Available to backorder	Front Axle	£41.14 £34.28
2	BP704818 Available to backorder	Rear Axle	£51.41 £42.84
3	SY7091081SM Available to backorder	1/4-15X3/4	£3.77 £3.14
4	SY5025394SM Available to backorder	Hex Flange	£4.03 £3.36
6	BP703524 Available to backorder	Lock Bushing	£11.52 £9.60
7	BP704707 Available to backorder	Tube	£30.06 £25.05
8	BP703648 Available to backorder	Black Knob	£14.86 £12.38
8	BP704780 Available to backorder	Red Knob	£12.89 £10.74
9	BP704977 Available to backorder	200 X 49 Wheel	£40.06 £33.38
10	SN704807 Available to backorder	Drive Wheel	£66.12 £55.10
11	BP703503 Available to backorder	Wheel Dust Cover	£39.19 £32.66
12	BP704751 Available to backorder	Front Hubcap	£11.74 £9.78
13	BP704750 Available to backorder	Rear Hubcap	£18.97 £15.81
14	BP703469 Available to backorder	Bearing Assembly	£19.12 £15.93
15	BP703479 Available to backorder	Hex Washer Head	£10.51 £8.76
16	BP1751399YP Available to backorder	1/4-15 X 1-1/4 Screw	£4.49 £3.74
17	BP703516 Available to backorder	Spring	£12.54 £10.45
18	BP703714 Available to backorder	1/4-20 X 1/2 Screw	£4.20 £3.50
19	BP704694 Available to backorder	Bracket	£20.80 £17.33
20	BP706869 Available to backorder	Belt	£58.69 £48.91
21	BP703542 Available to backorder	Support	£39.62 £33.02
22	BP704782 Available to backorder	9 Tooth Gear	£13.18 £10.98
23	BP704814 Available to backorder	Rear Cover	£25.92 £21.60
24	BP706870 Available to backorder	Transmission	£288.05 £240.04
27	BP704697 Available to backorder	Upper Pullye Half	£20.17 £16.81
28	BP704696 Available to backorder	Lower Pulley Half	£21.17 £17.64
29	BP704730 Available to backorder	20 Shim	£8.34 £6.95
31	BP704728 Available to backorder	Bearing	£14.59 £12.16
33	BP704783 Available to backorder	Lock Nut	£10.28 £8.57
