Snapper NX80 2691208-14 Handle Group

Name: Snapper NX80 2691208-14 Handle Group
SKU: nx80_2691208_14_handle_group-group
Price: 2.24 GBP
Availability: InStock

Part No. nx80_2691208_14_handle_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Snapper NX80 2691208-14 - Handle Group - Parts Diagram

	Part No.	Details
1	BP5025145X8SM Available to backorder	5/16-18X1.000	£3.26 £2.72
2	SN703463 Available to backorder	Gr5	£2.69 £2.24
3	BP67885GS Available to backorder	Nylock	£3.12 £2.60
4	BP704774 Available to backorder	Cable Clip	£9.26 £7.72
5	BP703781 Available to backorder	A6.4 Washer	£8.54 £7.12
6	BP703522 Available to backorder	1/4-20 Screw	£12.89 £10.74
7	BP704729 Available to backorder	Shoulder Bolt	£8.34 £6.95
8	BP704695 Available to backorder	Eye Bolt	£12.25 £10.21
9	BP704706 Available to backorder	Upper Handle	£30.49 £25.41
10	BP704708 Available to backorder	Lower Handle	£47.74 £39.78
11	BP704777 Available to backorder	5/16-18 Wing Knob	£10.37 £8.64
12	BP704779 Available to backorder	Wing Knob	£11.15 £9.29
13	BP704715 Available to backorder	Control Bail	£34.55 £28.79
14	BP704718 Available to backorder	Drive Bail	£36.35 £30.29

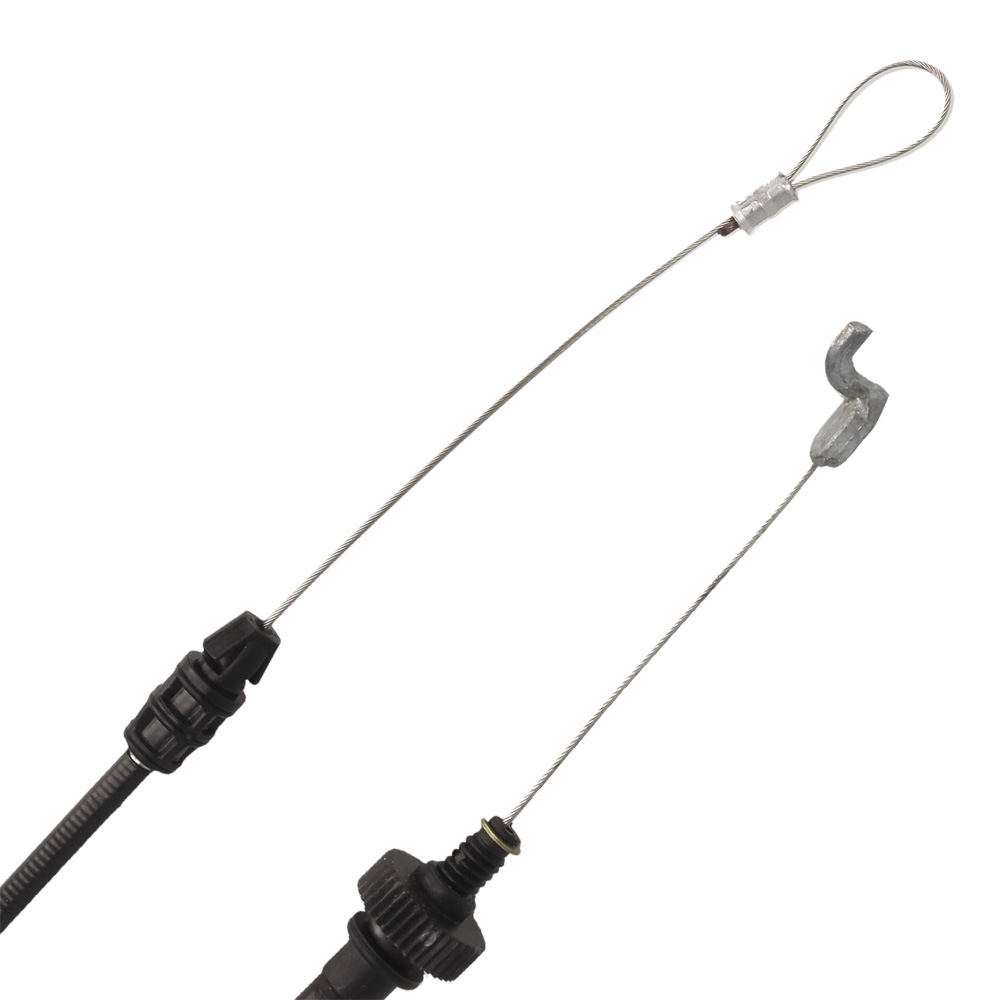

15	SN704719 Available to backorder	Drive Cable	£73.44 £61.20
16	BP704721 Available to backorder	Control Cable	£37.37 £31.14
17	BP704724 Available to backorder	Speed Select Cable	£42.83 £35.69
18	BP704811 Available to backorder	Upper Control Housing	£31.00 £25.83
19	BP704790 Available to backorder	Screw	£10.28 £8.57
20	BP704788 Available to backorder	Screw	£7.54 £6.28
21	BP704773 Available to backorder	Speed Actuator	£17.89 £14.91
22	BP704771 Available to backorder	Lower Control Housing	£19.69 £16.41
23	BP704736 Available to backorder	Shift Spring	£9.49 £7.91
24	BP704693 Available to backorder	Rack Plate	£16.16 £13.47
25	BP704770 Available to backorder	Speed Select Lever	£16.22 £13.52
26	BP704778 Available to backorder	Grip	£15.49 £12.91
